Vastex V2000 Heavy-Duty Screen Printing Press with Side Clamps – Built for Maximum Stability & Production
Vastex

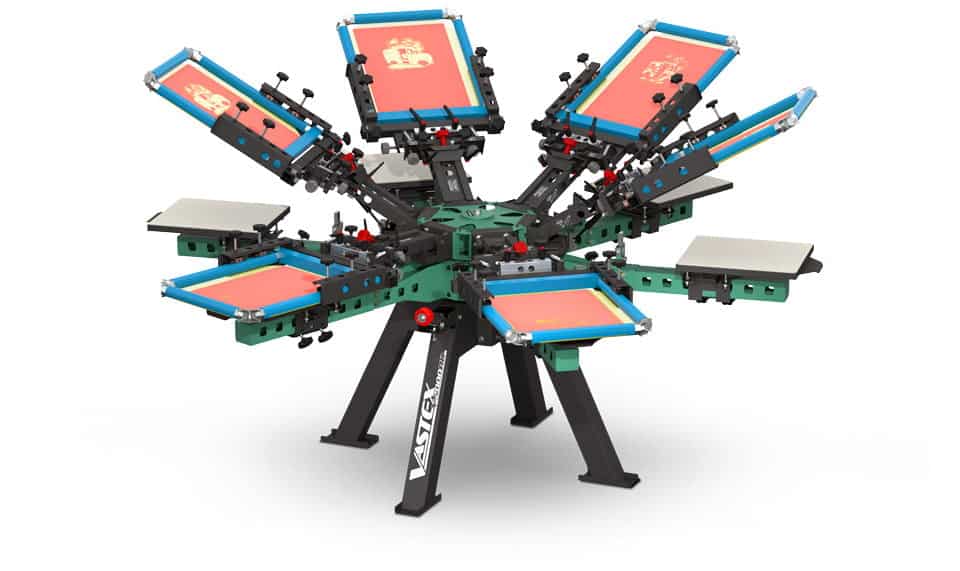

The Vastex V-2000HD with Fixed Side Clamps is the side-clamp version of Vastex’s industrial manual flagship — built for team apparel, numbering, player names, and specialty vertical prints. Fixed side clamp heads ship in three depths (8″, 12″, or 30″) and two screen widths (22″ or 26″). All the precision of the V-2000HD platform — zero-backlash micro-registration, all-heads-down printing, never-warp steel pallets, 6-way screen leveling — optimized for side-clamp workflows. 30″ clamp heads ship with double gas springs included. Compatible with VRS pin registration systems. Expandable 1 to 10 colors and 1 to 10 stations. Made in USA.
Price range: $1,430.00 through $15,837.00
Description
Vastex V-2000HD Heavy-Duty Screen Printing Press — Fixed Side Clamps
The industrial manual press configured for team apparel, numbering, and specialty vertical prints. Fixed side clamp heads in 8″, 12″, or 30″ depths — with 22″ or 26″ maximum screen width. All the precision, durability, and expandability of the V-2000HD platform — optimized for side-clamp workflows. Made in USA. 2-year warranty.
The Vastex V-2000HD with Fixed Side Clamps is the side-clamp version of Vastex’s industrial manual flagship. Every head comes from the factory with a dedicated side clamp — no swapping, no setup, no accessory install. The chassis, rotor, steel pallets, micro-registration, and all-heads-down printing are identical to the rear-clamp V-2000HD. The only difference is how the screen is held — and for team apparel shops, numbering operations, and print shops running long vertical graphics, that difference is a meaningful productivity gain.
Which V-2000HD Is Right for Your Shop?
The V-2000HD platform scales across every stage of a screen printing business. Use this quick guide to identify the right starting configuration — and remember, every V-2000HD is expandable, so you can always add stations and colors later.
V2HD-11-T or V2HD-14-T Tabletop
Tabletop rotary, ships UPS on the 1/1, quick setup. Upgrade to a 4-station floor press any time by adding legs and stations.
V2HD-44 or V2HD-46 Rotary Floor Press
The sweet spot — 4-station rotary handles most multi-color jobs with flash on one head. Upgrades to 6 or 8 colors without buying a new press.
V2HD-66 or V2HD-88 Rotary Floor Press
All-heads-down design means 2 operators can run the press in parallel. Serious multi-color capability for complex artwork, simulated process prints.
V2HD-1010 or Fixed Side Clamp
10-color for high-end work and simulated process. Fixed side clamp for shops focused on team apparel, jerseys, player names, or long vertical graphics.
📞 Talk to a Vastex Equipment Expert
The V-2000HD has nine base configurations and dozens of upgrade paths. Before you buy, talk to one of our equipment experts to spec the right configuration, size up pallets and accessories, and lock in financing. No pressure, just straight answers.
Why Buy Your Vastex from River City Supply
Vastex builds incredible presses. Where you buy them from shapes the entire ownership experience — pre-sale spec help, install support, accessories, replacement parts, and the partner you call when something needs attention five years from now. Here is why shops across the country buy their Vastex equipment from River City Supply.
✔ Authorized Vastex Dealer
Factory-direct authorized Vastex dealer. Full Vastex manufacturer warranty honored on every press we sell. Genuine Vastex parts and accessories. Direct factory support lines when you need them.
🏷 Same or Better Than Direct Pricing
Authorized Vastex dealer pricing matches factory-direct pricing — and we frequently beat it with bundle discounts, accessory packages, and promotional pricing Vastex does not run directly. Zero markup penalty for choosing a dealer. You get the same price plus our support, expertise, and complete shop ecosystem included.
🌟 Serving Screen Printers Since 2008
River City Supply has been outfitting screen printing shops for over 17 years. We have seen what breaks, what lasts, and what actually makes a shop profitable. You talk to people who have been in the industry — not a call center.
📍 Texas-Based, Ships Nationwide
Located at 11915 Starcrest Dr in San Antonio, TX. Nationwide LTL freight delivery direct from Vastex, and same-day shipping on in-stock accessories and parts when ordered before 3:30 PM CT. Local pickup available for Texas customers.
💬 Real Expert Support
Chat, email, and both local and toll-free phone — all answered by the same team that actually runs equipment. No ticket queues, no escalations, no script-reading. Call (512) 454-0505 or chat during business hours.
📦 Complete Shop Ecosystem
Not just presses — we also carry flash dryers, conveyor dryers, exposure units, pallets, inks, emulsions, squeegees, screens, and every replacement part on one invoice. One dealer, one support line, one relationship.
💰 Financing + Section 179
Equipment financing with monthly payments available. Section 179 tax advantages may apply. We help you structure the purchase to minimize out-of-pocket and maximize year-end tax benefit.
Built to Last a Lifetime — Side Clamp Feature Overview
Fixed Side Clamp Head Design
Replaces the standard rear clamp head with a dedicated side clamp configuration. The side clamp holds the screen from the side edge instead of the rear — ideal for printing player names, numbers, vertical text, and graphics that run end-to-end.
Three Clamp Depth Options
Choose 8″, 12″, or 30″ clamp depth. 8″ is the standard replacement for rear clamp heads. 12″ accommodates most commercial jersey work. 30″ is purpose-built for printing full player names and long vertical graphics.
Two Screen Width Options
Maximum screen width is 22″ or 26″ (56 or 66 cm). Choose based on the screens already in your shop — the 26″ option handles oversized screens without switching back to rear clamps.
Double Gas Springs on 30″ Heads
The 30″ deep side clamp heads ship with VGS-DB Double Gas Springs included — required to support the added leverage of the longer clamp. No accessory upgrade needed.
Zero-Backlash Micro-Registration
Same precision micro-registration as the rear clamp V-2000HD. Spring-loaded, anti-backlash, direct-drive — 1/4 turn moves the head exactly .015″ every time, in a straight line, with no slop or play.
All Heads Down Printing
Fixed-head design means every side clamp print arm can be in the down position simultaneously. Multiple operators can print in parallel — essential for high-volume team apparel and numbering work.
VRS Pin Registration Compatible
Vastex’s VRS pin registration system has a dedicated side-clamp variant that works with any side clamp screen printing press. Register positives to screens off-press, then drop the registered screens onto the side-clamp heads — all colors in register in under a minute.
Expandable 1 to 10 Colors
Same expandable chassis as the rear clamp V-2000HD. Start with a 1-station tabletop and scale to a 10-color/10-station rotary floor press. The fixed side clamp configuration is available in every standard model.
What’s Included with Every Fixed Side Clamp V-2000HD
Press Chassis
Heavy-gauge steel legs, 2.75″ precision-ground center shaft, 3″ square steel rotor arms, heavy-gauge steel rotor assemblies. Ball bearings on all critical moving parts.
Fixed Side Clamp Print Heads
One side clamp print head per color position in your specified depth (8″, 12″, or 30″) and screen width capacity (22″ or 26″). Wrench-free leveling, anti-backlash micro-registration, gas spring lifter.
Steel Pallets with Rubber Tops
One pallet per station. Standard 15″ x 17″ (38 x 43 cm) size. Heat- and solvent-resistant rubber top. Quick-release corner clamp pallet arm with side ruler and neck guide.
Gas Springs (Single or Double)
8″ and 12″ depth heads ship with single gas springs. 30″ depth heads ship with VGS-DB Double Gas Springs included — required for the added leverage.
Wrenchless Adjustment System
Repositionable locking levers on every head — lift to select position, lower to lock. No tools required for any setup or adjustment.
Operation Manual & Support
Complete Vastex operation manual, assembly instructions, and lifetime technical support from Vastex’s US-based team.
See the V-2000HD In Action
Why Side Clamps — and When to Use Them
Perfect for Team Apparel
Player names, numbers, chest graphics with vertical text, and any design that runs end-to-end on the shirt register better when the screen is clamped from the side. The rear of the pallet stays completely clear.
Longer Clamp Depth = Bigger Screens
The 30″ deep side clamps accept screens long enough for full team rosters printed in a single pass — player name across the upper back, number below, no re-registering mid-job.
Clear Rear of Pallet
With the screen clamped on the side, there’s nothing behind the shirt. Easier to load, easier to flash, easier to pull long prints. Numbering systems, large back prints, and player names all benefit.
Works Alongside DiGiT Numbering
Run side-clamp heads for team names and DiGiT-mounted rear-clamp heads for numbers on the same rotary — the V-2000HD’s expandable head system lets you mix configurations station by station.
Fixed Side Clamp vs. Rear Clamp — Which Is Right for Your Shop?
Fixed vs. Removable Side Clamps
The fixed side clamp V-2000HD ships with dedicated side clamp heads from the factory — no swapping, no setup. The alternative is a rear-clamp V-2000HD with removable clamp-on side clamp attachments, which give you flexibility to switch back and forth but take 20 seconds to install/remove. If side clamping is your primary workflow, go fixed. If you do both, go removable.
Pin Registration Advantage
The VRS pin registration system’s side-clamp variant is a major productivity multiplier for side-clamp shops. Register positives to screens off-press on the VRS pinboard, then drop the registered screens into the side-clamp heads with pin locators — all colors in register in under 60 seconds. Saves 15 to 30 minutes on every multi-color setup.
Screen Width Limits
Side clamps accept screens up to 22″ or 26″ wide depending on tube selection. On 8- and 10-station rotary presses, practical working width is limited when all heads are loaded — wider screens fit when neighboring heads are empty.
Compatible Accessories
All V-2000 pallets, rubber tops, pallet adhesives, and attachments work identically with the fixed side clamp configuration. The only differences are the print heads themselves.
Made in USA
Same manufacturing, same 60+ years of Vastex experience, same Bethlehem, Pennsylvania factory. Fixed side clamp V-2000HDs ship alongside rear clamp models on the same production line.
Financing Available
Equipment financing through our partner covers all V-2000HD side clamp configurations. Section 179 tax deduction may apply. See financing options →
All V-2000HD Configurations Available with Side Clamps
| Model | Colors × Stations | Type | Standard Dia. | Max Screen Width (std) | Unit Weight | Fits 33″ Door |
|---|---|---|---|---|---|---|
| V2HD-11-T | 1 × 1 | Tabletop (non-rotary) | 51″ (130 cm) | 23″ (58 cm) | 73 lb (33 kg) | Yes (UPS) |
| V2HD-14-T | 4 × 1 | Tabletop rotary | 53″ (135 cm) | 23″ (58 cm) | 134 lb (61 kg) | Yes (w/ disassembly) |
| V2HD-FP-11 | 1 × 1 | Floor press (all-over print) | 87″ (221 cm) | 39″ (99 cm) | 193 lb (88 kg) | Yes (w/ disassembly) |
| V2HD-FP-14 | 4 × 1 | Floor press (all-over) | 91″ (231 cm) | 39″ (99 cm) | 250 lb (113 kg) | Yes (w/ disassembly) |
| V2HD-44 | 4 × 4 | Rotary floor press | 91″ (231 cm) | 25″ (64 cm) | 400 lb (182 kg) | Yes (w/ disassembly) |
| V2HD-46 | 6 × 4 | Rotary floor press | 97″ (246 cm) | 27″ (69 cm) | 473 lb (214 kg) | No — dock door |
| V2HD-66 | 6 × 6 | Rotary floor press | 99″ (252 cm) | 27″ (69 cm) | 550 lb (250 kg) | Yes |
| V2HD-88 | 8 × 8 | Rotary floor press | 109″ (277 cm) | Unlimited w/ double gas springs | 750 lb (340 kg) | Yes |
| V2HD-1010 | 10 × 10 | Rotary floor press | 131″ (333 cm) | Unlimited w/ double gas springs | 1,075 lb (488 kg) | Yes |
The fixed side clamp configuration is available in every V-2000HD base model. Side clamp depth (8″, 12″, 30″) and maximum screen width (22″ or 26″) are specified at order time. On 8- and 10-station models, maximum screen width is 21″ (53 cm) regardless of clamp depth.
Side Clamp Depth & Screen Width Options
| Clamp Depth | Use Case | 22″ Screen Width SKU | 26″ Screen Width SKU | Gas Spring |
|---|---|---|---|---|
| 8″ (20 cm) | Standard side clamp — direct rear-head replacement | SC-22 | SC-26 | Standard (VGS-1100) |
| 12″ (30 cm) | Most commercial jersey work, team names | SC-22-12 | SC-26-12 | Standard (VGS-1100) |
| 30″ (76 cm) | Full player names, long vertical graphics | SC-22-30 | SC-26-30 | Double (VGS-DB) included |
Side clamps can also be ordered as removable clamp-on attachments for rear-clamp V-2000HD presses. Call (512) 454-0505 for configuration help.
Production Capacity Expectations by Model
Output varies enormously based on operator skill, ink type, flash time, print complexity, and shop workflow. The numbers below are realistic ranges for a trained operator printing standard plastisol on cotton tees with appropriate flash dwell time. Water-based and discharge inks will be slightly slower; simple 1-color prints with experienced operators can exceed these rates.
| Model | 1-Color Rate | 4-Color w/ Flash | 6-Color w/ Flash | Typical Operators |
|---|---|---|---|---|
| V2HD-11-T (1/1 Tabletop) | 40 to 60 /hr | Not applicable | Not applicable | 1 operator |
| V2HD-14-T (4/1 Tabletop) | 50 to 80 /hr | 30 to 45 /hr | Not applicable | 1 operator |
| V2HD-FP-11 (1/1 Floor) | 50 to 80 /hr | Not applicable | Not applicable | 1 operator |
| V2HD-FP-14 (4/1 Floor) | 50 to 80 /hr | 30 to 45 /hr | Not applicable | 1 operator |
| V2HD-44 (4/4 Rotary) | 60 to 100 /hr | 40 to 60 /hr | Not applicable | 1 operator |
| V2HD-46 (6/4 Rotary) | 60 to 100 /hr | 40 to 60 /hr | 25 to 40 /hr | 1 to 2 operators |
| V2HD-66 (6/6 Rotary) | 80 to 120 /hr | 50 to 75 /hr | 35 to 55 /hr | 1 to 2 operators |
| V2HD-88 (8/8 Rotary) | 80 to 120 /hr | 60 to 90 /hr | 45 to 70 /hr | 2 operators optimal |
| V2HD-1010 (10/10 Rotary) | 80 to 120 /hr | 60 to 90 /hr | 50 to 80 /hr | 2 to 3 operators |
Rates assume trained operators, properly tensioned screens, appropriate flash dryer capacity, and pre-registered screens (ideally via VRS pin registration). Team apparel work with DiGiT numbering typically runs at 30-50 shirts/hour regardless of press size. Simulated process and 8+ color jobs benefit most from multiple operators and larger-capacity dryers. Contact us if you want help matching press capacity to your target production volume.
📈 Rule of thumb for sizing
Most shops underbuy. If you are consistently doing 4-color work, skip the 4-station and go to a 6-station (one head for flash, one head for spare/highlight). If you are doing team apparel with numbers, budget for both the press AND a DiGiT numbering system or side-clamp setup from day one — retrofitting later is always more expensive than buying right the first time.
Rear Clamp vs. Fixed Side Clamp — Which Should You Buy?
The V-2000HD is available in two clamp configurations. They share the same chassis, precision, and expandability — the difference is how the screen is held during printing, which has real implications for what kinds of work each press is best at.
| Feature | Rear Clamp V-2000HD | Fixed Side Clamp V-2000HD |
|---|---|---|
| Clamping Method | Screen held from the back edge by 12″ steel clamp bar | Screen held from the side edge by 8″, 12″, or 30″ clamp |
| Best For | General multi-color garment work, simulated process, logo prints, pockets, all-over designs | Team apparel, player names, numbering, vertical graphics, long designs |
| DiGiT Numbering Jig | Yes — clamps into rear head in 20 seconds | Not directly — requires dedicated rear-clamp heads or hybrid setup |
| VRS Pin Registration | Standard rear-clamp VRS kit | Dedicated side-clamp VRS kit (works with any side clamp press) |
| Screen Width Flexibility | Up to 24″ wide with optional removable side clamps | 22″ or 26″ max (fixed at order time) |
| Setup Flexibility | Most flexible — can add removable side clamps for hybrid use | Dedicated side clamping — no tool changes between jobs |
| Typical Buyer | General screen printing shops, first-time commercial press buyers | Athletic/team apparel specialists, custom jersey shops |
| Can Be Upgraded Later? | Yes — add removable clamp-on side clamps any time | Yes — side clamp heads can be replaced with rear-clamp heads at head-level |
| Price | $1,304 to $14,575 depending on configuration | $1,430 to $15,837 depending on configuration |
Both presses share the same V-2000HD chassis, steel pallets, gas spring lifters, micro-registration system, all-heads-down printing, and 25-year pallet warranty. The only real difference is how the screen is held. Most shops choose rear clamp for maximum flexibility and add side clamps as needed. Shops that exclusively do team apparel often go fixed side clamp.
→ See the Rear Clamp V-2000HD
⚠ 30″ Clamps Need Double Gas Springs
The 30″ deep side clamp heads ship with VGS-DB Double Gas Springs included — but if you upgrade an existing 8″ or 12″ side clamp press to 30″ clamps later, you must also upgrade the gas springs. Factor this in when speccing upgrades.
⚠ Screen Clamp Depth vs. Screen Size
Clamp depth is the length of the side clamp rail — it must be shorter than your screen’s outside frame dimension on the clamped side. 8″ depth fits standard 20×24 screens. 30″ depth is needed for 23×31 and larger screens when clamped from the side.
⚠ DiGiT Numbering Is Rear-Clamp
The DiGiT athletic numbering system clamps onto rear-clamp heads, not side-clamp heads. On a fixed side clamp V-2000HD, you can dedicate specific stations as rear-clamp for DiGiT use — spec the press with mixed head types at order time.
⚠ Pin Registration Is Highly Recommended
Side-clamp presses benefit enormously from pin registration. Add a Vastex VRS system with side-clamp pinboard to cut multi-color setup time by 50 to 80%. Do not buy a side-clamp press without budgeting for the VRS.
Shipping, Delivery & Installation
V-2000HD presses ship from Vastex’s manufacturing facility in Bethlehem, Pennsylvania. Most configurations require LTL freight (commercial trucking) delivery — the exception is the V2HD-11-T 1-color tabletop, which ships via UPS in two boxes.
LTL Freight (Most Models)
Palletized delivery via commercial freight carrier. Truck delivery to a loading dock is standard. If you don’t have a dock, liftgate delivery can be arranged for an additional fee. Inside delivery and white-glove placement are available as premium options — ask us for a quote.
UPS Ground (V2HD-11-T Only)
The 1-color/1-station tabletop press ships UPS in two boxes — no freight or liftgate required. Residential delivery works fine.
Dock Door Requirements
Most V-2000HD models fit through a standard 33″ doorway with disassembly. The V2HD-46 is the exception — it requires a dock door or 36″+ opening even disassembled. Measure your delivery path before ordering.
Assembly Required
V-2000HD presses ship crated and require assembly on site. The operation manual includes step-by-step assembly instructions. Most shops complete assembly in 2-4 hours with a helper, depending on the model.
Optional Installation Support
We offer installation and setup consulting for shops that want hands-on help. Includes assembly guidance, leveling, micro-registration tuning, and first-job setup. Ask for details when you request a quote.
⚠ Delivery Times Vary
Actual delivery timing depends on your configuration, current Vastex build queue, freight carrier scheduling, and your delivery location. Build times for custom-configured presses can run anywhere from a few business days for in-stock models to several weeks for larger configurations. For an accurate delivery estimate on your exact configuration, please chat, email, or call us — we’ll check current Vastex lead times and freight availability before you place your order.
Pair Your Fixed Side Clamp V-2000HD with Vastex Accessories
Every V-2000HD side clamp press accepts Vastex’s full catalog of specialty pallets, pin registration systems, and production equipment. The VRS pin registration system is strongly recommended for side-clamp workflows — it pays for itself inside the first month on multi-color setup time savings.
Registration (Highly Recommended for Side Clamp)
Pallets, Attachments & Rubber
Hybrid Setups: Add Rear-Clamp Capability
Pair Your Press with Flash & Exposure Equipment
Conveyor Dryers for Production Curing
Related Resources
Everything else you might want to look at while you spec your V-2000HD.
Ready to Price Your Side Clamp V-2000HD?
Side clamp configurations come in multiple screen widths (22″ or 26″) and clamp depths (8″, 12″, or 30″), plus all nine base V-2000HD model sizes and expandable upgrade paths. We’ll help you spec exactly the right setup for your team apparel or specialty workflow.
Technical Specifications
Vastex V-2000HD Fixed Side Clamp — Common Specifications
| Warranty | 2-year manufacturer’s defect warranty on the machine (Vastex) • 25-year non-warping warranty on steel pallets |
|---|---|
| Pallet Material | Never-warp steel with replaceable rubber tops |
| Head Lifting | Gas spring with 16-position variable lift strength |
| All Heads Down | Yes — fixed-head design, all arms print simultaneously |
| Micro-Registration | Advanced, wrenchless, anti-backlash (zero slop or play) |
| Leveling System | Advanced 6-way screen leveling with wrench-free adjustment |
| Rear Screen Clamps | 12″ (30 cm) wide steel, joined by a steel clamp bar for off-center clamping |
| Center Shaft | 2.75″ (6.9 cm) precision-ground center shaft |
| Rotor Arm | 3″ (7.6 cm) square steel rotor arm with ruler indicator (3.25″ on larger models) |
| Max Screen Weight (standard) | 8 lb (3.6 kg) |
| Max Screen Weight (double gas springs) | 30 lb (13.6 kg) |
| Max Screen Weight (HD head upgrade) | 50 lb (22.7 kg) |
| Pallet Height (standard legs) | 34.5″ (88 cm) |
| Pallet Height (with wheels) | 38.5″ (98 cm) |
| Max Standard Pallet (1-color/all-over) | 27″ x 32″ (69 x 81 cm) — larger custom available |
| Max Standard Pallet (multi-station) | 48″ x 40″ (122 x 102 cm) — larger custom available |
| Country of Manufacture | USA — Bethlehem, Pennsylvania |
| Side Clamp Depth Options | 8″ (20 cm), 12″ (30 cm), or 30″ (76 cm) |
| Max Screen Width | 22″ (56 cm) or 26″ (66 cm) — specified at order time |
| Gas Spring (8″ & 12″ heads) | VGS-1100 single gas spring |
| Gas Spring (30″ heads) | VGS-DB double gas spring included |
| VRS Pin Registration | Compatible — dedicated side-clamp VRS variant available |
Fixed Side Clamp SKU Reference
| Clamp Depth | 22″ Screen Width | 26″ Screen Width | Gas Spring Notes |
|---|---|---|---|
| 8″ (20 cm) | SC-22 | SC-26 | VGS-1100 standard |
| 12″ (30 cm) | SC-22-12 | SC-26-12 | VGS-1100 standard |
| 30″ (76 cm) | SC-22-30 | SC-26-30 | VGS-DB double included |
V-2000HD Configuration Comparison
| Model | Colors × Stations | Type | Standard Dia. | Max Screen Width (std) | Unit Weight | Fits 33″ Door |
|---|---|---|---|---|---|---|
| V2HD-11-T | 1 × 1 | Tabletop (non-rotary) | 51″ (130 cm) | 23″ (58 cm) | 73 lb (33 kg) | Yes (UPS) |
| V2HD-14-T | 4 × 1 | Tabletop rotary | 53″ (135 cm) | 23″ (58 cm) | 134 lb (61 kg) | Yes (w/ disassembly) |
| V2HD-FP-11 | 1 × 1 | Floor press (all-over print) | 87″ (221 cm) | 39″ (99 cm) | 193 lb (88 kg) | Yes (w/ disassembly) |
| V2HD-FP-14 | 4 × 1 | Floor press (all-over) | 91″ (231 cm) | 39″ (99 cm) | 250 lb (113 kg) | Yes (w/ disassembly) |
| V2HD-44 | 4 × 4 | Rotary floor press | 91″ (231 cm) | 25″ (64 cm) | 400 lb (182 kg) | Yes (w/ disassembly) |
| V2HD-46 | 6 × 4 | Rotary floor press | 97″ (246 cm) | 27″ (69 cm) | 473 lb (214 kg) | No — dock door |
| V2HD-66 | 6 × 6 | Rotary floor press | 99″ (252 cm) | 27″ (69 cm) | 550 lb (250 kg) | Yes |
| V2HD-88 | 8 × 8 | Rotary floor press | 109″ (277 cm) | Unlimited w/ double gas springs | 750 lb (340 kg) | Yes |
| V2HD-1010 | 10 × 10 | Rotary floor press | 131″ (333 cm) | Unlimited w/ double gas springs | 1,075 lb (488 kg) | Yes |
Shipping Weight & Dimensions by Model
| Model | Shipping Weight | Shipping Dimensions | UPS Shippable |
|---|---|---|---|
| V2HD-11-T | 120 lb (55 kg) UPS, or 281 lb (128 kg) freight | 2 UPS boxes OR 49″ x 45″ x 23″ freight | Yes (UPS) |
| V2HD-14-T | 281 lb (128 kg) | 49″ x 48″ x 23″ (124 x 122 x 58 cm) | No |
| V2HD-FP-11 | 350 lb (159 kg) | 54″ x 51″ x 50″ (137 x 130 x 127 cm) | No |
| V2HD-FP-14 | 412 lb (187 kg) | 54″ x 51″ x 58″ (137 x 130 x 147 cm) | No |
| V2HD-44 | 512 lb (232 kg) | 69″ x 48″ x 60″ (175 x 122 x 153 cm) | No |
| V2HD-46 | 685 lb (311 kg) | 69″ x 48″ x 60″ (175 x 122 x 153 cm) | No |
| V2HD-66 | 710 lb (322 kg) | 48″ x 48″ x 49″ (122 x 122 x 125 cm) | No |
| V2HD-88 | 800 lb (363 kg) | 48″ x 48″ x 49″ (122 x 122 x 125 cm) | No |
| V2HD-1010 | 1,025 to 1,423 lb (465 to 646 kg) | 48″ x 48″ x 49″ (122 x 122 x 125 cm) | No |
Shipping weights and dimensions are for continental US shipping. Ex-works Bethlehem, PA. Weights are approximate and may vary. Side clamp configurations ship at similar weights to rear clamp equivalents.
Documents
Need Help Choosing the Right Side Clamp Configuration?
📞 Talk to a Vastex Equipment Expert
The V-2000HD has nine base configurations and dozens of upgrade paths. Before you buy, talk to one of our equipment experts to spec the right configuration, size up pallets and accessories, and lock in financing. No pressure, just straight answers.
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Vastex V-2000HD Fixed Side Clamp — Frequently Asked Questions
📞 Talk to a Vastex Equipment Expert
The V-2000HD has nine base configurations and dozens of upgrade paths. Before you buy, talk to one of our equipment experts to spec the right configuration, size up pallets and accessories, and lock in financing. No pressure, just straight answers.
Reviews
Only logged in customers who have purchased this product may leave a review.
You May Also Like
Related products
-
Graphtec CE8000-130 Plus 50” Plotter – Quiet Performance for Wide-Format Cutting – FREE SHIPPING
$4,895.00 -
ROQPACK Automatic Packaging Machine – High-Speed Garment Bagging Made Effortless
-
ROQFOLD Automatic T-Shirt Folding Machine – High-Speed Folding for Apparel Production
-
ROQ Stack T-Shirt Stacking Machine (ROQSTACK) – Automatic Garment Stacking for High-Volume Production
Reviews
