Screen Printing Business Equipment Package – Vastex Shop 3

Name: Screen Printing Business Equipment Package – Vastex Shop 3 - River City Supply
Price: 36072.00 USD
Availability: InStock

Vastex

The Vastex Shop 3 is a complete, premium screen printing shop package built to start or scale a printing business — and it includes the press. Six pieces of genuine, USA-made Vastex equipment cover the whole process: expose and dry your screens, print up to eight colors on a V-2000 8-station press, flash between colors, and cure your finished garments. One matched, professional setup, ready to produce.

Press included
V-2000 8-color / 8-station

Print up to 8 colors
Expandable to 10 as you grow

Make your own screens
E-2000 exposure + Dri-Vault drying

Flash between colors
Air Flash + Auto Flash

Cure your prints
BigRed 4D 30″ conveyor dryer

One matched shop
Genuine Vastex, sized to work together

A complete shop to start your screen printing business — press included. Expose, print up to 8 colors, flash and cure. Questions? Call 512-454-0505.

$36,072.00

As low as $804 per month with ACG Equipment Financing

Category: Screen Printing Equipment Packages Tags: complete screen printing shop, conveyor dryer, EXPOSURE UNIT, screen printing business, screen printing equipment package, screen printing shop package, screen printing startup, start a screen printing business, V-2000 press, Vastex shop package

Description

Vastex Shop 3 — A Complete Shop to Start Your Screen Printing Business

Starting a screen printing business means buying a lot of equipment that all has to work together. The Vastex Shop 3 package solves that in one order: a premium, USA-made Vastex shop built around a V-2000 8-color / 8-station press. Expose and dry your screens, print vibrant multi-color designs, flash between colors, and cure production-ready garments — every stage covered by matched, professional gear.

Everything You Need to Print — In One Package

This is a true turnkey shop: the press is included, and so is the equipment to make screens, flash and cure. Here’s the full workflow and how the pieces fit together:

#	Stage	Included product	What it’s for
1	Expose your screens	Vastex E-2000 25×36 LED Exposure Unit	Burns your stencils: six high-output 30″ LED bars, an LCD touchscreen with up to 10 presets and a ring-blower vacuum (4–6s draw-down) expose crisp, detailed screens up to 25×36 — as sharp as metal halide at about 20% the power.
2	Dry your screens	Vastex Dri-Vault Drying Cabinet (VDC-2536)	A light-tight, heated, filtered-air cabinet that dries emulsion-coated screens dust-free in about 20 minutes — so screens are ready to expose fast and clean.
3	Print up to 8 colors	Vastex V-2000 8-Color / 8-Station Press	The heart of your shop: an industrial manual rotary press with eight print stations and eight colors, never-warp steel pallets, 100% wrench-free 6-way micro-registration and gas-lifter print heads for dead-on multi-color prints. Expandable up to 10 colors as you grow.
4	Flash between colors	Vastex Air Flash 18″×24″	A forced-air flash cure that gels plastisol between colors in as little as ~4 seconds and cures water-based and discharge inks — a 140 CFM heated-air unit with digital control, sized 18×24 for large prints.
5	Automate your flash	Vastex Auto Flash	Makes flashing hands-free: tap a foot pedal and the head rotates over the pallet, holds for your set dwell time, then retracts — consistent cures with no scorching or under-curing while you keep printing.
6	Cure your prints	Vastex BigRed 4D 30″ Conveyor Dryer	The final step: a 30″ forced-air infrared conveyor dryer with a dual-air system and digital dual-zone control that fully cures plastisol, water-based, discharge and DTF prints as garments come off the press.

Every product above is linked — click to see full details and specs.

The press is included — this is a complete multi-color shop. Built around the Vastex V-2000 8-color / 8-station press, it covers screen making, printing, flashing and curing. Add consumables and you’re in business.

What Each Piece Does

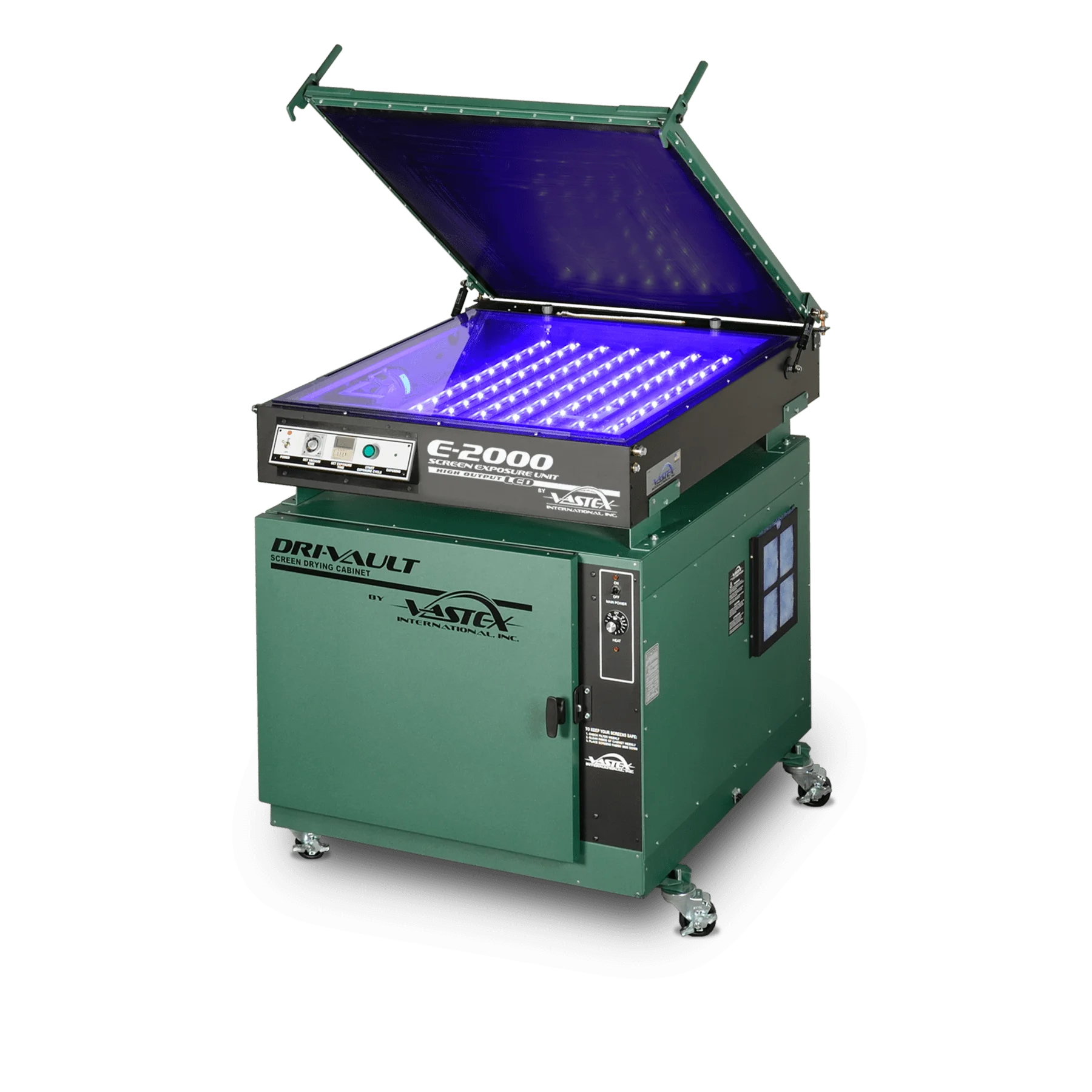

1 · Expose screens

The E-2000 exposure unit burns crisp, detailed stencils on screens up to 25×36 with a touchscreen and vacuum draw-down.

2 · Dry screens

The Dri-Vault cabinet dries emulsion-coated screens dust-free in about 20 minutes so they’re ready to expose.

3 · Print up to 8 colors

The V-2000 8-color press prints registered multi-color designs on never-warp steel pallets with wrench-free micro-registration.

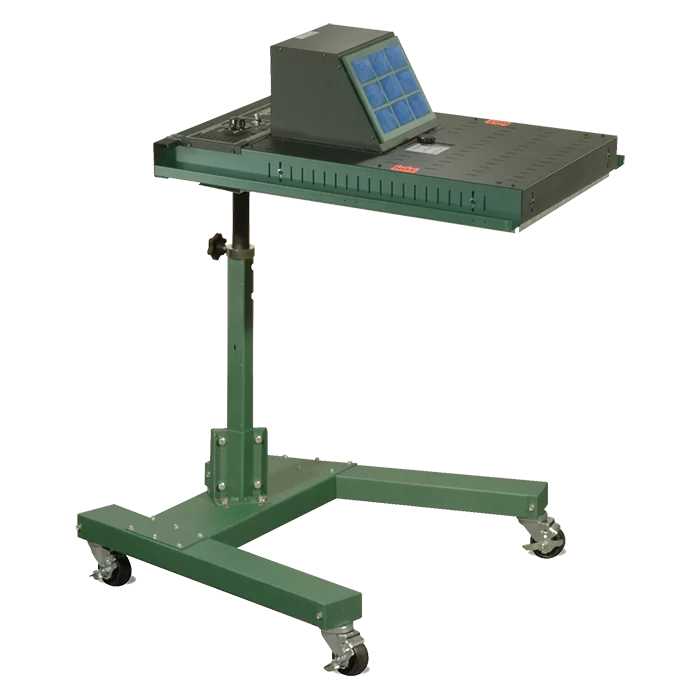

4 · Flash between colors

The Air Flash 18×24 gels plastisol between colors in seconds and cures water-based and discharge inks.

5 · Automate the flash

The Auto Flash rotates the flash over the pallet hands-free for consistent, foot-pedal-controlled cures.

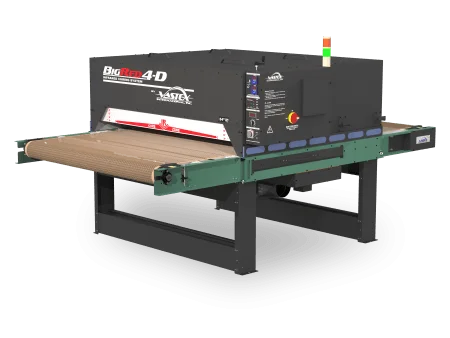

6 · Cure your prints

The BigRed 4D conveyor dryer fully cures plastisol, water-based, discharge and DTF prints coming off the press.

Why Buy From River City Supply?

Real screen printers. Real support. Genuine equipment.

Real printers on staff

Talk to people who run this gear — we’ll help you spec, install and dial in your whole shop. Call (512) 454-0505.

Genuine Vastex, full warranty

Authentic, USA-made Vastex equipment backed by the manufacturer warranties.

Fast shipping + 1-hour pickup

Ships quick, and in-stock items are ready for in-store pickup within an hour in Central Texas.

Financing available

Spread the cost of your whole shop — apply for equipment financing, or ask us how.

Everything under one roof

Presses, pre-press, curing and consumables — outfit your entire shop from one supplier.

Support after the sale

Family-run and here Monday–Friday, 9–5, long after your order ships.

Call (512) 454-0505

What else you’ll need

This package is the core equipment. To go live you’ll also want a way to make film positives (a film-positive printer), a washout booth to develop and reclaim screens, plus consumables: emulsion, screens & mesh, inks, squeegees, tape and garments. We stock it all — ask us to complete your list.

Want to buy piece by piece?

Every item is available on its own — click any product in the table above. But the package pairs them in one matched, ready-to-run shop so nothing is mismatched or missing, and it can be financed as a single setup.

Start your shop the right way

Tell us your space, power and goals — we’ll confirm this package fits, add the film, washout and consumables, and set you up with equipment financing to get you printing and selling.

Call 512-454-0505

Apply for financing

Spread the cost of your whole shop with simple equipment financing.

Explore Financing

Technical Specifications

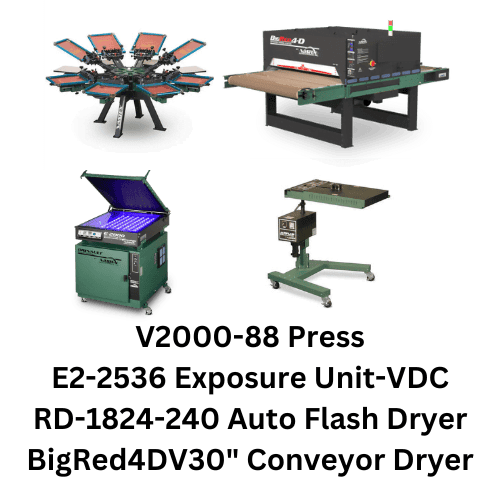

What’s Included in the Vastex Shop 3 Package

Six matched pieces of genuine Vastex equipment — a complete multi-color shop, press included. Each is linked to its full product page.

STEP 1 · EXPOSE YOUR SCREENS

Vastex E-2000 25×36 LED Exposure Unit

Burns your stencils: six high-output 30″ LED bars, an LCD touchscreen with up to 10 presets and a ring-blower vacuum (4–6s draw-down) expose crisp, detailed screens up to 25×36 — as sharp as metal halide at about 20% the power.

Key specs: Screens to 25×36 · 6 × 30″ HO LED · touchscreen presets · ring-blower vacuum

STEP 2 · DRY YOUR SCREENS

Vastex Dri-Vault Drying Cabinet (VDC-2536)

A light-tight, heated, filtered-air cabinet that dries emulsion-coated screens dust-free in about 20 minutes — so screens are ready to expose fast and clean.

Key specs: Holds ten 25×36 screens · dries in ~20 min · filtered airflow · variable heat

STEP 3 · PRINT UP TO 8 COLORS

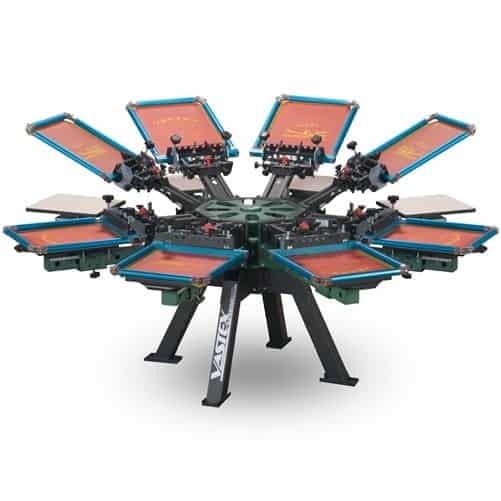

Vastex V-2000 8-Color / 8-Station Press

The heart of your shop: an industrial manual rotary press with eight print stations and eight colors, never-warp steel pallets, 100% wrench-free 6-way micro-registration and gas-lifter print heads for dead-on multi-color prints. Expandable up to 10 colors as you grow.

Key specs: 8 station / 8 color · never-warp steel pallets · 6-way micro-registration · gas lifters

STEP 4 · FLASH BETWEEN COLORS

Vastex Air Flash 18″×24″

A forced-air flash cure that gels plastisol between colors in as little as ~4 seconds and cures water-based and discharge inks — a 140 CFM heated-air unit with digital control, sized 18×24 for large prints.

Key specs: 18×24 · 140 CFM forced air · digital heat control · cures all inks

STEP 5 · AUTOMATE YOUR FLASH

Vastex Auto Flash

Makes flashing hands-free: tap a foot pedal and the head rotates over the pallet, holds for your set dwell time, then retracts — consistent cures with no scorching or under-curing while you keep printing.

Key specs: Foot-pedal automation · 0–30s dwell timer · fits Vastex flash units

STEP 6 · CURE YOUR PRINTS

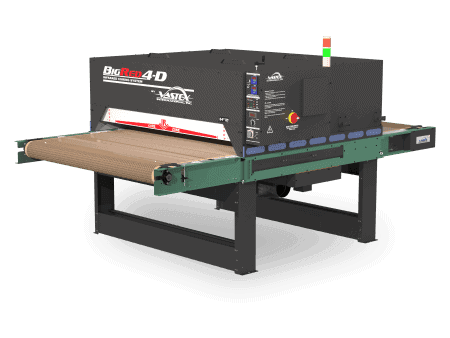

Vastex BigRed 4D 30″ Conveyor Dryer

The final step: a 30″ forced-air infrared conveyor dryer with a dual-air system and digital dual-zone control that fully cures plastisol, water-based, discharge and DTF prints as garments come off the press.

Key specs: 30″ belt · 11,400 W · dual-air system · digital dual-zone PID

Complete Your Shop

Film-Positive Printer
Print your own films Washout Booth
Develop & reclaim screens Emulsions & Stencil
Coat your screens Screens, Frames & Mesh
Frames to print with Screen Printing Inks
Plastisol & water-based Squeegees
Pull your prints

Technical Sheets / Safety Data Sheets / Documents

FREQUENTLY ASKED QUESTIONS

Vastex Shop 3 Package — Frequently Asked Questions

What is the Vastex Shop 3 package?

It’s a complete, premium screen printing shop package — a turnkey setup of genuine Vastex equipment built to start or scale a printing business. It includes the press plus everything to expose and dry screens, flash between colors, and cure finished prints.

Is the press included?

Yes — the Vastex V-2000 8-color / 8-station press is the centerpiece. It’s an industrial manual rotary press that prints up to eight colors and is expandable to ten.

What’s included?

Six pieces: the V-2000 8-color / 8-station press, the E-2000 25×36 exposure unit, the Dri-Vault drying cabinet, the Air Flash 18×24, the Auto Flash, and the BigRed 4D 30″ conveyor dryer.

Is this a good way to start a screen printing business?

Yes — it’s designed exactly for that. Instead of piecing together a shop from different brands, you get one matched, professional Vastex setup that covers the full production process, can be financed together, and is backed by our support.

What else do I need to start printing?

A way to make film positives (a film-positive printer), a washout booth to develop and reclaim screens, and consumables — emulsion, screens & mesh, inks, squeegees, tape and blank garments. Tell us your plans and we’ll build the full list.

How many colors can it print?

Up to eight colors on eight stations with the included V-2000, and the press is expandable to ten colors as your business grows.

What’s the difference between the Air Flash and the Auto Flash?

The Air Flash is the flash-cure unit that gels plastisol between colors and cures water-based/discharge inks. The Auto Flash is an automation upgrade that rotates the flash over the pallet hands-free via foot pedal for consistent cures.

Can I buy the pieces separately?

Yes — every item links to its own product page. The package simply bundles them as one matched shop so nothing is mismatched or forgotten, and it can be financed as a single setup.

Do you help set it up?

Absolutely. We’re screen printers ourselves — call (512) 454-0505 and we’ll help you spec your space and power, install everything, and get you printing.
