Vastex V-2000HD Screen Printing Press | Industrial Heavy-Duty Manual Press with Rear Clamps — 1 to 10 Color Expandable

Name: Vastex V-2000HD Screen Printing Press | Industrial Heavy-Duty Manual Press with Rear Clamps — 1 to 10 Color Expandable
SKU: VAS V2HD
Availability: BackOrder

Vastex

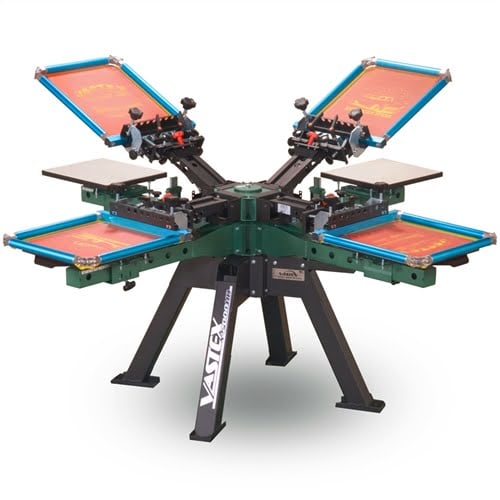

Vastex v2000 4 color 4 station screen printing press

The Vastex V-2000HD is an industrial-grade manual screen printing press engineered for shops that demand precision, durability, and long-term scalability. Fully expandable from a compact 1-station/1-color tabletop all the way to a 10-station/10-color floor press, every V-2000HD shares the same heavy-duty steel construction, 100% wrench-free adjustments, zero-backlash registration bearings, and never-warp steel pallets with rubber tops — assembled in the USA and backed by a 2-year warranty.

✓ 100% Wrench-Free Adjustments

✓ Zero-Backlash Registration Bearings

✓ Never-Warp Steel Pallets w/ Rubber Tops

✓ Prints All Heads Down

✓ Gas Lifters — 16-Position Variable Lift Strength

✓ 6-Way Screen Leveling

✓ Expandable: 1 to 10 Stations & Colors

✓ Made in the USA — 2-Year Warranty

This product is made to order and ships directly to you from Vastex. | For current lead times please call or message us.

Price range: $1,304.00 through $14,575.00

Model

1 Station 1 Color Table Top (Non-Rotary)
1 Station 4 Color Table Top
1 Station 6 Color Table Top
4 Station 4 Color With Legs
4 Station 6 Color With Legs
6 Color 6 Station With Legs
8 Color 8 Station With Legs
10 Color 10 Station With Legs
1 Station 1 Color (with 4 Color Rotary HUB)

Clear

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)

As low as $32 per month with

SKU: VAS V2HD Categories: Manual Screen Printing Presses, Screen Printing Equipment Tags: commercial screen printing press, heavy duty screen printing press, Made in USA screen printing press, manual screen printing press Vastex, multi color screen printing press, professional screen printing press, Vastex manual press, Vastex V2000 heavy duty press, Vastex V2000 rear clamp press, Vastex V2000 screen printing press

Description

VASTEX INTERNATIONAL • MADE IN USA

The V-2000HD: Industrial Manual Press Built for Serious Shops

Heavy-duty steel construction, advanced anti-backlash micro-registration, and full expandability from 1 station to 10 make the V-2000HD the last manual press you’ll ever need to buy.

Why the V-2000HD?

Heavy Duty Steel

Never-warp steel pallets with rubber tops and corner clamp pallet arm. 3.25″ square steel rotor arm with ruler indicator, heavy-gauge rotor assemblies throughout.

100% Wrench-Free

Independent head leveling, off-contact adjustment, micro-registration, and complete print head removal or installation — all without a wrench. Slash setup time on every job.

Advanced Micro-Registration

Embedded registration bearings positioned close to the screen (away from spray tack) with zero-backlash bearings on the screen arm pivot. Holds tight multicolor registration all day.

Prints All Heads Down

Fixed head design means every print arm can be down simultaneously for multi-hit, underbase, and flash sequences — no head-lifting interference with adjacent stations.

Expandable at Any Time

Start with a 1-station tabletop and upgrade to a 10-station/10-color floor press whenever your shop is ready. No need to buy a new machine as you grow.

Smart Gas Lifters

Gas spring lifters with 16-position variable lift strength and 12″ wide steel rear screen clamps joined by a clamp bar. Supports screens up to 8 lbs standard, 30 lbs with double gas springs, 50 lbs with HD head upgrades.

Available Models

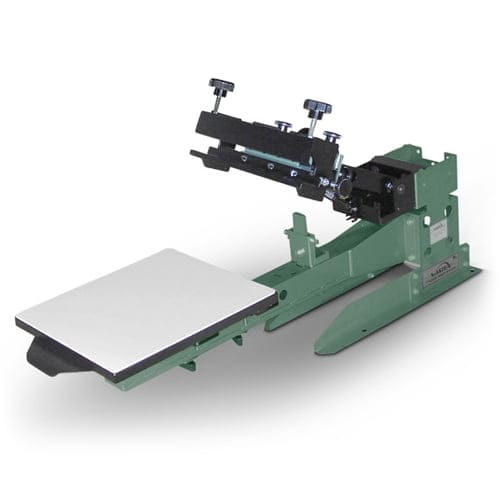

1/1

V2HD-11-T

1 Station / 1 Color
Tabletop Press

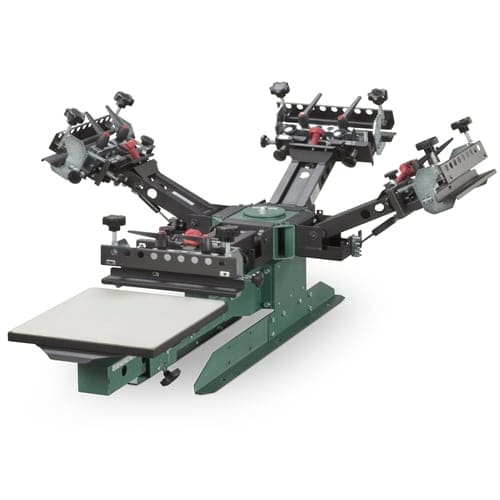

1/4

V2HD-14-T

1 Station / 4 Color
Tabletop Press

V2HD-FP-11

1 Station / 1 Color
Allover Press

V2HD-FP-14

1 Station / 4 Color
Allover Press

4/4

V2HD-44

4 Station / 4 Color
Rotary Floor Press

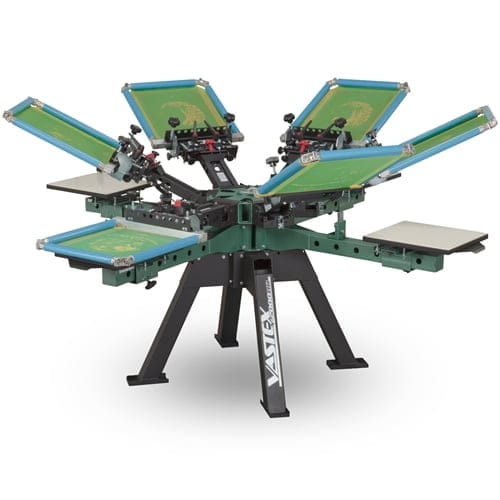

4/6

V2HD-46

4 Station / 6 Color
Rotary Floor Press

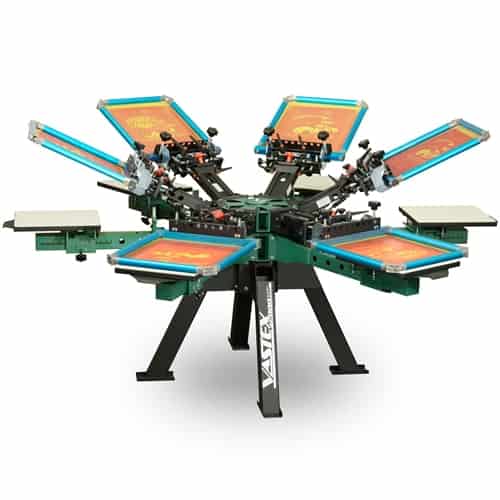

6/6

V2HD-66

6 Station / 6 Color
Rotary Floor Press

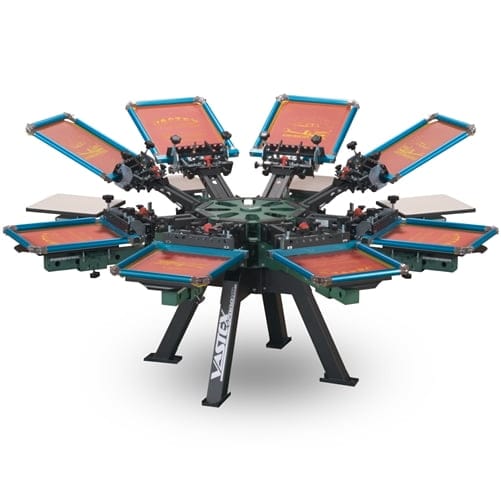

8/8

V2HD-88

8 Station / 8 Color
Rotary Floor Press

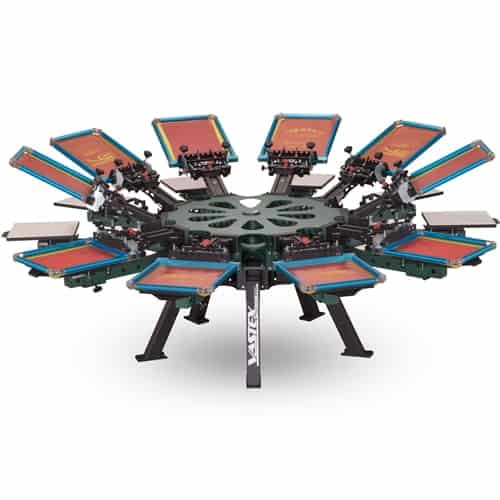

10/10

V2HD-1010

10 Station / 10 Color
Rotary Floor Press

See It in Action — Micro-Registration Demo

Built Different: Engineering That Matters

2.75″ Center Shaft

Precision-ground center shaft provides the stable foundation that keeps every station in perfect alignment under production pressure.

3.25″ Sq. Rotor Arm

Square steel rotor arm with ruler indicator — the stiffest rotor geometry in its class. Eliminates flex that causes misregistration on high-count jobs.

12″ Rear Screen Clamps

Wide steel rear clamps joined by a steel clamp bar allow off-center screen clamping. Accepts side clamp accessories in 20 seconds.

Elevated Pallets

Pallets sit elevated on the arm — no need to stretch shirts over the arm. Also compatible with quick-stretch jacket attachment for lined garments.

Zero Backlash Bearings

Ball bearings on the screen arm pivot eliminate the slop that creeps into registration over time. All critical moving parts ride on bearings.

6-Way Screen Leveling

Advanced 6-way leveling system with adjustable micro clamp levers. Dial in each head independently for perfectly even ink deposit across all stations.

Pallets & Accessories

🟢 Standard Shirt Pallets →

V2P-1311 (13″×11.5″) • V2P-1414 (14″×14″) • V2P-1517 Standard (15″×17″) • V2P-1017 Junior (10.5″×17″) • V2P-1721 Oversized (17″×21″) • V2P-2024 Jumbo (20″×24″). Never-warp steel, rubber tops, neck guide, quick release, 4-bolt arm included.

🟢 Sleeve, Leg & Mini Pallets →

Long Sleeve: V2P-SLS419/519/619 • Double Long Sleeve: V2P-DLS419/519 • Short Leg/Sleeve: V2P-SS39/49/59, V2P-LEG69 • Single Leg: V2P-LEG524/624 • Mini: V2PM-66, V2PM-98 (hoods, aprons, bandanas)

🟢 Vacuum Pallets →

18″×24″: V2-VAC120-1824 (120V), V2-VAC240-1824 (240V), V2-VAC-1824 (universal) • 26.5″×37.5″: V2-VAC120-2436 (120V), V2-VAC240-2436 (240V), V2-VAC-2436 (universal). For signs, transfers, paper & substrates that can’t use adhesive.

🟢 Specialty Pallets →

Koozie: V2P-KZ4 (4 standard), V2P-KZ8 (8 slim) • Wing: V2P-WG2118/2127 • Allover: V2P-AOP-XL • Tagless: V2P-TAGLESS w/ tops VP-H1/H2/H3 • Double Face Mask: V2-DM53 • Umbrella: V2P-UMB • Under Brim Vacuum: VAC-J-BRIM

🟢 Hat Printing Package →

V2C-CPB (base) + VC-CPS (screen holder, screen & squeegee). Includes hat pallet, screen arm extension, 9″×12″ hat screen (110 mesh), spring-loaded hold-down. Hat pallets: VP-H1 (5.13″×3″), VP-H2 (4.88″×3″), VP-H3 (3.56″×2.5″).

🟢 Attachments & Quick Stretch →

Pocket: V2P-PA • Above Pocket: V2P-APA • Polo: V2P-PSA • Zipper: VP-ZAS11/16 • Bag Pallet: VP-BAG1318/1418 • Quick Stretch: VQS-66/417/98/1017/1517/1721 (lined jackets & delicate fabrics)

🟢 Removable Side Clamps

8″ Deep: SC-22/SC-26 (VGS-1100 incl.) • 12″ Deep: SC-22-12/SC-26-12 (VGS-1100 incl.) • 30″ Deep: SC-22-30/SC-26-30 (VGS-DB double gas spring incl.). Removable for larger screens, no tools required.

🟢 Press Accessories

Drop-Down Wheels: WS-VHD • Squeegee Rest: VN-WT2 • DIY Pallet Mount: V2P-DIY • DiGiT Numbering: DIGIT-12 • Pallet Adapter: VPA-2.5X1.5

Side Clamps vs. Rear Clamps: Which Do You Need?

The V-2000HD ships with 12″ wide rear screen clamps as standard. Removable side clamps (SC-22 / SC-26 series) are available as an upgrade — or you can order a fixed side clamp configuration from the factory (e.g., V2HD-44-FSC). Here’s how to choose.

REAR CLAMPS

Standard on all V-2000HD

✔ Pros

Included with every press — no extra cost
12″ wide clamp bar handles most standard screen sizes
Off-center clamping for flexibility in screen placement

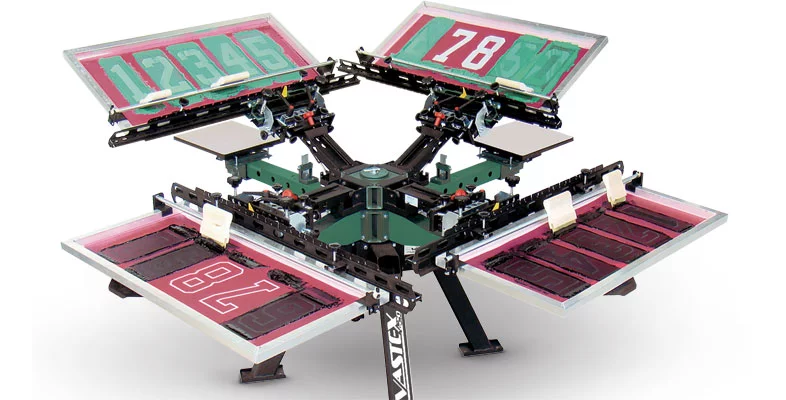

Accepts DiGiT numbering jig in 20 seconds
Maximum squeegee stroke clearance on all sides
Easy screen swap — flip-up and drop-in

✘ Cons

No clamping support on screen sides — can allow slight flex on very large screens

SIDE CLAMPS

SC-22 / SC-26 series add-on

✔ Pros

Supports oversized screens up to 24″ wide (21″ on 8 & 10 color models)
Four-point clamping reduces screen flex and improves registration on large prints
Removable in seconds when not needed — no tools required
8″, 12″, and 30″ depth options for different screen frame depths
30″ deep option (SC-22-30 / SC-26-30) ideal for extra-large or specialty frames
Gas spring included on all configurations (double spring on 30″ depth)

✘ Cons

Additional cost over standard rear clamps
Slightly reduces available squeegee stroke width on some configurations
Not compatible with DiGiT numbering jig when side clamps are installed
Fixed side clamp factory option (V2HD-44-FSC) cannot be converted back to rear-only

Bottom line: If you’re printing standard plastisol jobs on typical 20″–23″ frames, rear clamps are all you need. If you run larger specialty frames, allover prints, or production that demands four-point screen stability, the removable side clamps are worth every penny — and you can pull them off in seconds when the job doesn’t need them.

Model Comparison

Model	Type	Stations	Colors	Diameter (Std)	Unit Weight
V2HD-11-T	Tabletop	1	1	51″ (130 cm)	73 lbs
V2HD-14-T	Tabletop	1	4	87″ (221 cm)	134 lbs

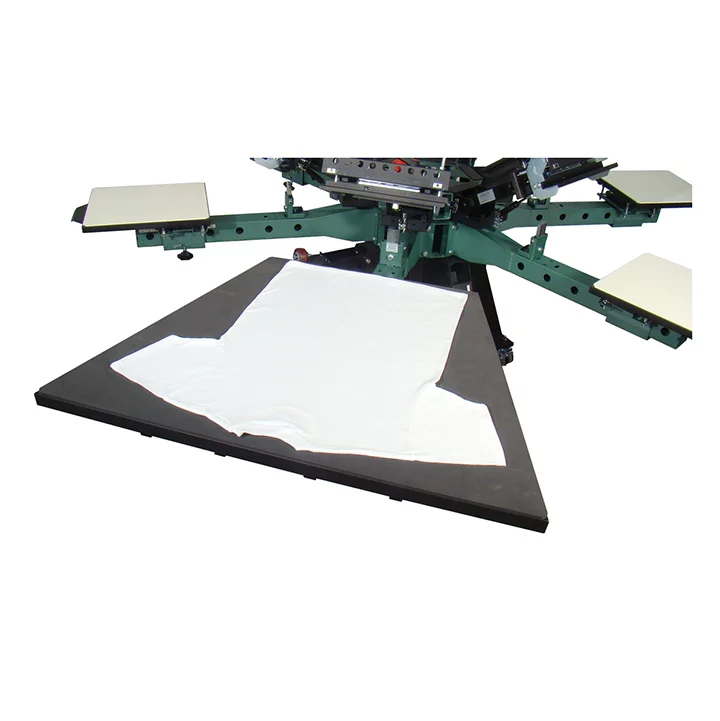

V2HD-FP-11	Allover	1	1	53″ (135 cm)	193 lbs
V2HD-FP-14	Allover	1	4	91″ (231 cm)	250 lbs
V2HD-44	Rotary	4	4	91″ (231 cm)	400 lbs
V2HD-46	Rotary	4	6	97″ (246 cm)	473 lbs
V2HD-66	Rotary	6	6	99″ (252 cm)	550 lbs
V2HD-88	Rotary	8	8	109″ (277 cm)	750 lbs
V2HD-1010	Rotary	10	10	131″ (333 cm)	1,075 lbs

Available Options & Upgrades

Additional color and station upgrade packages • Super heavy duty print arms • DiGiT athletic numbering attachment (DIGIT-12) • VRS pin registration system • Drop-down wheel set (WS-VHD) • Service pan with locking wheels • Wide variety of pallets and specialty attachments

Removable Side Clamps — Install in 20 Seconds

8″ Deep: SC-22 / SC-26 (VGS-1100 incl.) • 12″ Deep: SC-22-12 / SC-26-12 (VGS-1100 incl.) • 30″ Deep: SC-22-30 / SC-26-30 (VGS-DB double gas spring incl.). Fixed side clamp option available on V2HD-44-FSC.

Need pricing, a custom configuration, or help choosing the right model?

📞 (512) 454-0505
✉ [email protected]

Technical Specifications

V-2000HD Technical Specifications

Universal Specifications — All Models

Specification	Value
Warranty	2 Years — Manufacturing defects only; excludes normal wear or abuse
Pallet Material	Never-warp steel with replaceable heat- and solvent-resistant rubber tops
Head Lifting System	Gas Spring — 16-position variable lift strength
All Heads Down	Yes — via Fixed Heads (all models)
Micro-Registration	Advanced, wrenchless, anti-backlash (all models)
Screen Leveling	Advanced 6-way
Height — Legs to Pallet (Standard)	34.5″ (88 cm)
Height — Legs to Pallet (With Wheels)	38.5″ (98 cm)
Center Shaft	2.75″ (6.9 cm) precision ground
Rotor Arm	3.25″ (8.3 cm) square steel with ruler indicator
Rear Screen Clamps	12″ (30 cm) wide steel joined by steel clamp bar — allows off-center clamping
Max Screen Weight — Standard Gas Spring	8 lbs (3.6 kg)
Max Screen Weight — Double Gas Springs	30 lbs (13.6 kg)
Max Screen Weight — HD Head Upgrade	50 lbs (22.7 kg)
Country of Manufacture	Made in the USA — Vastex International, Bethlehem, PA

Model-Specific Specifications

Specification	V2HD-11-T	V2HD-14-T	V2HD-FP-11	V2HD-FP-14	V2HD-44	V2HD-46	V2HD-66	V2HD-88	V2HD-1010
Stations	1	1	1	1	4	4	6	8	10
Colors	1	4	1	4	4	6	6	8	10
Diameter — Standard	51″	87″	53″	91″	91″	97″	99″	109″	131″
Diameter — Fully Extended	58″	94″	60″	98″	105″	105″	111″	121″	137″
Max Screen Width (w/ Side Clamps)	24″	24″	24″	24″	24″	24″	24″	21″	21″
Max Standard Pallet Size	27″x32″	27″x32″	27″x32″	27″x32″	48″x40″	48″x40″	48″x40″	48″x40″	48″x40″
Unit Weight	73 lbs	193 lbs	134 lbs	250 lbs	400 lbs	473 lbs	550 lbs	750 lbs	1,075 lbs
Shipping Weight	281 lbs*	512 lbs	412 lbs	350 lbs	685 lbs	710 lbs	800 lbs	1,025 lbs	1,423 lbs
Ships UPS	Yes*	No	No	No	No	No	No	No	No

* V2HD-11-T also ships UPS in 2 boxes at 120 lbs (55 kg). All shipping weights are approximate and for continental US shipping only. Ex-works Bethlehem, PA.

Warranty covers manufacturing defects only — not normal wear or abuse. Custom pallet sizes available on all models. 1 in = 2.54 cm | 1 lb = 0.454 kg

Technical Sheets / Safety Data Sheets / Documents

Vastex 2000HD Brochure

FREQUENTLY ASKED QUESTIONS

Frequently Asked Questions

What V-2000HD models are available?

The V-2000HD series includes 9 models: tabletop presses (V2HD-11-T and V2HD-14-T), allover floor presses (V2HD-FP-11 and V2HD-FP-14), and rotary floor presses from 4-station/4-color (V2HD-44) up to 10-station/10-color (V2HD-1010). Every model shares the same heavy-duty steel construction and advanced feature set.

Can I upgrade my V-2000HD to add more stations or colors later?

Yes — the V-2000HD is fully expandable at any time. You can start with a 1-station/1-color tabletop and add stations and print heads incrementally all the way up to a 10-station/10-color floor press. This modular design protects your initial investment as your shop grows and your production demands increase.

What screen sizes does the V-2000HD accept?

The V-2000HD uses 12″ (30 cm) wide steel rear screen clamps that join via a steel clamp bar for off-center clamping. With optional removable side clamps, maximum screen width is 24″ on models V2HD-11-T through V2HD-66, and 21″ on V2HD-88 and V2HD-1010 (when all heads are loaded). Larger screens will fit when neighboring heads are left empty. Standard screen weight limit is 8 lbs; upgrade to double gas springs for up to 30 lbs or HD heads for up to 50 lbs.

Does the V-2000HD really print with all heads down simultaneously?

Yes. The V-2000HD uses a fixed-head design that keeps all print heads in the down position at the same time. This is critical for multicolor setups where you need to adjust off-contact distance across all stations simultaneously, set up flash cure positions, or perform other press-wide operations without lifting and resetting each head individually.

What pallets and accessories are compatible with the V-2000HD?

The V-2000HD works with an extensive lineup of Vastex pallets and attachments including shirt pallets (multiple sizes up to jumbo 20″x24″), sleeve, leg, mini, koozie, wing, vacuum, all-over, tagless, and hat pallets. Additional accessories include Quick Stretch attachments for lined jackets, zipper/seam attachments, pocket and polo attachments, DiGiT™ athletic numbering jigs, removable side clamps, drop-down wheel sets, and squeegee rests.

What does the 2-year warranty cover?

The V-2000HD comes with a 2-year warranty from Vastex International covering manufacturing defects. Normal wear and abuse are excluded. The warranty applies to all models in the V-2000HD series.

Is the V-2000HD made in the United States?

Yes. Every V-2000HD press is manufactured by Vastex International in Bethlehem, Pennsylvania. Vastex has been producing industrial screen printing equipment in the USA for over 60 years.

How do I order or get pricing for the V-2000HD?

Contact River City Supply directly — we’ve been helping screen printers spec and source the right equipment since 2008. Call us at (512) 454-0505 or email [email protected]. We offer same-day shipping on orders placed before 3:30 PM CT, Monday through Friday, with free shipping on orders over $200.

Still have questions?

Our team knows Vastex equipment inside and out.

(512) 454-0505
Email Us

Reviews

Only logged in customers who have purchased this product may leave a review.
