Vastex LittleRed X1
Vastex LittleRed X1

The Vastex LittleRed X1 is a CE Certified, mid-level infrared conveyor dryer built for growing screen print shops. Available in a 30″ belt (up to 130 plastisol shirts/hr) or 54″ belt (up to 260 plastisol shirts/hr) configuration — both featuring digital PID temperature control accurate to ±1°F, DC belt speed control, X-Series Teflon-coated belt tracking, and powered exhaust. Select your model above.

Price range: $4,527.00 through $6,042.00

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)
As low as $111 per month with ACG Equipment Financing
SKU: VAS LR-X1-30-(120 or 240) Categories: , Tags: , , , , , , , , , , , , , , , , ,

Description

Who Is This Dryer Built For?

The Vastex LittleRed X1 series is engineered for mid-capacity screen printing shops that need a real production conveyor dryer without the footprint or cost of a full industrial unit. Both models are CE Certified and manufactured in the USA.

LR-X1-30 is the right fit if… You run a manual press, print standard-sized apparel, need 120V or 240V flexibility, want a compact 41″ wide footprint, or are building your first production shop and want a dryer that can grow into an X2 or X3 as your volume increases.
LR-X1-54 is the right fit if… You need to run oversized all-over prints, load two rows of shirts simultaneously, match the output of a high-volume manual press, or regularly print with water-based or discharge inks that need longer dwell time.
Either model if… You cure a mix of plastisol, water-based, discharge, or DTF adhesive and want a single reliable dryer on a modular platform you can expand without buying a new machine.

X1-30 vs X1-54: Which One Do You Need?

Both models share the same PID controls, belt tracking, tilting heater, and modular platform. The decision comes down to belt width, voltage availability, and production volume. Still deciding? Call (512) 454-0505.

Feature LR-X1-30 LR-X1-54
Belt Width 30″ (76 cm) 54″ (137 cm)
Plastisol Shirts/Hr 90+ (120V) / 130+ (240V) 260+
WB / Discharge/Hr 45+ 90+
Total Wattage 2,000W (120V) / 2,600W (240V) 5,200W
Voltage Options 120V or 240V 240V only
Overall Width 41″ (105 cm) 65″ (166 cm)
Overall Length 48″ (122 cm) 66″ (168 cm)
Exhaust CFM 144 CFM / 4″ duct 300 CFM / 6″ duct
DTF Exhaust Hood EXH-18 (optional) EXH-42 (optional)
Cost/Hr to Operate* 26¢ (240V) / 20¢ (120V) 52¢
Unit Weight 220 lbs (100 kg) 380 lbs (173 kg)
Two-Row Loading No Yes
Expandable to X2/X3? Yes → X2/X3 Yes → X2/X3

*Cost/hr based on 10¢/kWh. Actual costs vary by local electricity rate.

Key Features

High-Density Infrared Heating Closely spaced coils provide medium-wavelength infrared heat that penetrates directly into the ink for a full, washfast cure at maximum belt speed — no cold spots, no under-curing.
Digital PID Temperature Control (±1°F) Holds your set temperature within a single degree. Heat range up to 850°F (454°C) at the heater on 240V. Eliminates the drift that causes cure failures and reprints on cheaper dryers.
DC Belt Motor with Digital Speed Display Belt speed range of 0.6–7.4 FPM (0.18–2.3 MPM) with digital readout. Set it once, replicate it every shift for consistent dwell times on plastisol and water-based inks alike.
X-Series Belt Tracking & Teflon-Coated Belt Low-friction roller belt aligner keeps the Teflon-coated fiberglass belt tracking straight under continuous production loads. Available in 30″ (76 cm) and 54″ (137 cm) widths.
Adjustable Belt-to-Heater Clearance (2–7″) Independently adjust on each side from 2–7″ (5–17.7 cm) to optimize heat for different garment thicknesses, substrates, and ink types including bulky hoodies and structured caps.
Powered Exhaust System X1-30: 144 CFM via 4″ duct. X1-54: 300 CFM via 6″ duct. Cools the outer cabinet and evacuates moisture and fumes. Add-on EXH-18 / EXH-42 exhaust hoods strongly recommended for DTF use.
Tilting Heater Design All LittleRed series dryers feature a tilting heater — making it easy to cure structured caps, hats, and other 3D items that standard flat dryers cannot accommodate.
Modular Expandability Add 18″ or 36″ heating chambers and 18″ belt extensions as your shop grows. Upgrade your X1 into an X2 or X3 without purchasing a new dryer.
Warranty 5-year heater warranty + 2-year defect warranty. River City Supply is an authorized Vastex dealer — warranty support runs through us. Call (512) 454-0505 or email [email protected].
CE Certified Both X1 models are CE Certified by Certification Experts, The Netherlands. Made in the USA.

Ink & Substrate Compatibility

  • Plastisol inks — 25-second dwell at rated cure speeds; all standard formulations including athletic, metallic, and specialty inks
  • Water-based and HSA inks — 70-second dwell for full moisture evaporation and proper washfastness
  • Discharge inks — 70-second dwell; even heat distribution critical for consistent color removal activation
  • DTF adhesive powders — compatible; EXH-18 (X1-30) or EXH-42 (X1-54) exhaust hood strongly recommended

Recommended max image width = heater width minus 4″. Production speeds based on 16″ centers; vary by ink manufacturer, humidity, and other conditions.

Why Screen Printers Trust Vastex Dryers

Vastex International has been engineering screen printing equipment in Bethlehem, PA for decades. Their dryers are designed from the ground up for production printing.

  • Consistent results, shift after shift. Digital PID control and DC belt motor together mean your cure settings are fully repeatable. Set it once, rely on it for years.
  • Smaller footprint than the competition. A Vastex 30″ dryer is 41″ wide overall. Competing 30″ dryers typically run 33–39″ wide — wasting floor space you can’t afford.
  • Modular from day one. Upgrade your X1 into an X2 or X3 as production grows.
  • Built in the USA, CE Certified. Vastex equipment meets both domestic and international safety standards.
  • Expert support. River City Supply is an authorized Vastex distributor. Call (512) 454-0505 or email [email protected].

Vastex LittleRed X-Series: Full Model Comparison

All models include digital PID control (±1°F), DC belt speed control, X-Series tracking, Teflon belt, powered exhaust, tilting heater, modular expandability, 5-yr heater + 2-yr defect warranty. Browse all Vastex dryers →

Model Belt Heaters Watts Plastisol/Hr WB/Disc/Hr CFM Weight Best For
LR-X1-18 18″ 1 1,625W 110+ 50+ 144 172 lbs Startups, hobby shops
LR-X1-30 ★ 30″ 1 2,000–2,600W 90–130+ 45+ 144 220 lbs Manual press, 120V shops, compact footprint
LR-X1-54 ★ 54″ 1 5,200W 260+ 90+ 300 380 lbs High-vol manual, oversized prints, 2-row
LR-X2-30 30″ 2 5,200W 260+ 90+ 300 304 lbs Stepping up from X1-30
LR-X2-54 54″ 2 10,400W 520+ 180+ 350 480 lbs High-vol manual / small automatic press
LR-X3-30 30″ 3 7,800W 360+ 120+ 650 424 lbs High-output manual, WB/discharge focus
LR-X3-54 54″ 3 15,600W 720+ 240+ 550 Call Automatic press companion, max LR output
LR-X3-78 78″ 3 23,400W 1,080+ 360+ Call Call Full automatic press, 3-row loading

★ = This product  |  D-Series dual-zone models also available  |  Rated shirts/hr at 16″ centers, approximations only

Ready to Order? We’re Here to Help.

River City Supply is an authorized Vastex distributor in San Antonio, TX. We carry the full line of Vastex conveyor dryers and accessories. Our team has hands-on screen printing experience and will help you choose the right dryer, voltage configuration, and accessories for your shop.

📞 Phone (512) 454-0505
✉ Email [email protected]
🕒 Lead Times Built to order — ships direct from Vastex. Contact us for current build and lead times.
💳 Financing Equipment financing available — fast approvals, Section 179 eligible
🔹 All Dryers Browse full Vastex conveyor dryer lineup →

River City Supply — Authorized Vastex Dealer — San Antonio, TX — Serving screen printers nationwide since 2006.

Vastex Infrared Dryer Accessories

Maximize the performance of your LittleRed X1 with these factory-matched Vastex accessories. Call (512) 454-0505 for pricing.

Accessory Model Description & Compatibility
Exhaust Hood ★ DTF EXH-18 Removes fumes at dryer exit. Fits LR-X1-30 (18–30″ belts). Available 120V or 240V. Strongly recommended for DTF.
Exhaust Hood ★ DTF EXH-42 Removes fumes at dryer exit. Fits LR-X1-54 (54″ belts). Available 120V or 240V. Strongly recommended for DTF.
Conveyor Air Bar CABX-30 Cools ink as garments exit. Fits 33.1–39.1″ wide conveyors. Use with LR-X1-30. Available 120V or 240V.
Conveyor Air Bar CABX-54 Cools ink as garments exit. Fits 58.3–64.3″ wide conveyors. Use with LR-X1-54. Available 120V or 240V.
Drop Down Wheels WS-E-DD Drop-down casters for shop mobility. Fits DB, LittleRed, and EC-I dryers. Raises dryer 4″ for easy repositioning.
Conveyor Extensions Multiple Extend conveyor in 18″, 36″, or 54″ increments. Used with add-on chambers to expand X1 → X2 or X3.
Mobile Stand S-100 Mobile stand with wheels. 27″x27″ or 27″x35″. Optional shelves and drawer kits.

Technical Specifications

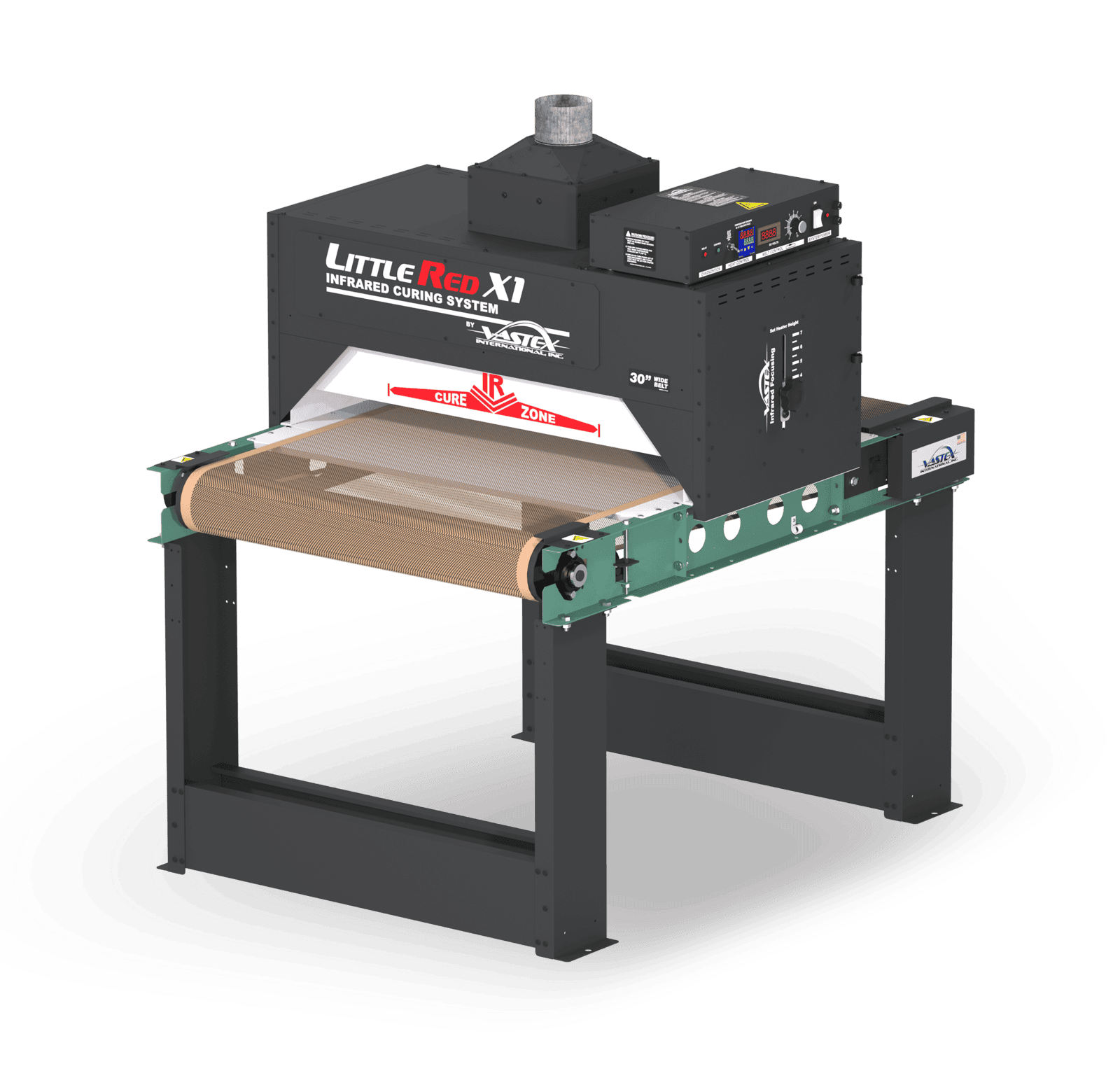

Technical Specifications — LR-X1-30

SKU VAS-LR-X1-30
Certification CE Certified  |  Made in USA
Belt Width 30 in. (76 cm)
Heater Width 24 in. (61 cm) — max image width 20″
Heater Size 12″ x 24″ (30 x 61 cm)
Number of Heaters 1 (Single Infrared Element)
Total Wattage 2,000W @ 120V  |  2,600W @ 240V
Heat Range (at heater) 0–850°F (454°C) @ 240V  |  0–750°F (399°C) @ 120V
Temperature Control Digital PID, accurate to ±1°F
Belt Speed 0.6–7.4 FPM (0.18–2.3 MPM) — DC motor with digital display
Time in Tunnel Range 00:17 – 01:46 (mm:ss)
Plastisol Cure Rate 90+ garments/hr @ 120V  |  130+ garments/hr @ 240V (25 sec dwell)
Water-Based / Discharge Rate 45+ garments/hr (70 sec dwell)
Rows on Belt 1 row
Belt Material Teflon-coated fiberglass (X-Series roller tracking)
Belt-to-Heater Clearance 2–7 in. (5–17.7 cm), adjustable per side
Chamber Length 18 in. (46 cm)
Chamber Infeed Width 33.5 in. (85 cm)
Powered Exhaust 144 CFM (4.1 CMM) — 4″ (10.16 cm) duct
Overall Length 48 in. (122 cm)
Overall Width 41 in. (105 cm)
Overall Height 48 in. (122 cm)
Cost/Hr to Operate 26¢ @ 240V  |  20¢ @ 120V (based on 10¢/kWh)
Electrical Specs 120V / 1-Ph / FLA 16.5A — NEMA 5-20P (cordset included)
208V / 1-Ph / FLA 12.5A — NEMA 6-15P (cordset included)
240V / 1-Ph / FLA 11A — NEMA 6-15P (cordset included)
FLA = Full Load Amps. Consult licensed electrician. Ref NEC 210.20(a), 215.3, 310.
Unit Weight 220 lbs (100 kg)
Shipping Weight (crated) ~350 lbs (156 kg) — continental US only
Shipping Dimensions (crated) 37″ x 45″ x 40″ (94 x 115 x 102 cm)
Heater Warranty 5 Years
Defect Warranty 2 Years
Expandable Yes — upgrades to X2 or X3 with add-on chambers + belt extensions
DTF Exhaust Hood EXH-18 (fits 18–30″ belts) — strongly recommended for DTF
Manufacturer Vastex International, Bethlehem, PA — USA

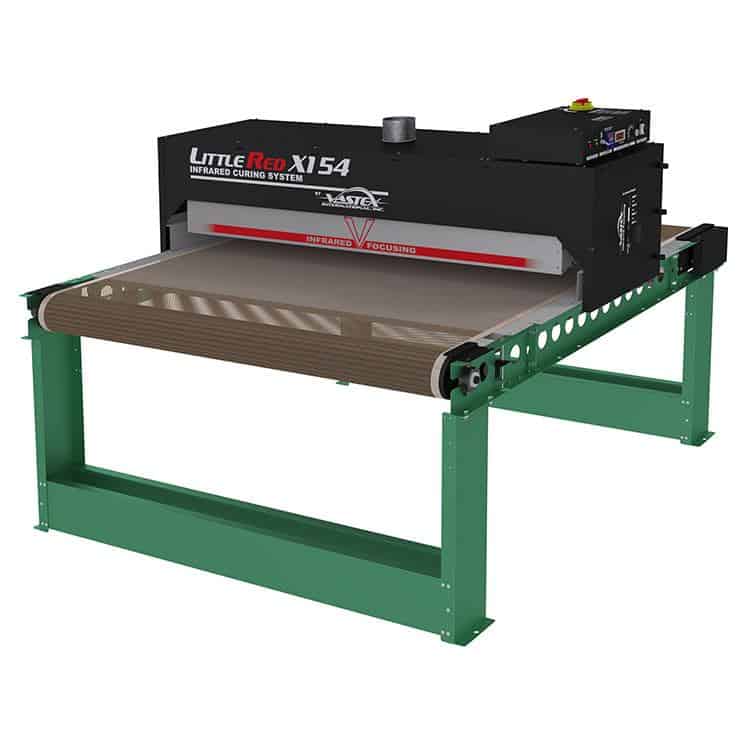

Technical Specifications — LR-X1-54

SKU VAS-LR-X1-54
Certification CE Certified  |  Made in USA
Belt Width 54 in. (137.2 cm)
Heater Width 48 in. (122 cm) — max image width 44″
Heater Size 12″ x 48″ (30 x 122 cm)
Number of Heaters 1 (Single Infrared Element)
Total Wattage 5,200W @ 240V
Heat Range (at heater) 0–850°F (454°C) @ 240V
Temperature Control Digital PID, accurate to ±1°F
Belt Speed 0.6–7.4 FPM (0.18–2.3 MPM) — DC motor with digital display
Time in Tunnel Range 00:17 – 01:46 (mm:ss)
Plastisol Cure Rate 260+ garments/hr @ 240V (25 sec dwell)
Water-Based / Discharge Rate 90+ garments/hr (70 sec dwell)
Rows on Belt 2 rows
Belt Material Teflon-coated fiberglass (X-Series roller tracking)
Belt-to-Heater Clearance 2–7 in. (5–17.7 cm), adjustable per side
Chamber Length 18 in. (46 cm)
Chamber Infeed Width 58.5 in. (149 cm)
Powered Exhaust 300 CFM (8.5 CMM) — 6″ (15.24 cm) duct
Overall Length 66 in. (168 cm)
Overall Width 65 in. (166 cm)
Overall Height 48 in. (122 cm)
Cost/Hr to Operate 52¢ (based on 10¢/kWh)
Electrical Specs 208V / 1-Ph / FLA 30A — hard-wired
240V / 1-Ph / FLA 24A — hard-wired
240V / 3-Ph / FLA 18A — hard-wired
380V / 3-Ph / FLA 10A — hard-wired
Licensed electrician required. Ref NEC 210.20(a), 215.3, 310.
Unit Weight 380 lbs (173 kg)
Shipping Weight (crated) ~650 lbs (295 kg) — continental US only
Shipping Dimensions (crated) 69″ x 49″ x 59″ (176 x 125 x 150 cm)
Heater Warranty 5 Years
Defect Warranty 2 Years
Expandable Yes — upgrades to X2 or X3 with add-on chambers + belt extensions
DTF Exhaust Hood EXH-42 (fits 54″ belts) — strongly recommended for DTF
Manufacturer Vastex International, Bethlehem, PA — USA

Vastex Infrared Dryer Accessories

Maximize the performance of your LittleRed X1 with these factory-matched Vastex accessories. Call (512) 454-0505 for pricing.

Accessory Model Description & Compatibility
Exhaust Hood ★ DTF EXH-18 Removes fumes at dryer exit. Fits LR-X1-30 (18–30″ belts). Available 120V or 240V. Strongly recommended for DTF.
Exhaust Hood ★ DTF EXH-42 Removes fumes at dryer exit. Fits LR-X1-54 (54″ belts). Available 120V or 240V. Strongly recommended for DTF.
Conveyor Air Bar CABX-30 Cools ink as garments exit. Fits 33.1–39.1″ wide conveyors. Use with LR-X1-30. Available 120V or 240V.
Conveyor Air Bar CABX-54 Cools ink as garments exit. Fits 58.3–64.3″ wide conveyors. Use with LR-X1-54. Available 120V or 240V.
Drop Down Wheels WS-E-DD Drop-down casters for shop mobility. Fits DB, LittleRed, and EC-I dryers. Raises dryer 4″ for easy repositioning.
Conveyor Extensions Multiple Extend conveyor in 18″, 36″, or 54″ increments. Used with add-on chambers to expand X1 → X2 or X3.
Mobile Stand S-100 Mobile stand with wheels. 27″x27″ or 27″x35″. Optional shelves and drawer kits.

Technical Sheets / Safety Data Sheets / Documents

Vastex LittleRed X1 Brochure

Vastex LittleRed X1 Manual

FREQUENTLY ASKED QUESTIONS

What’s the difference between the X1-30 and X1-54?

The X1-30 has a 30″ belt, cures 1 row at up to 130 plastisol garments/hr on 240V, and runs on 120V or 240V. The X1-54 has a 54″ belt, cures 2 rows at up to 260 plastisol garments/hr, and requires 240V only with hard-wired installation by a licensed electrician.

Can the LittleRed X1 cure water-based and discharge inks?

Yes. The X1-30 handles 45+ water-based or discharge garments/hr; the X1-54 handles 90+/hr. Both use a 70-second dwell time vs. 25 seconds for plastisol.

Can I use the X1 for DTF adhesive powder curing?

Yes — but the EXH-18 (X1-30) or EXH-42 (X1-54) exhaust hood is strongly recommended by Vastex to reduce fume emissions. Call (512) 454-0505 to add it to your order.

Can I upgrade the X1 to an X2 or X3 later?

Yes. Add 18″ or 36″ heating chambers and extend the belt with conveyor extensions to double or triple throughput without buying a new dryer. Browse the LittleRed X2 and LittleRed X3 lineups.

What electrical requirements does the X1-30 have?

The X1-30 includes a cordset: 120V/16.5A FLA (NEMA 5-20P) or 240V/11A FLA (NEMA 6-15P). The X1-54 must be hard-wired at 240V/24A FLA (1-phase) and requires a licensed electrician. Questions? Call (512) 454-0505.

Can I cure hats and caps in the LittleRed X1?

Yes. All LittleRed series dryers feature a tilting heater design for structured caps and hats, plus independently adjustable 2–7″ belt-to-heater clearance for bulky and 3D substrates.

What warranty comes with the Vastex LittleRed X1?

The X1 includes a 5-year heater warranty and 2-year defect warranty. River City Supply is an authorized Vastex dealer. Call (512) 454-0505 or email [email protected].

How much does it cost per hour to run?

Based on 10¢/kWh: X1-30 runs approximately 26¢/hr on 240V or 20¢/hr on 120V. X1-54 runs approximately 52¢/hr. Actual costs vary by local electricity rate.

How long does it take to receive a Vastex LittleRed X1?

Vastex LittleRed X1 dryers are built to order and ship direct from Vastex International in Bethlehem, PA. Lead times vary. Contact us at (512) 454-0505 or [email protected] for current build and lead times and a freight quote.

Is financing available?

Yes. River City Supply offers equipment financing through our financing partner. Fast approvals, competitive rates, Section 179 eligible. Call (512) 454-0505 to get started.

Reviews

Reviews

Only logged in customers who have purchased this product may leave a review.

You May Also Like

Related products

Additional Options

Read Our Reviews

Need Help?

Contact Us

Monday - Friday
9am - 5pm

Free in-store pickup

In-stock orders ready in 1 hour

Get the latest news & exclusive offers
