Screen Printing Startup Package – Vastex Pro 1 (4-Color)

Name: Screen Printing Startup Package – Vastex Pro 1 (4-Color) - River City Supply
Price: 9350.00 USD
Availability: InStock

Vastex

The Vastex Pro 1 is our most affordable complete screen printing shop package to start a printing business — and it includes the press. Four pieces of genuine, USA-made Vastex equipment get you printing: expose your own screens, print up to four colors on a V-1000 4-station press, flash between colors with an F-1000 flash, and cure your finished garments on a D-1000 conveyor dryer. One matched, professional starter shop.

Press included
V-1000 4-color / 4-station

Print up to 4 colors
Commercial free-standing rotary press

Expose your own screens
E-200 vacuum exposure unit

Flash between colors
F-1000 18×18 flash dryer

Cure your prints
D-1000 26″ conveyor dryer

Lowest-cost complete shop
Genuine Vastex, sized to work together

The most affordable way to start your screen printing business — press included. Expose, print up to 4 colors, flash and cure. Questions? Call 512-454-0505.

$9,350.00

As low as $229 per month with ACG Equipment Financing

Category: Screen Printing Equipment Packages Tags: 4 color press, affordable screen printing shop, cheapest screen printing setup, complete screen printing shop, screen printing business equipment, screen printing starter kit, screen printing startup package, start a screen printing business, V-1000 press, Vastex shop package

Description

Vastex Pro 1 — The Lowest-Cost Complete Shop to Start Screen Printing

Launching a screen printing business shouldn’t require piecing together mismatched gear. The Vastex Pro 1 package is the most affordable complete way in: a genuine, USA-made Vastex shop built around a V-1000 4-color / 4-station press. Expose your own screens, print vibrant multi-color designs, flash between colors, and cure production-ready garments — every core stage covered by matched, professional gear.

Everything You Need to Start Printing — In One Package

The press is included, and so is the equipment to expose screens, flash and cure. Here’s the workflow and how the pieces fit together:

#	Stage	Included product	What it’s for
1	Expose your screens	Vastex E-200 21×28 LED Exposure Unit	Burns your stencils with true vacuum draw-down: a lid with a vacuum pump pulls film and screen into tight contact for razor-sharp detail. Three 18″ LED bars expose screens up to 21×28, controlled by a simple one-touch panel.
2	Print up to 4 colors	Vastex V-1000 4-Color / 4-Station Press	The heart of your shop: a commercial free-standing manual rotary press with four print stations and four colors, a wrench-free floating-head micro-registration system and steel pallets. Holds screens up to 21×28 and prints registered multi-color designs.
3	Flash between colors	Vastex F-1000 18″×18″ Flash Dryer	An 18×18 infrared flash cure with adjustable heat control and power lights that gels plastisol between colors. High-density heat spreads evenly with no hot spots, on a heavy-duty frame with side handles and wheels.
4	Cure your prints	Vastex D-1000 26″ Conveyor Dryer	The final step: a compact 26″ infrared conveyor dryer with adjustable belt speed and temperature that cures plastisol and water-based prints as garments come off the press — an easy fit for any starter shop.

Every product above is linked — click to see full details and specs.

The press is included — our most affordable complete shop to start. Built around the Vastex V-1000 4-color / 4-station press, it covers exposing screens, printing, flashing and curing. Add a way to dry screens plus consumables and you’re in business.

What Each Piece Does

1 · Expose screens

The E-200 exposure unit burns sharp stencils on screens up to 21×28 with a true vacuum-lid draw-down and one-touch control.

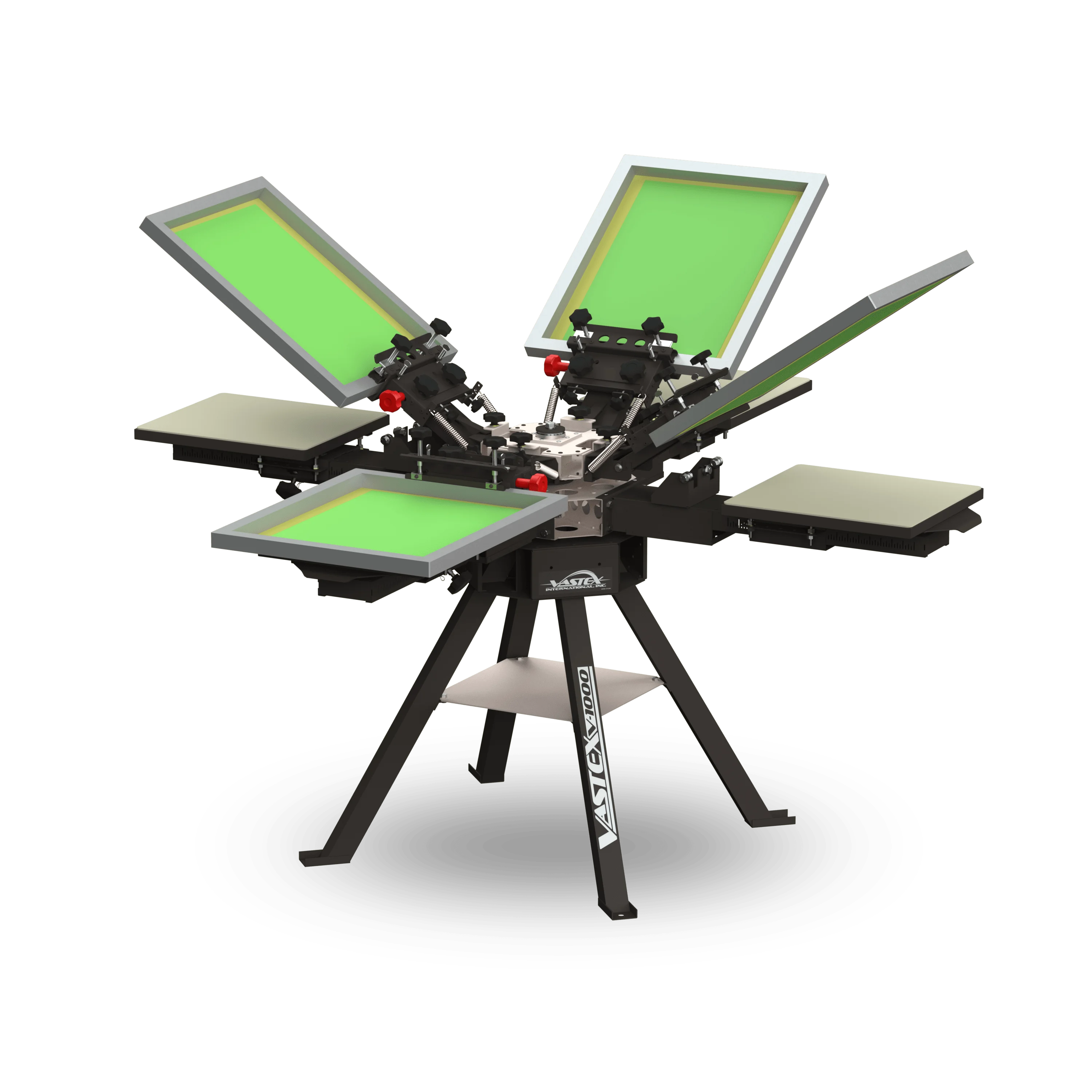

2 · Print up to 4 colors

The V-1000 4-color press prints registered multi-color designs with a wrench-free floating-head micro-registration system.

3 · Flash between colors

The F-1000 18×18 flash gels plastisol between colors with even, adjustable high-density infrared heat.

4 · Cure your prints

The D-1000 conveyor dryer cures plastisol and water-based prints coming off the press in a compact 26″ footprint.

Why Buy From River City Supply?

Real screen printers. Real support. Genuine equipment.

Real printers on staff

Talk to people who run this gear — we’ll help you spec, install and dial in your whole shop. Call (512) 454-0505.

Genuine Vastex, full warranty

Authentic, USA-made Vastex equipment backed by the manufacturer warranties.

Fast shipping + 1-hour pickup

Ships quick, and in-stock items are ready for in-store pickup within an hour in Central Texas.

Financing available

Spread the cost of your whole shop — apply for equipment financing, or ask us how.

Everything under one roof

Presses, pre-press, curing and consumables — outfit your entire shop from one supplier.

Support after the sale

Family-run and here Monday–Friday, 9–5, long after your order ships.

Call (512) 454-0505

What else you’ll need

This package doesn’t include a screen drying cabinet — you can air-dry coated screens or add a Dri-Cab drying cabinet to speed things up. You’ll also want a way to make film positives (a film-positive printer), a washout booth, and consumables: emulsion, screens & mesh, inks, squeegees, tape and garments.

Ready for more?

Want more colors or curing power? Step up to the Vastex Pro 2 (6-color) or Pro 3 (8-color, adds a drying cabinet), or compare the industrial V-2000 Shop 2 and Shop 3. Every item here is also sold on its own and can be financed as a single setup.

Start your shop the right way

Tell us your space, power and goals — we’ll confirm this package fits, add the film, washout and consumables, and set you up with equipment financing to get you printing and selling.

Call 512-454-0505

Apply for financing

Spread the cost of your whole shop with simple equipment financing.

Explore Financing

Technical Specifications

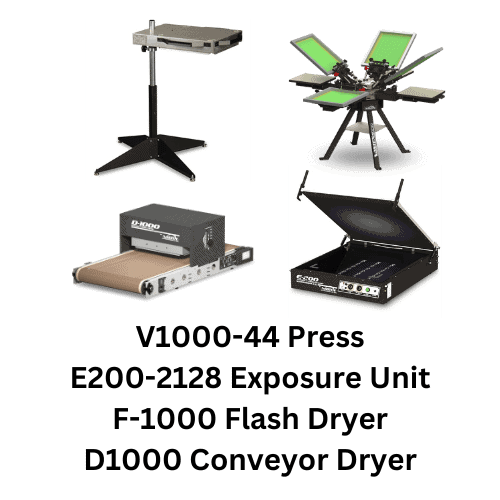

What’s Included in the Vastex Pro 1 Package

Four matched pieces of genuine Vastex equipment — the lowest-cost complete shop, press included. Each is linked to its full product page.

STEP 1 · EXPOSE YOUR SCREENS

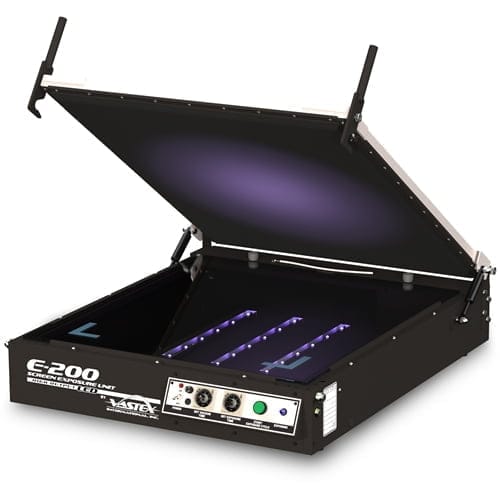

Vastex E-200 21×28 LED Exposure Unit

Burns your stencils with true vacuum draw-down: a lid with a vacuum pump pulls film and screen into tight contact for razor-sharp detail. Three 18″ LED bars expose screens up to 21×28, controlled by a simple one-touch panel.

Key specs: 21×28 screens · vacuum-lid draw-down · three 18″ LED bars · one-touch control

STEP 2 · PRINT UP TO 4 COLORS

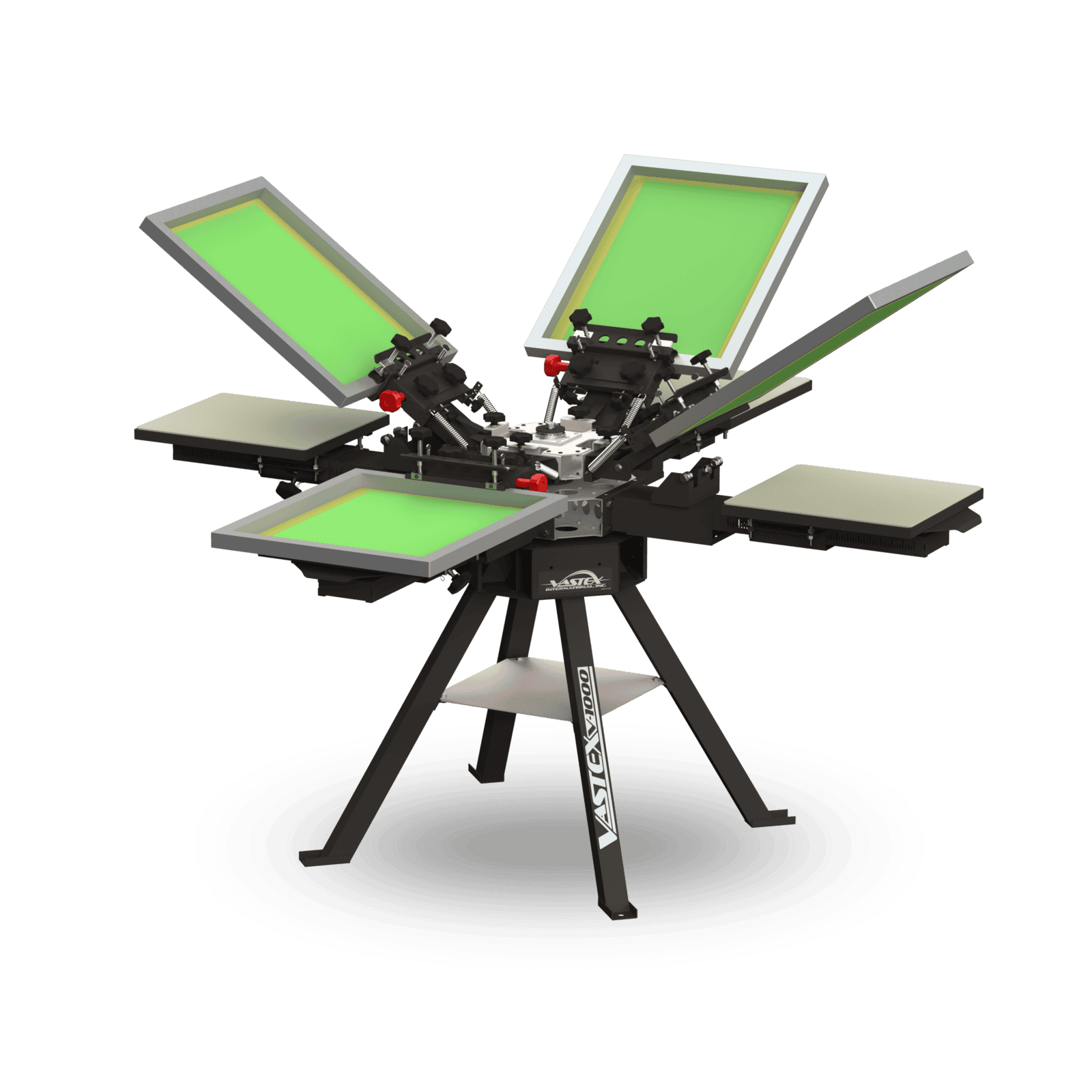

Vastex V-1000 4-Color / 4-Station Press

The heart of your shop: a commercial free-standing manual rotary press with four print stations and four colors, a wrench-free floating-head micro-registration system and steel pallets. Holds screens up to 21×28 and prints registered multi-color designs.

Key specs: 4 station / 4 color · floating-head micro-registration · steel pallets · holds 21×28 screens

STEP 3 · FLASH BETWEEN COLORS

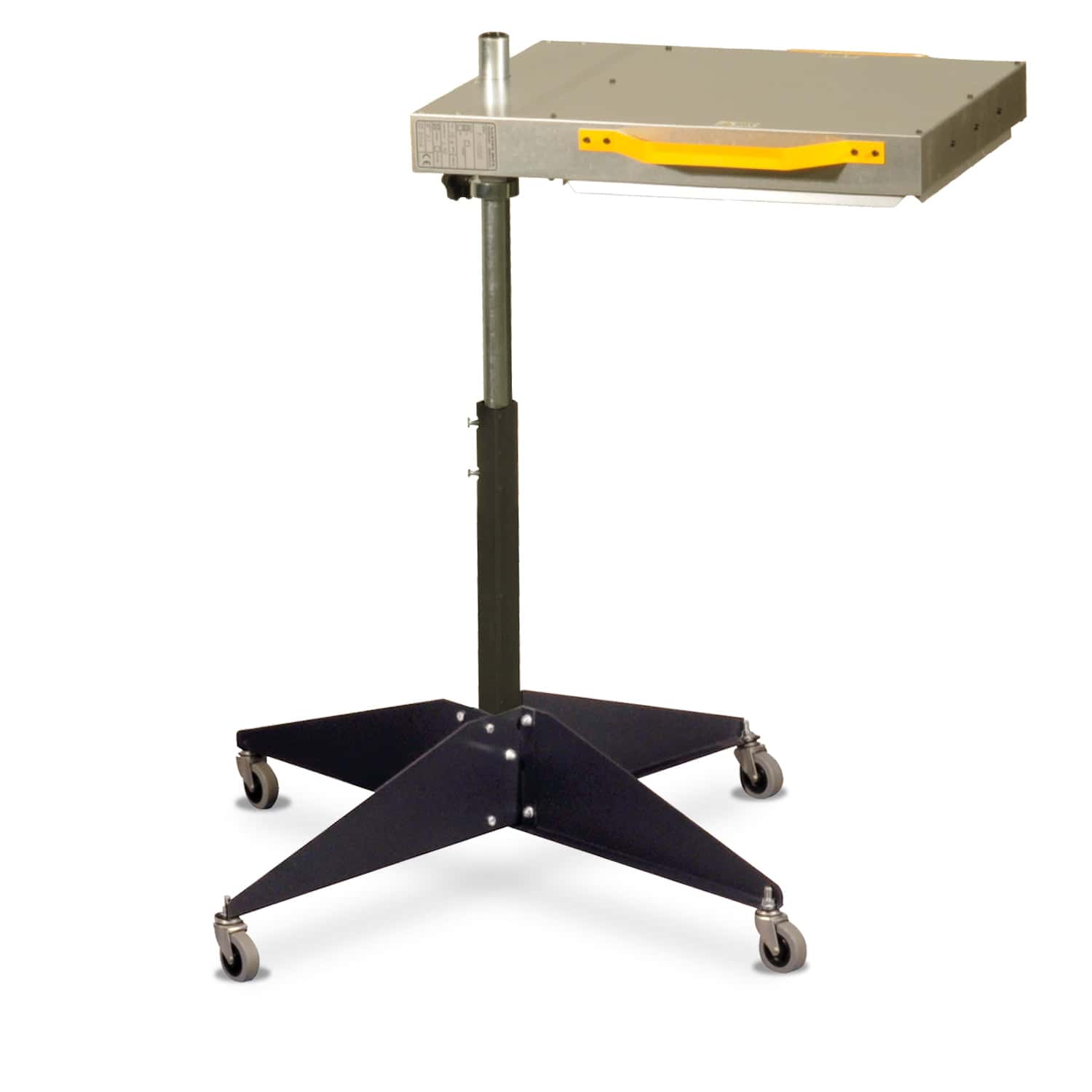

Vastex F-1000 18″×18″ Flash Dryer

An 18×18 infrared flash cure with adjustable heat control and power lights that gels plastisol between colors. High-density heat spreads evenly with no hot spots, on a heavy-duty frame with side handles and wheels.

Key specs: 18×18 · adjustable heat control · even high-density heat · includes wheels

STEP 4 · CURE YOUR PRINTS

Vastex D-1000 26″ Conveyor Dryer

The final step: a compact 26″ infrared conveyor dryer with adjustable belt speed and temperature that cures plastisol and water-based prints as garments come off the press — an easy fit for any starter shop.

Key specs: 26″ belt · 2,050 W infrared · adjustable belt speed & heat · ~110 shirts/hr plastisol

Complete Your Shop

Screen Drying Cabinet
Dry coated screens fast Film-Positive Printer
Print your own films Washout Booth
Develop & reclaim screens Emulsions & Stencil
Coat your screens Screen Printing Inks
Plastisol & water-based Step up: Vastex Pro 2
6-color V-1000 shop

Technical Sheets / Safety Data Sheets / Documents

FREQUENTLY ASKED QUESTIONS

Vastex Pro 1 Package — Frequently Asked Questions

What is the Vastex Pro 1 package?

It’s our most affordable complete screen printing shop package — a turnkey starter setup of genuine Vastex equipment built to launch a printing business. It includes the press plus everything to expose screens, flash between colors, and cure finished prints.

Is the press included?

Yes — the Vastex V-1000 4-color / 4-station press is the centerpiece. It’s a commercial free-standing manual rotary press with wrench-free floating-head registration that prints up to four colors.

What’s included?

Four pieces: the V-1000 4-color / 4-station press, the E-200 21×28 exposure unit, the F-1000 18×18 flash dryer, and the D-1000 26″ conveyor dryer.

Does it include a screen drying cabinet?

No — Pro 1 keeps the price as low as possible by leaving out the drying cabinet. You can air-dry coated screens, or add a Dri-Cab drying cabinet to dry them dust-free.

Is this a good way to start a screen printing business?

Yes — it’s the lowest-cost complete Vastex shop. Instead of piecing together gear from different brands, you get one matched, professional setup that covers the core process, can be financed together, and is backed by our support.

What else do I need to start printing?

A way to make film positives (a film-positive printer), a washout booth, a way to dry coated screens (air-dry or a drying cabinet), and consumables — emulsion, screens & mesh, inks, squeegees, tape and garments.

How many colors can it print?

Up to four colors on four stations with the included V-1000 free-standing rotary press — and it’s expandable as you grow.

How is Pro 1 different from the other packages?

Pro 1 is the entry point: a 4-color V-1000 press, an F-1000 flash and a compact D-1000 dryer (no cabinet). The Pro 2 (6-color) and Pro 3 (8-color) step up capacity, and the industrial V-2000 Shop 2 / Shop 3 packages add even more.

Can I buy the pieces separately, and is financing available?

Yes to both — every item links to its own product page, and the package can be financed as a single setup. Call (512) 454-0505 and we’ll help you spec your space and power, install everything, and get you printing.
