Vastex AirFlash Dryer for Screen Printing – Cures Water-Based, Plastisol, and Discharge Inks – FREE SHIPPING
Vastex
The Vastex AirFlash is Vastex’s top-of-the-line flash: a high-output infrared heater plus a 140 CFM blower that pushes filtered, heated air evenly across the whole face. Run air only, full heat and air, or modulate both — so it flashes plastisol in as little as 4 seconds and cures water-based, discharge, and plastisol inks on cotton, nylon, poly, Spandex and blends. Digital 0–100% control, 360° head, cool-touch shell. 18×18 (3,500W) or 18×24 (4,300W). Free shipping.
Filtered, heated air across the face
Water-based, discharge & plastisol
The fastest flash Vastex makes
Modulate air velocity and heat
0–100% precise & repeatable
3,500W or 4,300W
Price range: $2,117.00 through $2,319.00
Description

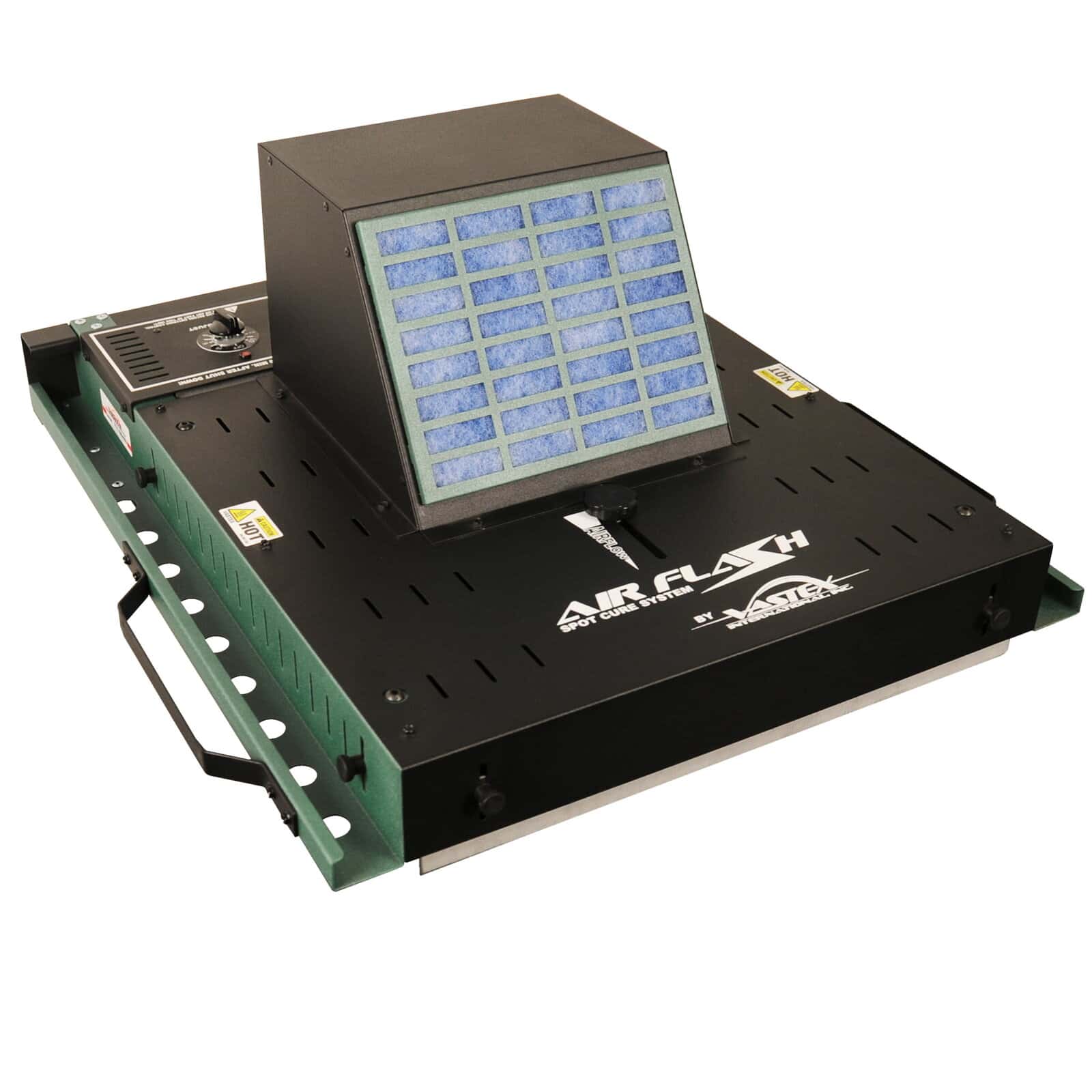

Vastex AirFlash — Forced-Air Flash That Cures Every Ink
The AirFlash is the most versatile flash cure in the industry. A 140 CFM blower draws air through an oversized filtered intake and distributes heated air evenly across the entire heater face — so you can flash plastisol in as little as 4 seconds and fully cure water-based and discharge inks. Run air-only for delicate fabrics or full heat-and-air for speed, all with digital control.
Why Printers Choose It
Forced-Air Curing
A 140 CFM blower delivers filtered, heated air edge to edge — the key to curing water-based and discharge inks, not just flashing.
Cures Every Ink & Fabric
Water-based, discharge and plastisol on cotton, blends, polyester, nylon and Spandex — modulate air and heat for delicate or standard fabrics.
Flash in ~4 Seconds
High-output heat plus moving air makes the AirFlash the fastest flash Vastex builds.
Smart, Cool & Adjustable
Digital 0–100% heat control, diagnostic pilot lights, adjustable heat shield/height/level, cool-touch outer shell and a 360° rotating head.
Compare Vastex Flash Cure Units
All five Vastex flash options at a glance — from the entry F-100 to the forced-air AirFlash that cures every ink, plus the AutoFlash automation upgrade. Click any unit to view its page.
| Unit | Type | Heater | Power | Flash / best for | |
|---|---|---|---|---|---|
| Entry IR flash | 16″×16″ | 1,625W · 120/240V | Best value; startups & 2nd station | View → | |
| IR flash + heat control | 18″×18″ | 1,950/2,600W | Bigger prints; 5-yr heater warranty | View → | |
| Slim IR + air curtain | 18″×18″ (18×24 avail.) | 2,600–3,500W · 240V | Slim 2.75″ head; flash ~7–10s | View → | |
 Air-Flash | Forced-air IR flash | 18″×18″ (18×24 avail.) | 3,500–4,300W · 240V | Flash ~4s; cures all inks incl. water-based | ◀ You’re viewing this |
| Automation add-on | Fits F-100/F-1000/RedFlash | Foot-pedal · 0–30s | Hands-free auto-rotation | View → |
Flash = quickly gel plastisol between colors. The AirFlash adds forced hot air to fully cure water-based & discharge inks. All units ship free (continental U.S.).
Pick your size
RAD-18 (18″×18″, 3,500W, NEMA 6-20P) or RAD-1824 (18″×24″, 4,300W, NEMA L6-30P) for oversized prints — select at checkout.
Only flashing plastisol?
If you don’t need to cure water-based/discharge, the RedFlash or F-1000 flash plastisol at a lower price. Pair any flash with your screen printing inks.
Not sure which flash you need?
Tell us your inks, print sizes and shop power — we’ll match you to the right Vastex flash and stand.
See all flash options
Compare every Vastex flash cure unit side by side and pick the best fit.
Technical Specifications
Vastex AirFlash Forced-Air Flash Dryer — Technical Specifications
| Specification | Detail |
|---|---|
| Model | Vastex AirFlash (RAD-series) |
| Type | Forced-air infrared flash cure unit |
| Heater size | 18″×18″ (46×46 cm) / 18″×24″ (46×61 cm) |
| Power | 3,500W (RAD-18) / 4,300W (RAD-1824) |
| Voltage | 240V |
| Plug | NEMA 6-20P (18×18) / L6-30P (18×24) |
| Airflow | 140 CFM filtered forced air |
| Modes | Air only · full heat + air · modulated |
| Controls | Digital 0–100% heat control, diagnostic pilot lights |
| Flash speed | Plastisol in ~4 sec; cures water-based & discharge |
| Head | 360° rotating, cool-touch outer shell |
| Inks | Water-based, discharge, plastisol |
| Warranty | 5-year heater warranty |
| Shipping | Free shipping (continental U.S.) |
Compare Vastex Flash Cure Units
All five Vastex flash options at a glance — from the entry F-100 to the forced-air AirFlash that cures every ink, plus the AutoFlash automation upgrade. Click any unit to view its page.
| Unit | Type | Heater | Power | Flash / best for | |
|---|---|---|---|---|---|
| Entry IR flash | 16″×16″ | 1,625W · 120/240V | Best value; startups & 2nd station | View → | |
| IR flash + heat control | 18″×18″ | 1,950/2,600W | Bigger prints; 5-yr heater warranty | View → | |
| Slim IR + air curtain | 18″×18″ (18×24 avail.) | 2,600–3,500W · 240V | Slim 2.75″ head; flash ~7–10s | View → | |
| Air-Flash | Forced-air IR flash | 18″×18″ (18×24 avail.) | 3,500–4,300W · 240V | Flash ~4s; cures all inks incl. water-based | ◀ You’re viewing this |
| Automation add-on | Fits F-100/F-1000/RedFlash | Foot-pedal · 0–30s | Hands-free auto-rotation | View → |
Flash = quickly gel plastisol between colors. The AirFlash adds forced hot air to fully cure water-based & discharge inks. All units ship free (continental U.S.).
Related & Compare
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Vastex AirFlash Forced-Air Flash Dryer — Frequently Asked Questions
Still deciding?
Tell us your inks and print sizes and we’ll recommend the right flash — or compare all five in the chart above. Message us on Tidio, email, or call.
