Vastex LittleRed X3 Conveyor Dryer – High-Speed Curing for Plastisol, Water-Based, DTG & More

Name: Vastex LittleRed X3 Conveyor Dryer – High-Speed Curing for Plastisol, Water-Based, DTG &amp; More
SKU: 85384
Availability: InStock

Vastex

The Vastex LittleRed X3 Conveyor Dryer is engineered for screen printers who need serious throughput without sacrificing quality. Ideal for mid-capacity shops and growing operations, the X3 delivers professional-grade results across all ink types—including plastisol, water-based, discharge, DTG, and DTF adhesives.

With its dual-zone heat control, powerful infrared technology, and modular design, the LittleRed X3 is built to outperform and outlast, helping you meet tight deadlines while maintaining a consistent, flawless cure.

Price range: $7,919.00 through $18,020.00

Model

Vastex Little Red X3 30" Wide Dryer
Vastex Little Red X3 54" Wide Dryer
Vastex Little Red X3 78" Wide Dryer

Clear

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)

As low as $194 per month with

SKU: N/A Category: Screen Printing Conveyor Dryers Tags: apparel conveyor dryer, dryer belt garment curing system, electric conveyor dryer for garments, electric dryer, high efficiency screen printing dryer, industrial conveyor dryer, plastisol ink conveyor dryer, production conveyor dryer, professional screen printing dryer, screen printing production equipment, vastex dryer, Vastex garment curing dryer, Vastex LittleRed X3 conveyor dryer, Vastex LittleRed X3 specifications, water based ink conveyor dryer, wide conveyor dryer for screen printing

Description

Vastex LittleRed X3 Conveyor Dryer Key Features:

High-Output Infrared Heating – Closely spaced elements ensure even heat across the belt with no cold spots
Dual-Zone Heat Controls – Independently manage heat zones for optimal curing of different ink systems
Digital PID Temperature Controller – Precision to ±1°F for consistent, accurate results
DC Belt Speed Control – Digital readout for maintaining exact dwell time settings
Powered Exhaust System – Included standard; removes moisture, fumes, and heat for a clean, cool environment
X-Series Belt Tracking – Heavy-duty Teflon-coated fiberglass belt with TruTrak roller system
Adjustable Heater Clearance – 2–7″ clearance, independently adjustable per side per heater
Expandable Design – Add 18″ or 36″ heat chambers and 18″ belt extensions as your output grows
Built for Durability – Heavy-duty construction made for continuous use in busy print shops
5-Year Heater Warranty – Backed by Vastex, the best heater warranty in the industry

Choose Your Model:

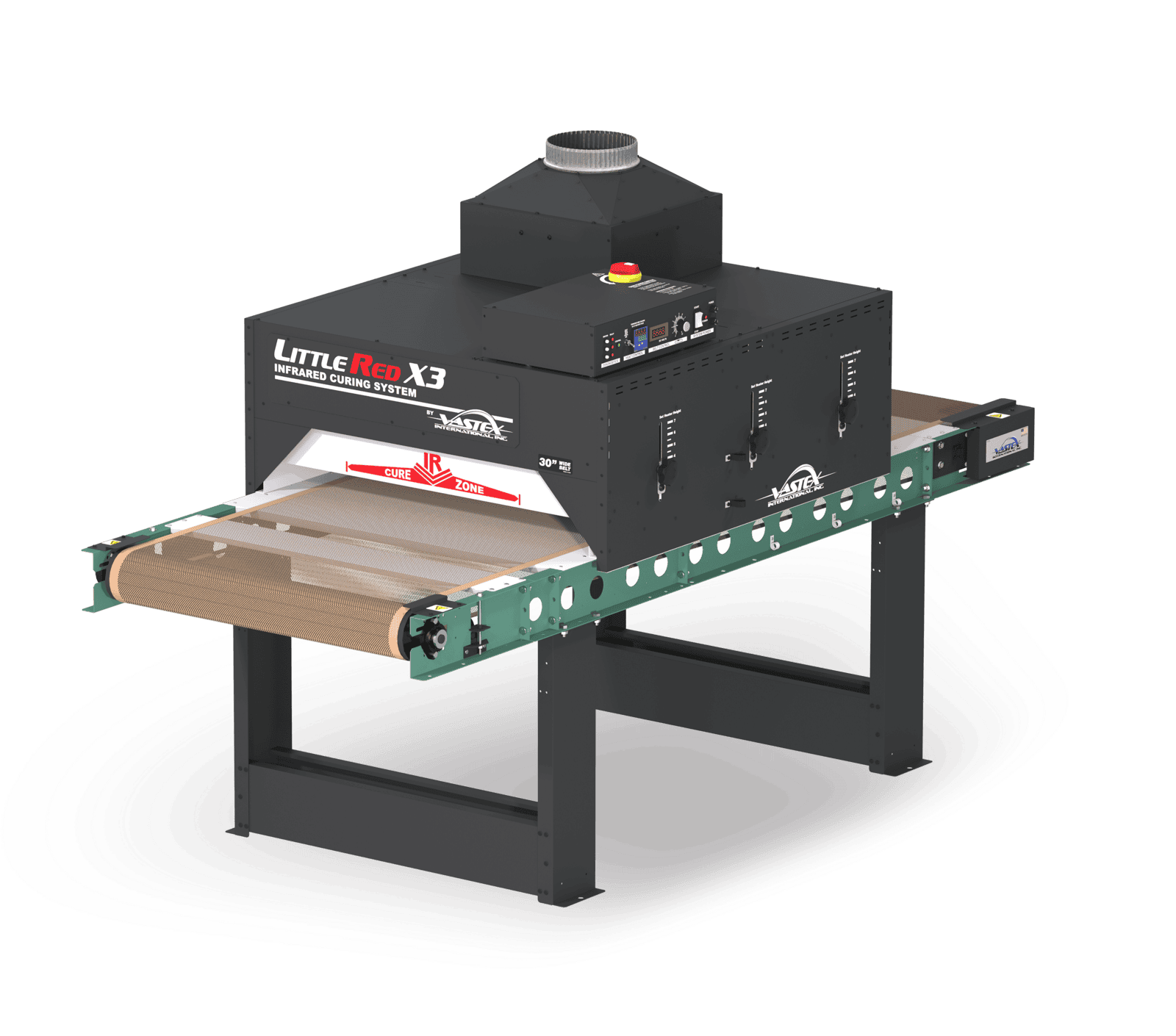

LittleRed X3-30 – Features a 30″ (76 cm) wide belt with two 240V/2,600-watt heaters (7,800 total watts)

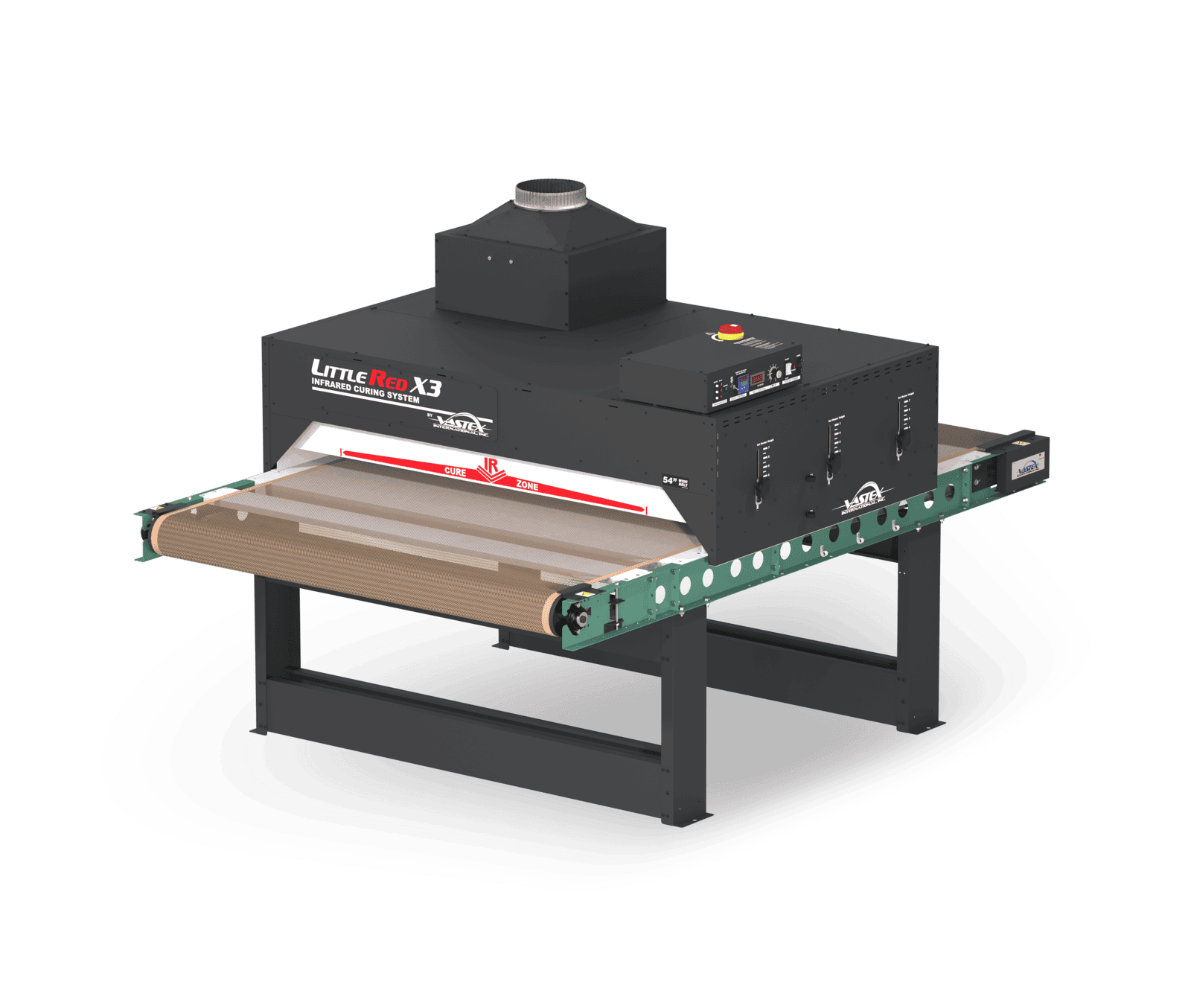

LittleRed X3-54 – Features a 54″ (137 cm) wide belt with two 240V/5,200-watt heaters (15,600 total watts)
LittleRed X3-78 – Features a 78″ (198 cm) wide belt with two 240V/7,800-watt heaters (23,400 total watts) for ultra high-volume curing across oversized prints, all-over tees, and large format garments

Grow Without Limits

The modular design of the LittleRed X3 makes it a smart investment. As your production scales, your dryer can scale with it—no need to start over with a bigger unit. Simply add chambers or belt extensions as needed.

**Throughput Capabilities*:**

Plastisol Prints – Cure up to 720 garments/hour
Water-Based or Discharge Prints – Up to 240 garments/hour
DTG Digital White Ink – Up to 185 garments/hour at 2.5 minutes dwell time

*Actual output depends on ink type, garment, and configuration

Whether you’re running complex prints or high-speed production, the Vastex LittleRed X3 Conveyor Dryer gives you the power, control, and reliability to keep your shop productive and your prints flawless.

Need help configuring the right model for your shop? Contact River City Supply—we’re happy to help you build a setup that works for your production needs today and tomorrow.

Technical Specifications

Vastex LittleRed X3 Conveyor Dryer – Technical Specifications

Specification	LR-X3-30	LR-X3-54	LR-X3-78
Heater Configuration	(2) 240V / 2,600W heaters	(2) 240V / 5,200W heaters	(2) 240V / 8,900W heaters
Total Wattage	7,800 watts	15,600 watts	26,700 watts
Belt Width	30 in. (76 cm)	54 in. (137 cm)	78 in. (198 cm)
Conveyor Length	66 in. (167.6 cm)	66 in. (167.6 cm)	102 in. (260 cm)
Heater Warranty	5 years	5 years	5 years
Defect Warranty	3 years	3 years	3 years
Shirts/hr (Plastisol)	360+ @ 25 secs	720+ @ 25 secs	1,080+ @ 25 secs
Shirts/hr (Water-Based/Discharge)	180+ @ 70 secs	370+ @ 70 secs	555+ @ 70 secs
Shirts/hr (DTG/Digital White Ink)	51 @ 2 mins	123 @ 2.5 mins	185 @ 3 mins
Time in Tunnel Range	22 sec – 3 min 10 sec	22 sec – 3 min 10 sec	22 sec – 3 min 10 sec
Belt Speed Range	0.7 – 9.3 FPM (0.2 – 2.8 MPM)	0.7 – 9.3 FPM (0.2 – 2.8 MPM)	0.7 – 9.3 FPM (0.2 – 2.8 MPM)
Exhaust (Free Air)	388 CFM (11 CMM)	550 CFM (15.6 CMM)	1,100 CFM (31.2 CMM)
Exhaust Diameter	8 in. (20.32 cm)	8 in. (20.32 cm)	8 in. (20.32 cm)
Overall Length	66 in. (168 cm)	66 in. (168 cm)	102 in. (260 cm)
Overall Width	41 in. (105 cm)	65 in. (166 cm)	89 in. (226 cm)
Overall Height	50 in. (127 cm)	50 in. (127 cm)	54 in. (137 cm)
Chamber Length	27 in. (69 cm)	27 in. (69 cm)	41 in. (104 cm)
Chamber Infeed Width	33.5 in. (85 cm)	57.5 in. (146 cm)	81.5 in. (207 cm)
Chamber Infeed Height (Adjustable)	2 – 7 in. (5 – 17.7 cm)	2 – 7 in. (5 – 17.7 cm)	2 – 7 in. (5 – 17.7 cm)
Heat Range at Heater	0–900°F (0–482°C)	0–900°F (0–482°C)	0–900°F (0–482°C)
Heater Size	12″ x 24″ (30 x 61 cm)	12″ x 48″ (30 x 122 cm)	12″ x 72″ (30 x 183 cm)
Electrical Specs	240V / 37A / 1 Ph / 3-wire / 50–60Hz	240V / 71A / 1 Ph / 3-wire / 50–60Hz	240V / TBD A / 1 Ph / 3-wire / 50–60Hz
Unit Weight	304 lbs (137.9 kg)	424 lbs (193 kg)	850 lbs (385.6 kg)

Note: Please confirm electrical requirements and final amp draw of the X3-78 with the manufacturer, as it may vary based on configuration or power supply.
