ROQ Automatic Equipment Starter Package: Everything You Need to Complete Your Screen Printing Setup

Name: ROQ Automatic Equipment Starter Package: Everything You Need to Complete Your Screen Printing Setup - River City Supply
Price: 28475.36 USD
Availability: InStock

Vastex

Epson_T3170x_printer_package_transparent__81067 (1)

The ROQ Shop 1 Equipment Package is everything you need to run a professional screen printing shop around a ROQ automatic press — the only thing it doesn’t include is the press itself. It bundles the full pre-press and curing workflow into one matched setup: a printer for film positives, a screen-drying cabinet, an LED exposure unit, a washout booth, and a conveyor dryer. Coat and burn screens, wash them out, print, and cure — all covered.

Everything but the press
A complete shop around your ROQ

Make your own film
Epson + RIP film-positive printer

Dry & expose screens
Dri-Vault cabinet + E-2000 exposure

Wash out & reclaim
VWB-3627 washout booth

Cure your prints
BigRed 4D 30″ conveyor dryer

One matched setup
Sized to work together, from one supplier

Everything but the press — one complete, matched setup. Film output, screen drying, exposure, washout and curing. Questions? Call 512-454-0505.

$28,475.36

As low as $635 per month with ACG Equipment Financing

Category: Screen Printing Equipment Packages

Description

ROQ Shop 1 — Everything Your Shop Needs Except the Press

Buying an automatic press is only half of a print shop. The ROQ Shop 1 package is the other half — the complete pre-press and curing workflow that turns a ROQ YOU or ROQ Next press into a fully operational shop. Output your own film, coat and dry screens, burn sharp stencils, wash out and reclaim, and cure your finished prints — all with matched, professional equipment sized to work together.

A Complete Screen-Printing Workflow

Every step of making and finishing a print — except the printing itself — is in this package. Here’s how the pieces work together:

#	Stage	Included product	What it’s for
1	Make your film positives	Epson T3170x Film-Positive Printer Package	A 24″ Epson SureColor T3170X bundled with CADlink FilmMaker RIP software, UV-blocking Chromaline AccuInk black ink and waterproof AccuJet film. It outputs the dense, sharp black film positives — your artwork and color separations — that you burn onto screens.
2	Coat & dry your screens	Vastex Dri-Vault Drying Cabinet (VDC-2536)	A light-tight, heated, filtered-air cabinet that dries emulsion-coated screens dust-free — so they’re ready to expose fast and clean. Positive-pressure filtered airflow keeps dust off the wet emulsion.
3	Expose (burn) your screens	Vastex E-2000 25×36 LED Exposure Unit	The heart of screen-making: six high-output 30″ LED bars, an LCD touchscreen with up to 10 presets, and a ring-blower vacuum (4–6 second draw-down) burn crisp, detailed stencils on screens up to 25×36.
4	Wash out & reclaim	Vastex VWB-3627 Washout Booth	A stainless-steel washout booth with a backlit frosted panel and screen standoff for rinsing the unexposed emulsion out of the screen to reveal your stencil — and for reclaiming screens so you can use them again.
5	Cure your prints	Vastex BigRed 4D 30″ Conveyor Dryer	The post-press step: a 30″ forced-air infrared conveyor dryer with a dual-air system and digital dual-zone control that fully cures plastisol, water-based, discharge and DTF prints as garments come off the press.

Between stage 4 and stage 5 you print on your automatic press. Every product above is linked — click to see full details.

The only thing it doesn’t include is the automatic press. This package is built to complete a ROQ YOU or ROQ Next automatic press — add the press and you have a full production shop.

What Each Piece Does

1 · Film positives

The Epson T3170x package prints the dense black film positives you burn onto screens — with RIP software, UV-blocking ink and waterproof film included.

2 · Dry your screens

The Dri-Vault cabinet dries emulsion-coated screens dust-free in about 20 minutes so they’re ready to expose.

3 · Expose screens

The E-2000 exposure unit burns crisp, detailed stencils on screens up to 25×36 with a touchscreen and vacuum draw-down.

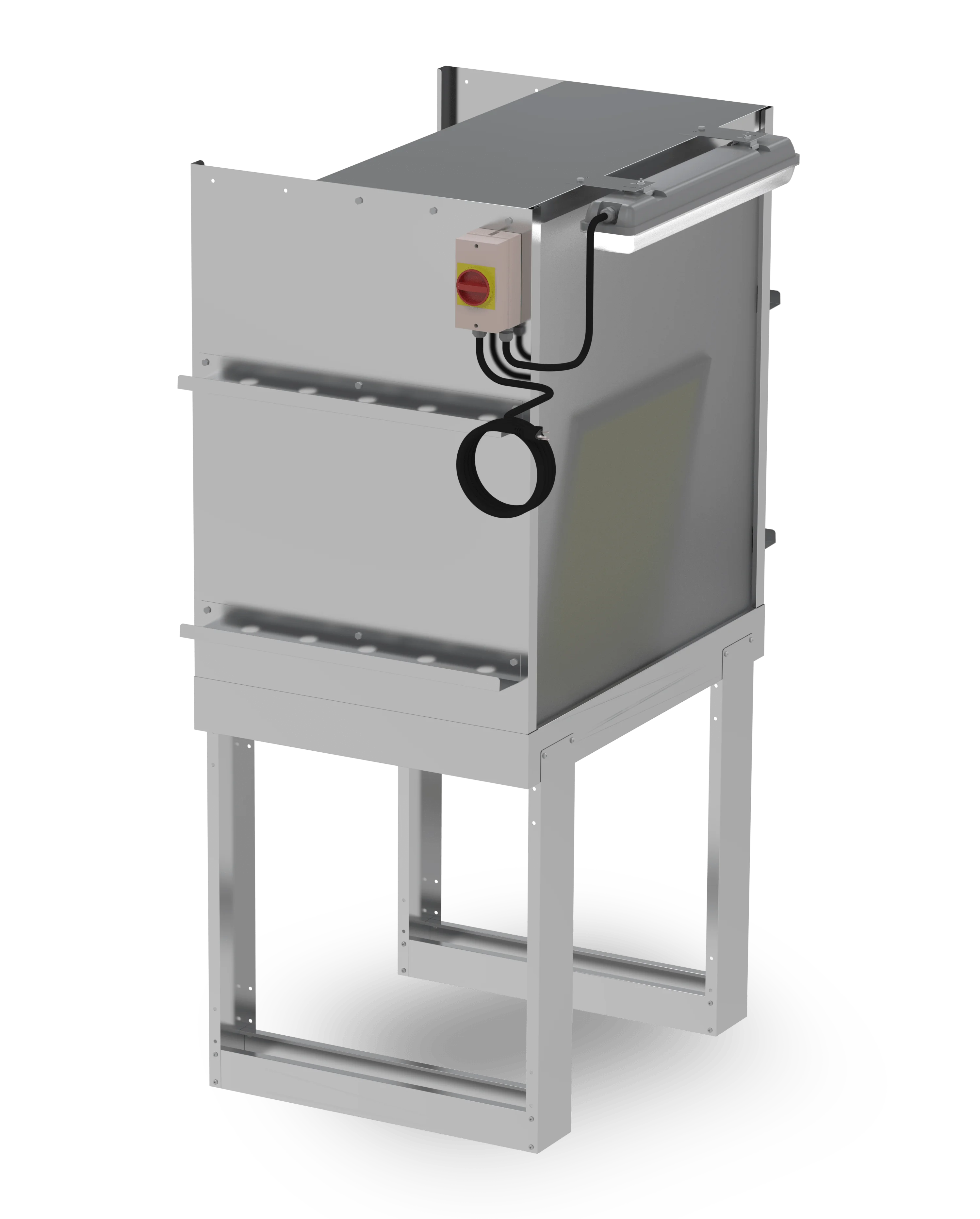

4 · Wash out & reclaim

The VWB-3627 washout booth rinses out the stencil and reclaims screens so you can use them again.

5 · Cure your prints

The BigRed 4D conveyor dryer fully cures plastisol, water-based, discharge and DTF prints coming off the press.

+ Add your press

The ROQ automatic press is the one piece not included — add it and your shop is complete.

Why Buy From River City Supply?

Real screen printers. Real support. Genuine equipment.

Real printers on staff

Talk to people who run this gear — we’ll help you spec, install and dial in your whole shop. Call (512) 454-0505.

Genuine equipment, full warranty

Authentic Vastex and Epson/Chromaline equipment backed by the manufacturer warranties.

Fast shipping + 1-hour pickup

Ships quick, and in-stock items are ready for in-store pickup within an hour in Central Texas.

Financing available

Spread the cost of your whole setup with simple financing — ask us how.

Everything under one roof

Presses, pre-press, curing and consumables — outfit your entire shop from one supplier.

Support after the sale

Family-run and here Monday–Friday, 9–5, long after your order ships.

Call (512) 454-0505

What else you’ll need

This package is the equipment. To start printing you’ll also want consumables: emulsion, screens & mesh, inks, squeegees, tape and garments. We stock it all — ask us to put together a starter consumables list.

Want to buy piece by piece?

Every item is available on its own — click any product in the table above. But the package pairs them in one matched, ready-to-run setup so nothing is mismatched or missing.

Build your complete shop

Tell us your space, power and volume — we’ll confirm this package fits your ROQ press and add the consumables to get you printing.

Call 512-454-0505

Add your ROQ press

See the ROQ automatic presses this package is built to complete.

Shop ROQ Presses

Technical Specifications

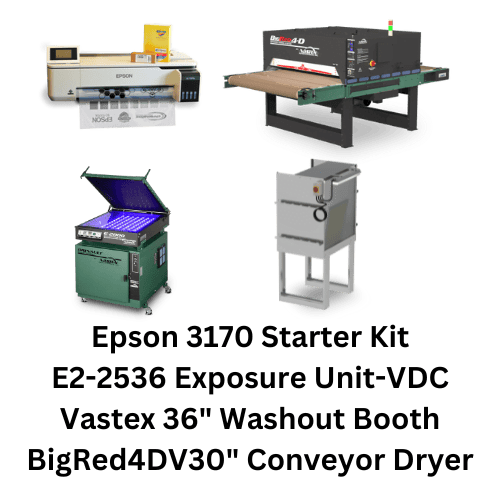

What’s Included in the ROQ Shop 1 Package

Five matched pieces of professional equipment — the full workflow to make screens and cure prints around your automatic press. Each is linked to its full product page.

STEP 1 · MAKE YOUR FILM POSITIVES

Epson T3170x Film-Positive Printer Package

A 24″ Epson SureColor T3170X bundled with CADlink FilmMaker RIP software, UV-blocking Chromaline AccuInk black ink and waterproof AccuJet film. It outputs the dense, sharp black film positives — your artwork and color separations — that you burn onto screens.

Key specs: 24″ wide · CADlink FilmMaker RIP · AccuInk black + AccuJet film · 150+ LPI halftones

STEP 2 · COAT & DRY YOUR SCREENS

Vastex Dri-Vault Drying Cabinet (VDC-2536)

A light-tight, heated, filtered-air cabinet that dries emulsion-coated screens dust-free — so they’re ready to expose fast and clean. Positive-pressure filtered airflow keeps dust off the wet emulsion.

Key specs: Holds ten 25×36 screens · dries in ~20 min · stainless finned heaters · variable heat / air-only

STEP 3 · EXPOSE (BURN) YOUR SCREENS

Vastex E-2000 25×36 LED Exposure Unit

The heart of screen-making: six high-output 30″ LED bars, an LCD touchscreen with up to 10 presets, and a ring-blower vacuum (4–6 second draw-down) burn crisp, detailed stencils on screens up to 25×36.

Key specs: Screens to 25×36 · 6 × 30″ HO LED · touchscreen presets · ring-blower vacuum 4–6s

STEP 4 · WASH OUT & RECLAIM

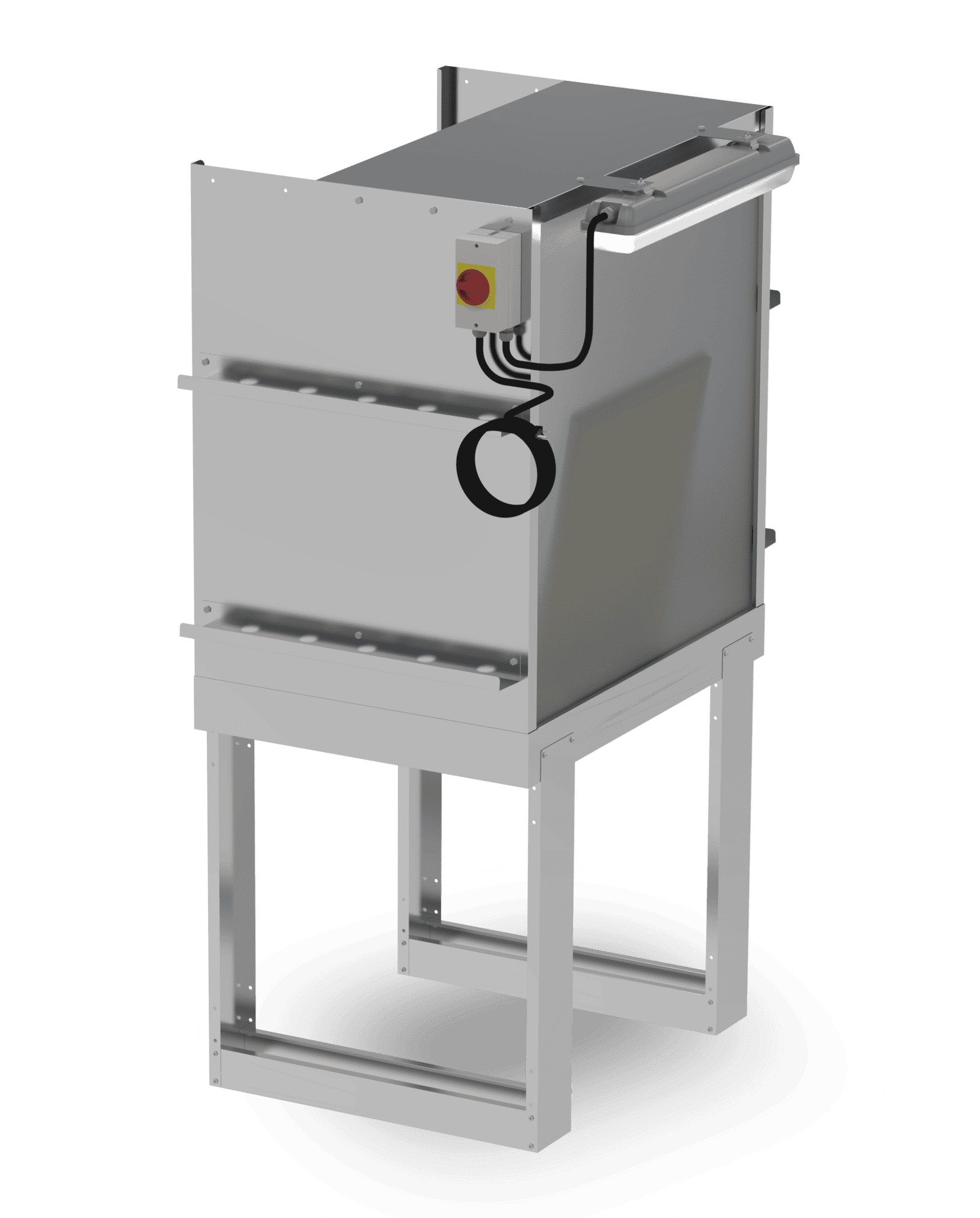

Vastex VWB-3627 Washout Booth

A stainless-steel washout booth with a backlit frosted panel and screen standoff for rinsing the unexposed emulsion out of the screen to reveal your stencil — and for reclaiming screens so you can use them again.

Key specs: Stainless steel · fits screens up to ~25×36 · frosted back panel · squeegee shelves

STEP 5 · CURE YOUR PRINTS

Vastex BigRed 4D 30″ Conveyor Dryer

The post-press step: a 30″ forced-air infrared conveyor dryer with a dual-air system and digital dual-zone control that fully cures plastisol, water-based, discharge and DTF prints as garments come off the press.

Key specs: 30″ belt · 11,400 W · dual-air system · digital dual-zone PID · cures all ink types

The only thing it doesn’t include is the automatic press. This package is built to complete a ROQ YOU or ROQ Next automatic press — add the press and you have a full production shop.

Add Your Press & Consumables

ROQ Automatic Presses
The one piece not included Emulsions & Stencil
Coat your screens Screens, Frames & Mesh
Frames to print with Screen Printing Inks
Plastisol & water-based Squeegees
Pull your prints

Technical Sheets / Safety Data Sheets / Documents

FREQUENTLY ASKED QUESTIONS

ROQ Shop 1 Package — Frequently Asked Questions

What is the ROQ Shop 1 package?

It’s a complete screen-printing equipment package that surrounds a ROQ automatic press with everything else a shop needs: a film-positive printer, a screen-drying cabinet, an LED exposure unit, a washout booth and a conveyor dryer — one matched, ready-to-run setup.

What’s included?

Five pieces: the Epson T3170x film-positive printer package, the Vastex Dri-Vault drying cabinet, the Vastex E-2000 25×36 LED exposure unit, the Vastex VWB-3627 washout booth, and the Vastex BigRed 4D 30″ conveyor dryer.

What’s NOT included?

The automatic press. This package is designed to complete a ROQ YOU or ROQ Next press — add the press and you have a full production shop. You’ll also supply consumables (emulsion, screens, inks, squeegees, tape, garments).

Which press does it pair with?

It’s built for ROQ automatic presses — the ROQ YOU and ROQ Next in particular. See the ROQ presses to add one.

Do I need anything else to start printing?

Just consumables: emulsion, screens & mesh, inks, squeegees, tape and blank garments. Tell us your work and we’ll build a starter list.

Can I buy the pieces separately?

Yes — every item links to its own product page. The package simply bundles them as one matched setup so nothing is mismatched or forgotten.

Why buy the package instead of piecing it together?

The pieces are sized to work together (screen sizes, dryer width, film width all match), it’s one order and one point of support, and it can be financed as a single setup — so you get printing faster with no gaps.

Do you help set it up?

Yes. We’re screen printers ourselves — call (512) 454-0505 and we’ll help you spec the space and power, install, and dial everything in.
