STS 24″ XPD-924D DTF Printer – Dual-Head Performance, Professional Output, High-Speed Production – FREE SHIPPING
STS
The STS 24″ XPD-924D Direct-to-Film Printer is the fastest dual-head 24″ DTF printer on the market — engineered for professional garment decorators who demand production speed, precision, and reliability. Featuring dual staggered AccuFine HD printheads, a built-in white ink circulation system, and fully automated print management, the XPD-924D delivers vibrant, durable DTF transfers at up to 188 ft²/hr — backed by a US-based STS support team of 12–15 technical specialists.
🆕 Free Shipping Over $200|
📞 (512) 454-0505
$24,995.00
Description
The STS XPD-924D: Built for Professionals, By Professionals
The XPD-924D is STS’s flagship 24-inch DTF printer — designed for shops that need real production output, not a hobby machine. With dual staggered AccuFine HD printheads, a precision heavy-duty aluminum rail system, and a fully integrated white ink circulation system, this printer is built to run all day, every day, with minimal downtime and maximum consistency. Whether you are a screen printer adding DTF to your menu or a dedicated DTF shop scaling production, the XPD-924D delivers the speed, quality, and support infrastructure to get it done.
XPD-924D Key Features
Two Epson piezo printheads in a staggered configuration deliver smooth gradations, sharp fine lines, and vibrant color at speeds that single-head printers can’t match. The staggered layout eliminates banding seams and improves uniformity across the full 24.5″ print width.
White ink contains heavy titanium dioxide pigment that settles rapidly when idle. The XPD-924D’s built-in active circulation system keeps white ink continuously moving through the lines — even while the printer is idle — preventing clogs, reducing maintenance, and maximizing uptime.
The XPD-924D’s Dropmaster 2 system automatically aligns both printheads bidirectionally via built-in sensors. Accurate head alignment eliminates the ghosting and double-imaging that plague manual setups, ensuring clean, sharp prints at high speed.
Feed Master automatically adjusts the media feed rollers for the loaded film. Consistent, precise media advancement eliminates misregistration, banding from uneven feeding, and film buckling — common failure points on lesser machines.
i-screen applies multiple printhead waveforms simultaneously to scatter ink dot placement in a way that visually breaks up any residual banding pattern. The result is smooth, photographic-quality output even at high-speed production modes.
An upgraded front dryer system accelerates ink curing on the film after printing, reducing the wet zone between the print and powder application stages. Faster drying means faster hand-off to the powder shaker and fewer adhesion issues.
The XPD-924D’s precision-machined aluminum rail system maintains printhead carriage stability across the full print width — critical for consistent dot placement and color-to-color registration on long print runs.
MSM companion software provides remote access, real-time print history tracking, and job cost analysis. Monitor your printer’s status, estimate consumable costs per job, and diagnose issues without walking to the machine.
What’s Included in the Box
Print Mode Speed Reference
| Mode | Resolution | Passes | Speed (ft²/hr) | 328ft Roll |
|---|---|---|---|---|
| High Speed | 900×600 dpi | 3 | 188 ft²/hr | ~3.5 hrs |
| Production | 600×1200 dpi | 4 | 145 ft²/hr | ~4.5 hrs |
| Quality | 900×1200 dpi | 6 | 96 ft²/hr | ~6.7 hrs |
| High Quality | 1200×1200 dpi | 8 | 72 ft²/hr | ~9.0 hrs |
See the STS XPD-924D in Action
XPD-924D vs. Competing 24″ DTF Printers
| Feature | STS XPD-924D | Typical Competitor |
|---|---|---|
| Dual staggered printheads | ✓ | Varies |
| Built-in white ink circulation | ✓ | Rarely standard |
| Automatic bi-directional alignment | ✓ | Manual on most |
| Auto feed roller adjustment | ✓ | Manual |
| Multi-waveform banding mitigation | ✓ | ✗ |
| US-based technical support team | ✓ | Often overseas |
| OEM inks made in USA | ✓ | Typically imported |
| Pre-loaded RIP color profiles | ✓ | Manual ICC setup |
| AATCC 61 2A washability certified | ✓ | Rarely documented |
Transfer Application Guide — Heat Press Settings
| Fabric Type | Temp | Dwell Time | Pressure | Peel | Notes |
|---|---|---|---|---|---|
| 100% Cotton | 300–320°F | 12–15 sec | Medium-Firm | Cold | Best adhesion; most forgiving substrate for DTF. |
| 50/50 Poly-Cotton | 305–315°F | 12–15 sec | Medium-Firm | Cold | Most popular DTF substrate; consistent results. |
| 100% Polyester | 275–295°F | 10–12 sec | Light-Medium | Cold | Lower temp prevents dye migration. Always test. |
| Athletic/Performance | 275–295°F | 10–12 sec | Light | Warm | DTF excels here — stretches without cracking. |
| Nylon | 265–285°F | 10–12 sec | Light | Cold | Heat-sensitive — test on your specific nylon first. |
| Denim / Canvas | 305–315°F | 15–18 sec | Firm | Cold | Heavier weave needs longer dwell for full bond. |
Press your garment 3–5 seconds before applying the transfer to remove all moisture and wrinkles. Moisture is the #1 cause of DTF adhesion failure.
Compatible Fabric Types
| Fabric / Substrate | Compatibility | Pre-Treatment | Notes |
|---|---|---|---|
| 100% Cotton | Excellent | None | Best adhesion; ideal starting point |
| 50/50 Poly-Cotton | Excellent | None | Most popular DTF substrate |
| 100% Polyester | Excellent | None | Lower press temp; test for dye migration |
| Athletic/Performance | Excellent | None | Stretches and recovers without cracking |
| Tri-Blend | Very Good | None | Soft feel; test wash recommended |
| Nylon | Good | None | Lower temp; always test specific type |
| Denim / Canvas | Very Good | None | Longer press time for thick weave |
| Silk / Delicates | Not Recommended | — | Heat press temps damage delicate fibers |
Complete Your XPD-924D Setup
500ml or 1-Liter — USA-made, exclusively formulated for the XPD-924D. CMYK + White. Required for printhead warranty eligibility.
Double-sided matte film optimized for the XPD-924D’s 24.5″ print width. Hot or cold peel. V7, V8, EV1, KV1 formulations available.
24″ automatic TPU powder shaker with infrared dryer and built-in air purifier. The perfect production companion to the XPD-924D.
Professional DTF RIP software included with the XPD-924D. Pre-configured XPD2 ink profiles — print-ready out of the box.
The XPD-924D qualifies for equipment financing through MMP Capital. Call (512) 454-0505 to get a quote and discuss your options.
The STS XPD-924D ships free anywhere in the continental USA. It drop ships directly from STS Inks in Boca Raton, Florida.
Complete Your STS XPD-924D Setup
OEM-formulated CMYK & White cartridges — exclusively for the XPD-924D. Required for warranty coverage.
Same XPD2 formula in high-capacity 1-liter format. Fewer cartridge changes on high-volume runs.
Double-sided matte roll matched to the XPD-924D’s 24.5″ print width. V7, V8, EV1, KV1 available.
Automatic 24″ IR powder shaker engineered to pair with the XPD-924D. Bundle pricing available.
Premium hot-melt TPU powder. Bonds your transfers to cotton, poly, blends, nylon, and more.
Technical Specifications
STS XPD-924D Technical Specifications
| Specification | Detail |
|---|---|
| Printhead Technology | Drop-on-demand Micro Piezo Inkjet — 2 staggered AccuFine HD printheads |
| Max Resolution | 1200 × 1200 dpi (300/600/900/1200 dpi print modes) |
| Max Print Width | 24.5 inches (625 mm) |
| Max Speed — High Speed | 17.5 m²/hr / 188 ft²/hr at 900×600 dpi, 3-pass |
| Max Speed — Production | 13.5 m²/hr / 145 ft²/hr at 600×1200 dpi, 4-pass |
| Max Speed — Quality | 9.0 m²/hr / 96 ft²/hr at 900×1200 dpi, 6-pass |
| Max Speed — High Quality | 6.7 m²/hr / 72 ft²/hr at 1200×1200 dpi, 8-pass |
| Ink Slots | 6 total: 4 CMYK + 2 White |
| Ink Type | STS XPD2 DTF Ink Cartridges 500ml (exclusively) |
| White Ink System | Built-in continuous white ink circulation |
| Printhead Height Adjustment | 4-level: 1.5mm / 2.0mm / 2.5mm / 4.0mm |
| Media Width | Up to 25 inches (635mm) |
| Media Capacity | Roll up to ø5.9″ dia / 2″ & 3″ cores — max 66 lbs |
| Max Media Thickness | 0.3mm / 0.8mm / 1.3mm / 2.8mm (4 levels) |
| Automation | Dropmaster 2, Feed Master, i-screen, Media Tracker, Auto Cleaning |
| RIP Software | CADlink™ Digital Factory v11 & neoStampa DELTA Inēdit (included) |
| Dryer System | Improved front dryer — 20% faster ink dry times |
| Interface | Gigabit Ethernet (1000BASE-T) |
| Operating Environment | 68–77°F (20–26°C) / 40–55% relative humidity |
| Power Consumption | 70W operating / 30W standby |

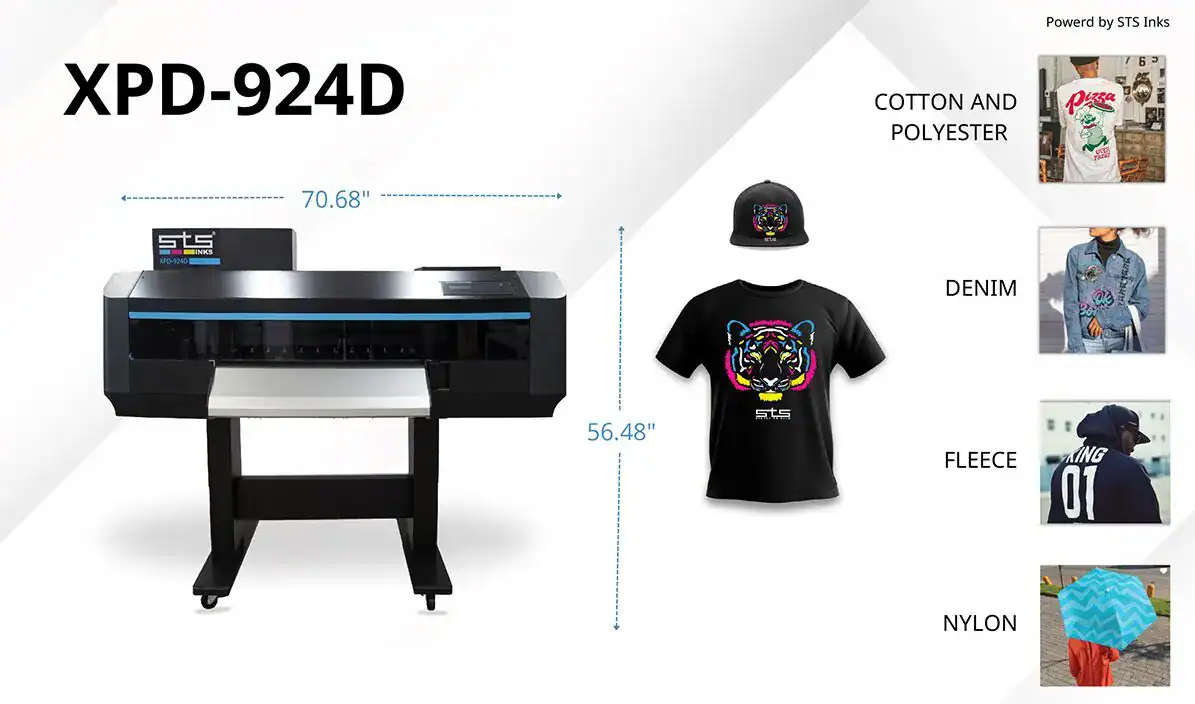

| Dimensions (W×D×H) | 70.68″ × 35.23″ × 56.48″ (with stand, cover closed) |
| Weight | Body: 310 lb / Stand: 70.5 lb |
| Washability Certification | AATCC 61 Method 2A |
| Companion Software | Mutoh Status Monitor (MSM) — print history, job cost, remote access |
| Warranty | STS manufacturer warranty — US-based support team of 12–15 technicians |
| Ships | Free shipping — drops ships from STS Inks, Boca Raton, FL |
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions — STS XPD-924D DTF Printer
The XPD-924D requires STS XPD2 500ml or 1-Liter DTF Ink Cartridges — formulated exclusively for this machine. Using any other ink will void the printhead warranty. Available at River City Supply: CMYK, White, and Cleaning Solution cartridges.
The XPD-924D prints up to 24.5 inches wide, making it ideal for full-front garment graphics, oversized designs, and gang sheets on 24″ DTF film rolls.
The XPD-924D bundles with either CADlink Digital Factory v11 or neoStampa DELTA Inēdit — both are professional-grade DTF RIP software packages with pre-loaded XPD2 color profiles. No additional ICC calibration is needed to start printing.
Yes — all DTF printers require a separate TPU powder shaker and curing step after printing. STS makes the S-20 24″ Automatic Powder Shaker specifically designed to pair with the XPD-924D. It’s available here at River City Supply.
STS provides US-based technical support through a team of 12–15 specialists in Florida. River City Supply also provides pre-sale consultation and can connect you with STS’s installation and training resources. This is not a set-it-and-forget-it desktop machine — plan for a professional setup and onboarding process.
STS offers a printhead warranty program when you register your purchase and use STS XPD2 inks exclusively. The warranty covers printhead failure under normal operating conditions. Using third-party inks voids this protection.
Yes. The XPD-924D has a built-in continuous white ink circulation system that keeps white ink agitated at all times — even while idle. This prevents settling and pigment separation without any manual intervention.
Yes. The XPD-924D qualifies for equipment financing through MMP Capital. River City Supply can assist you with the application. Call (512) 454-0505 to get started.
Yes — free shipping is included on the XPD-924D to anywhere in the continental US. It ships directly from STS Inks in Boca Raton, Florida.
High Speed (900×600 dpi, 3-pass) prints at 188 ft²/hr — ideal for production runs of full-color designs where maximum throughput matters. High Quality (1200×1200 dpi, 8-pass) prints at 72 ft²/hr — best for very fine detail, photographic gradients, or when print quality is the priority over speed. Most shops use Production mode (145 ft²/hr) as their daily default.
