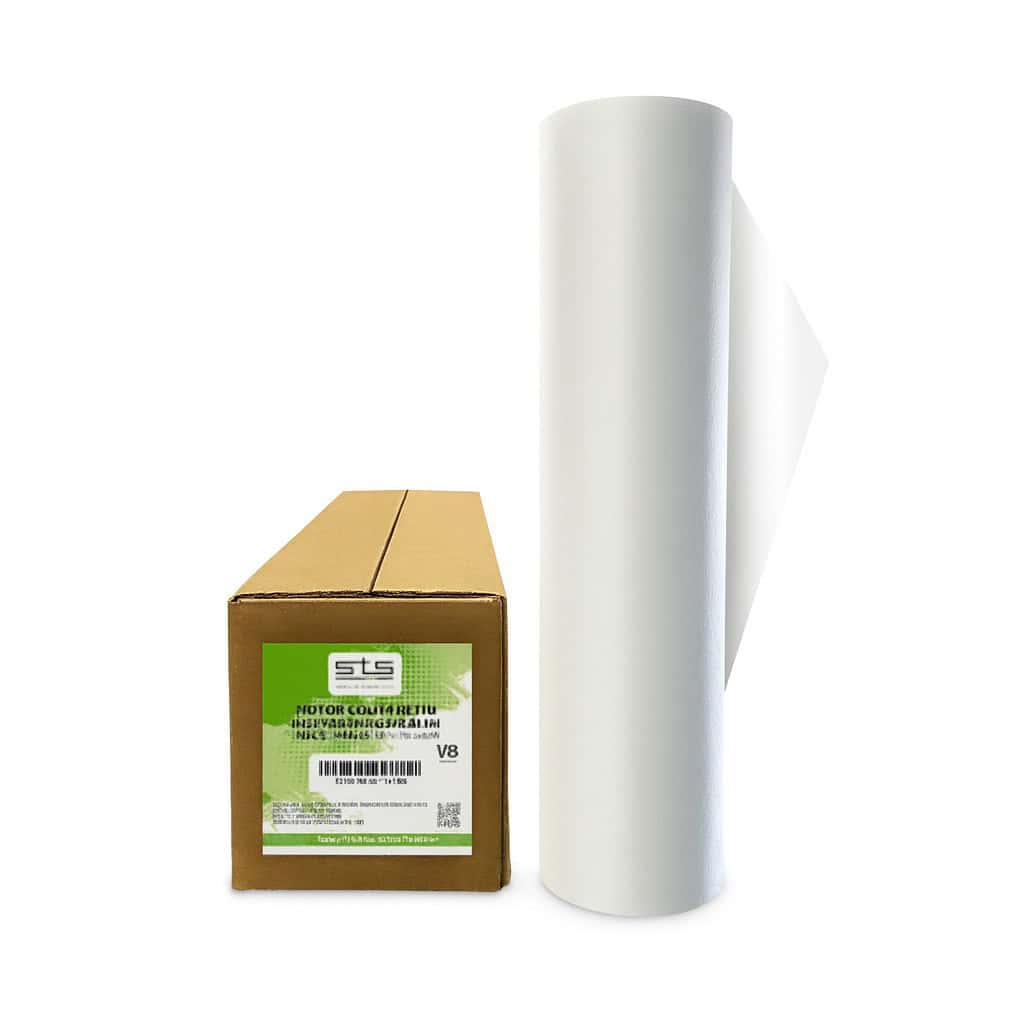

STS Inks 24″ DTF Film – Instant Hot or Cold Peel, Double-Sided Matte Direct-to-Film Transfer Roll
STS
STS 24″ DTF Transfer Film (V8) is a premium double-sided matte, instant hot or cold peel DTF film engineered for high-production wide-format DTF printing. Designed to pair directly with the STS XPD-924D and other 24″ DTF printers, this 328 ft roll delivers excellent ink adhesion, consistent powder grip, static-controlled feeding, and clean, sharp-edge releases — run after run, roll after roll.
🆕 Free Shipping Over $200|
📞 (512) 454-0505
$213.21
Description
Film Quality Is Not Optional — It’s Half the Transfer
DTF film is not a commodity. A cheap, poorly coated film feeds inconsistently, holds ink unevenly, and releases badly — producing transfers with rough edges, poor adhesion, or blotchy powder coverage. STS V8 film was developed and tested specifically to work with STS XPD2 inks and the XPD-924D’s vacuum conveyor feeding system. The double-sided matte construction solves the static and grip problems that plague single-coat films, and the instant hot/cold peel capability gives your operators the flexibility to run faster or maximize bond strength depending on the job.

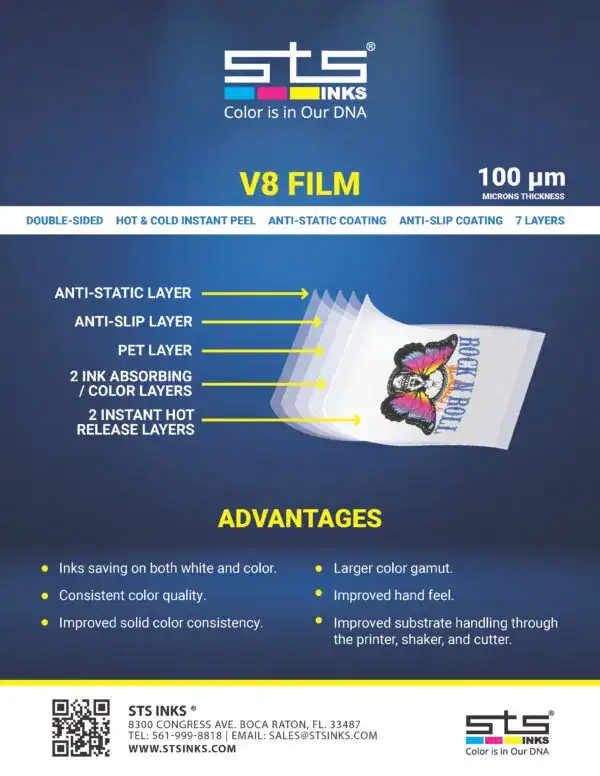

V8 Film Technical Advantages
The standard for premium DTF film. Matte coating on the print side gives ink a controlled, consistent surface to land on. Matte coating on the reverse side improves printer roller grip and reduces the electrostatic charge buildup that causes misfeeding and film buckling in wide-format printers.
Hot peel: remove the film immediately after pressing while still warm. This speeds up production significantly — no waiting for the transfer to cool. Cold peel: wait 10–30 seconds for the transfer to cool before peeling. Cold peel typically produces slightly stronger adhesion and is better for delicate or stretch fabrics. V8 supports both methods.
The print-side coating controls ink spread precisely — preventing bleeding, maintaining fine detail, and ensuring that white ink lays down a flat, even base. Ink that doesn’t spread stays where you put it, giving you sharper logos, cleaner gradients, and more accurate color.
After printing, DTF powder must stick uniformly to the wet ink surface. V8’s coating is formulated to hold powder evenly across the print area without creating bare spots or excess clumping — the two most common causes of patchy adhesion on finished transfers.
Wide-format DTF film feeding relies on static levels being predictable and low. STS V8’s double-sided matte construction significantly reduces static buildup compared to glossy or single-coat films, resulting in straight, consistent feeding through the XPD-924D’s media transport system.
At 328 linear feet per roll, V8 minimizes the number of roll changes during production runs. For the XPD-924D running at 22 ft/hr in Production mode, a single roll provides approximately 14–15 hours of continuous printing — a full shift and then some.
Hot Peel vs. Cold Peel — Which Should You Use?
Peel the film immediately after pressing while the transfer is still warm. Best for high-volume production runs on cotton and cotton-blend garments where throughput speed matters. Slightly lower bond strength than cold peel — but more than adequate for most production jobs.
Wait 10–30 seconds after pressing for the transfer to cool before peeling. Cold peel allows the TPU adhesive to fully solidify and grip the fabric fiber before the film is removed — maximizing bond strength. Recommended for polyester, nylon, stretch fabrics, and any application where wash durability is critical.
STS 24″ Film Version Comparison
| STS 24″ Film Version | Peel Type | Surface | Best For |
|---|---|---|---|
| V8 (this product) | Hot OR Cold Peel | Double-sided matte | High-speed production, all fabric types |
| V7 | Instant Hot/Cold Peel | Double-sided matte | Production runs, slightly different release profile |
| EV1 | Hot/Cold Peel | Double-sided matte | Multi-pack value; high-volume shops |
| KV1 | Hot/Cold Peel | Double-sided matte | Specialty applications; call for details |
Heat Press Application Settings
| Fabric Type | Temp | Dwell Time | Pressure | Peel | Notes |
|---|---|---|---|---|---|
| 100% Cotton | 300–320°F | 12–15 sec | Medium-Firm | Cold | Best adhesion; most forgiving substrate for DTF. |
| 50/50 Poly-Cotton | 305–315°F | 12–15 sec | Medium-Firm | Cold | Most popular DTF substrate; consistent results. |
| 100% Polyester | 275–295°F | 10–12 sec | Light-Medium | Cold | Lower temp prevents dye migration. Always test. |
| Athletic/Performance | 275–295°F | 10–12 sec | Light | Warm | DTF excels here — stretches without cracking. |
| Nylon | 265–285°F | 10–12 sec | Light | Cold | Heat-sensitive — test on your specific nylon first. |
| Denim / Canvas | 305–315°F | 15–18 sec | Firm | Cold | Heavier weave needs longer dwell for full bond. |
Store unused film rolls in their original packaging in a cool, dry environment. Keep vertical (never lay flat for extended periods). Avoid humidity above 60% and direct sunlight. Film that has absorbed moisture will feed poorly and produce adhesion problems.
Always print on the matte side. The smoother reverse side feeds against the printer rollers. On V8 film, both sides have a matte finish — the print side is the slightly rougher/more textured side. When in doubt, test print a small section first.
Fabric Compatibility
| Fabric / Substrate | Compatibility | Pre-Treatment | Notes |
|---|---|---|---|
| 100% Cotton | Excellent | None | Best adhesion; ideal starting point |
| 50/50 Poly-Cotton | Excellent | None | Most popular DTF substrate |
| 100% Polyester | Excellent | None | Lower press temp; test for dye migration |
| Athletic/Performance | Excellent | None | Stretches and recovers without cracking |
| Tri-Blend | Very Good | None | Soft feel; test wash recommended |
| Nylon | Good | None | Lower temp; always test specific type |
| Denim / Canvas | Very Good | None | Longer press time for thick weave |
| Silk / Delicates | Not Recommended | — | Heat press temps damage delicate fibers |
Everything You Need with Your STS Film
Premium hot-melt TPU adhesive powder — the bond between your transfer and the garment.
Automatic 24″ IR powder shaker matched for the XPD-924D + this 24″ film format.
OEM-formulated CMYK & White cartridges exclusively for the XPD-924D. Warranty-safe.
Same XPD2 formula in high-capacity 1-liter bags for reduced cartridge change frequency.
The 24″ dual-head production DTF printer this film was optimized for.
Technical Specifications
STS 24″ DTF Transfer Film V8 — Technical Specifications
| Specification | Detail |
|---|---|
| SKU | STS DTF.FILM.24.HC.V8 |
| Film Width | 24 inches (optimized for XPD-924D’s 24.5″ print width) |
| Roll Length | 328 ft (100 meters) |
| Film Construction | Double-sided matte coating |
| Peel Type | Instant hot peel OR cold peel — operator choice |
| Ink Adhesion | Excellent — matte surface holds ink without spreading or bleeding |
| Powder Adhesion | Improved powder grip vs. single-coat films |
| Static Control | Double-sided matte reduces static buildup for smoother feeding |
| Feeding Compatibility | Designed for wide-format DTF printers — vacuum conveyor compatible |
| Print Side | Matte coated side — ink is applied here |
| Release Characteristics | Consistent, clean release — sharp image edges, no tearing |
| Transfer Durability | Excellent stretch and wash durability when properly applied |
| Recommended Printer | STS XPD-924D (primary); any 24″ wide-format DTF printer |
| Drop Ships | Yes — from STS Inks, Boca Raton, FL |
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions — STS 24″ DTF Film V8
All STS 24″ films are double-sided matte with hot/cold peel capability, but they have slightly different coating formulations that affect release characteristics, powder adhesion, and compatibility with specific ink or environmental conditions. V8 is a high-production standard formula. For most shops running the XPD-924D, V8 or EV1 is the go-to. Call (512) 454-0505 for a recommendation based on your specific setup.
V8 is optimized for the XPD-924D but is compatible with any 24″ wide-format DTF printer using a vacuum conveyor or roller feed system. It is NOT designed for desktop DTF printers — use a 13″ film for desktop systems.
Print on the matte side — the side with slightly more texture. On V8 film, both sides are matte, but the print side has a finer, more receptive coating. When loading the roll, the print surface should face the printhead. When in doubt, your RIP software settings and printer manual specify media orientation.
For most cotton and cotton-blend t-shirts in a production environment, hot peel is fine and speeds things up. For polyester, athletic wear, nylon, or any stretch fabric, use cold peel — let the transfer cool 15–30 seconds before peeling to allow the TPU to fully set and grip the fibers.
At 24.5″ wide, a 328ft (100m) roll provides approximately 100 meters of printable film. A 12″ tall full-front design in portrait orientation allows approximately 328 prints per roll. Gang sheets with smaller designs produce significantly more transfers per roll.
STS DTF film drop ships directly from STS Inks in Boca Raton, Florida. Orders placed before 3:30 PM CT typically ship same day. Free shipping on orders over $200.
