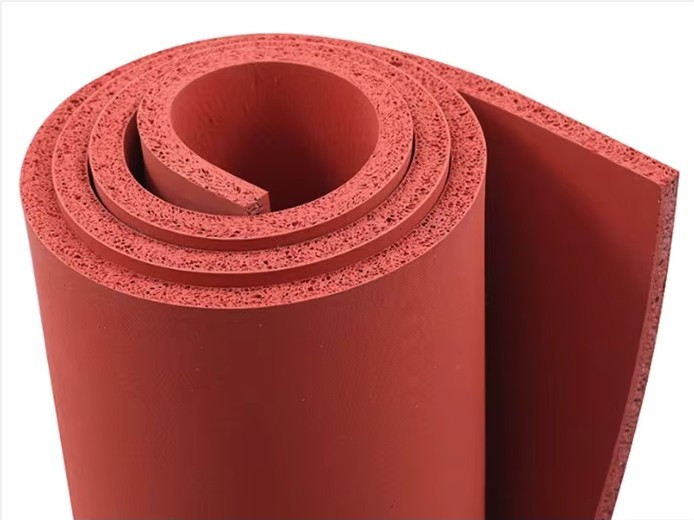

Silicone Rubber Replacement for Heat Press Platens – 3/8″ Thick, 24″ Wide Roll (Sold by the Foot)
Action Engineering
Silicone Rubber Replacement for Heat Press Platens is a 3/8″ thick, 24″ wide, high-temperature silicone rubber roll that restores consistent pressure distribution to worn heat press lower platens. Sold by the linear foot — enter your footage in the Qty field. Compatible with Hotronix Auto Clam, MAXX Clam, Fusion-style, Geo Knight, and most commercial heat presses. Red color. SKU: ACT SFTRBR24-RED. Orders over 15 ft require a freight quote — call before ordering.
$38.00
Description
Silicone Rubber Replacement — Restore Your Heat Press to Factory Performance
Heat press silicone rubber pads wear out. Over months and years of production use, the factory silicone compresses, hardens, develops flat spots, and loses its ability to distribute pressure evenly across the platen surface. The result: incomplete transfers, inconsistent adhesion, cold spots in corners, and scorching in high-pressure zones. Replacing the worn silicone rubber is the fastest and most cost-effective way to restore your press to like-new performance — without buying a new machine. This high-temperature 3/8″ silicone rubber is cut from 24″ wide rolls to your exact linear footage. Red color for easy identification.
Key Features
Most commercial heat press platens use 3/8″ silicone rubber as the standard pad thickness. This replacement matches factory specifications exactly — no shimming, no adjustments, no pressure recalibration needed after installation.
Engineered specifically for sustained heat press operating temperatures. Unlike foam or rubber alternatives, this silicone rubber maintains its compression recovery and heat distribution properties through tens of thousands of press cycles.
Enter your required footage in the Quantity field at checkout. Each unit = 1 linear foot of 24″ wide silicone rubber, cut fresh from the master roll. Order exactly what you need for your platen dimensions without paying for excess material.
Compatible with most commercial heat press lower platens including Hotronix Auto Clam, MAXX Clam, Fusion IQ, Air Fusion IQ, Geo Knight presses, and generic clamshell and swing-away commercial presses. Measure your platen dimensions before ordering.
Even a partially compressed platen pad causes significant transfer quality problems — one side transfers cleanly while the other peels. New silicone rubber restores full surface contact across the entire platen, eliminating the pressure gradient that causes inconsistent results.
The red color provides immediate visual confirmation of full platen coverage and helps identify any areas not properly covered during installation.
Is It Time to Replace Your Silicone Pad?
| Symptom | Likely Cause | Solution |
|---|---|---|
| Transfers peel in corners or edges | Uneven pressure from compressed pad | Replace silicone rubber |
| One side of platen transfers better than the other | Pad worn unevenly across surface | Replace silicone rubber |
| Scorching or burning on same spot every press | Hardened spot creates high-pressure zone | Replace silicone rubber |
| Pad visibly compressed, cracked, or deformed | End of service life | Replace silicone rubber |
| DTF or HTV transfers require excessive pressure | Pad no longer provides proper cushion | Replace silicone rubber |
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | ACT SFTRBR24-RED |
| Material | High-temperature silicone rubber |
| Thickness | 3/8″ (9.5mm) |
| Width | 24″ (610mm) |
| Color | Red |
| Sold As | Linear foot — continuous cut from master roll |
| Min. Order | 1 linear foot |
| Max Order (standard shipping) | Up to 15 linear feet — orders over 15 ft require freight quote |
| Temperature Rating | High-temperature — suitable for sustained heat press operation |
| Application | Heat press lower platen resurfacing / replacement |
| Compatibility | Universal — Auto Clam, MAXX Clam, Fusion IQ, Air Fusion IQ, Geo Knight, most commercial presses |
| How to Order | Enter linear feet required in Qty field at checkout |
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions — Silicone Rubber Replacement for Heat Press Platens
Measure the length of your heat press platen in inches, then convert to feet. For example, a 16-inch platen = 1.34 feet — order 2 feet to have a small margin. Enter the total linear feet in the Quantity field at checkout. The rubber is 24 inches wide and will be cut to your specified length from the master roll.
This silicone rubber is compatible with most commercial heat press lower platens — including Hotronix Auto Clam, MAXX Clam, Fusion IQ, Air Fusion IQ, Geo Knight DK20S/DK25, and most clamshell and swing-away commercial presses. If you have a specific model question, call (512) 454-0505.
Yes. Orders over 15 linear feet of silicone rubber require a custom freight quote due to package dimensions and weight. Please call (512) 454-0505 before placing an order over 15 feet so we can provide accurate freight pricing for your location.
Yes — 3/8 inch is the standard factory thickness for most commercial heat press silicone pads. This replacement matches that specification, so no pressure adjustment is needed after installation.
Silicone rubber replacement typically requires a high-temperature silicone adhesive or spray adhesive to bond to the platen base plate. This is sold separately. Clean the platen surface thoroughly before installation and allow full adhesive cure time before pressing.
Reviews
You May Also Like
Related products
-
Hotronix® Heat Press Caddie™ – Mobile Stand for Auto Clam & MAXX® Clam Heat Presses
Price range: $350.00 through $550.00 -
GeoKnight DK3D Digital Knight Double-Wide Mug Press – 10″ Sublimation Mug Heat Press for Full Wrap Printing
$1,350.00 -
GeoKnight DC8 6×8 Digital Combo Swing Away Heat Press
$1,525.00 -

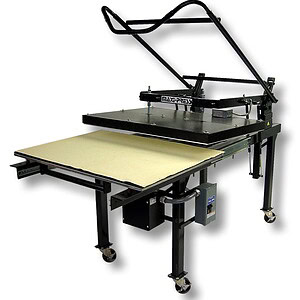

GeoKnight Maxi 44″x 64” Heat Press
