STS S-20 24″ Automatic DTF Powder Shaker – With Infrared Dryer & Built-In Air Purifier – Designed for XPD-924D – FREE SHIPPING
STS
The STS S-20 24″ Automatic DTF Powder Shaker is the professional powder application and curing system built to complete the XPD-924D production line. This fully automated system applies TPU adhesive powder uniformly, removes excess powder, and melts it using top and bottom infrared heating — all while a built-in air purifier protects your operators and shop environment. Stop hand-dusting. Start running production.
🆕 Free Shipping Over $200|
📞 (512) 454-0505
$13,782.00
Description
Why Your DTF Operation Needs the S-20 — Not a Manual Shaker
Every DTF transfer requires adhesive TPU powder applied after printing and before curing. On a desktop printer, hand-shaking powder is manageable. On a 24″ production printer printing at 188 ft²/hr, it’s a bottleneck — and a health hazard. The STS S-20 eliminates the hand-dusting step entirely, delivering uniform powder coverage, consistent IR melt temperatures, and safe filtered exhaust — so your production line keeps moving and your operators stay protected.
S-20 Core Features

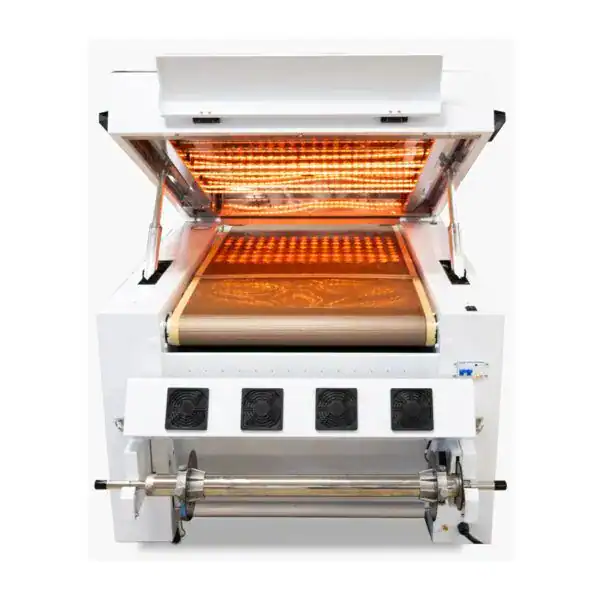

Most powder shakers use a single top IR element. The S-20 uses both top and bottom infrared heating to ensure complete, even powder melt across the full film width — eliminating cold spots that cause adhesion failure or transfer peeling in the wash.
The S-20’s heavy-duty motorized hood opens and closes automatically via pneumatic pistons. This allows hands-free operation during production runs and ensures the hood seals correctly for optimal IR performance during curing.
The vacuum conveyor grips the printed film and pulls it through the powder chamber and IR section at a consistent, controllable speed. Tensioned feed and take-up reels on both ends keep the film perfectly flat — no buckling, tracking, or misalignment.
Every parameter — conveyor speed, top and bottom IR temperatures, dwell time — is controlled from the large 7″ HMI screen. No dip switches, no cryptic menus. Set your profile, save it, and run.
DTF powder is ultra-fine and becomes airborne during application. Breathing TPU powder particulate is a serious health risk. The S-20’s integrated air purification system captures powder at the source with HEPA and activated charcoal filters. Replacement filters available from RCS.
Automatic mode runs the full powder application and curing cycle hands-free. Manual mode lets operators control individual stages for setup, testing, or single-piece production. Both modes are accessible directly from the HMI touchscreen.
DTF Powder Process: Step-by-Step
See the STS XPD-924D & S-20 System in Action
S-20 vs. Manual Powder Application
| Factor | STS S-20 | Manual Shaking |
|---|---|---|
| Powder uniformity | Consistent every time | Operator-dependent |
| Air filtration | Built-in HEPA + charcoal | None — airborne particles |
| IR curing | Top + bottom integrated | Separate oven required |
| Throughput match with XPD-924D | Yes — production speed | No — major bottleneck |
| Operator labor required | Minimal | Continuous |
| Powder waste / reclamation | Collected & reusable | Lost to floor/air |
Always work in a well-ventilated area when handling DTF powder. The S-20’s built-in filtration system is designed to capture airborne particles during operation. Wear a mask, gloves, and eye protection when filling the powder chamber. Never apply powder near the printer.
The S-20 is designed for hot-melt TPU adhesive powder. STS P-6 Low Migration DTF Powder (1kg bags) is the recommended powder. White powder is standard; black powder is available for dark fabric applications.
Pair the S-20 with the Right Supplies
The 24″ dual-head DTF printer the S-20 was designed for. Bundle pricing available.
Matched 24″ roll film for the XPD-924D + S-20 production line. Hot or cold peel.
Premium TPU hot-melt powder — compatible with the S-20’s powder chamber. White standard.
OEM-formulated CMYK & White cartridges for the XPD-924D. Required for printhead warranty.
Technical Specifications
STS S-20 24″ Automatic DTF Powder Shaker — Technical Specifications
| Specification | Detail |
|---|---|
| System Type | Fully automated DTF powder application, shaking, and IR curing system |
| Film Width | Up to 24 inches (optimized for XPD-924D output) |
| Infrared Heating | Top AND bottom IR heating elements for complete, even powder melt |
| Hood Operation | Motorized heavy-duty pistons — auto open/close |
| Control Interface | 7″ HMI LCD touchscreen — temp, speed, all settings |
| Operating Modes | Automatic and Manual modes |
| Safety Sensor | TPU powder chamber safety sensor — stops machine on hand contact |
| Media Transport | Vacuum conveyor with tensioned feed and take-up system |
| Air Filtration | Built-in air purifier (HEPA + charcoal filtration) |
| Powder Compatibility | TPU adhesive powder (hot-melt) — white and black available |
| Compatible Printer | STS XPD-924D 24″ DTF Printer (primary); any 24″ DTF printer |
| Power Requirements | Contact RCS for electrical requirements |
| Warranty | STS manufacturer warranty |
| Ships | Free shipping — drops ships from STS Inks, Boca Raton, FL |
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions — STS S-20 Powder Shaker
For a 13″ desktop DTF printer doing low volume, hand-shaking is workable. For the STS XPD-924D running at 22–29 linear feet per hour, manual powder application is a production-killing bottleneck and a health hazard. The S-20 is the right tool for any 24″ production DTF setup.
The S-20 includes integrated top and bottom infrared heating — it both applies the powder and melts it in one pass. You do not need a separate curing oven when using the S-20.
The S-20 is designed for hot-melt TPU adhesive powder. STS recommends their P-6 Low Migration DTF Powder. Both white and black powders are available — white for light-to-mid fabrics, black for dark fabric applications where white powder might show through.
Yes — the S-20 has a built-in HEPA + charcoal filtration system. This is one of its key advantages over many competitor shakers. Replacement filter cartridges are available from River City Supply. For high-volume shops, STS also offers a standalone STS Air Filter Pro unit as additional protection.
Yes — the S-20 is designed to run as a continuous inline companion to the XPD-924D. In automatic mode, film feeds from the printer into the S-20’s vacuum conveyor, through the powder chamber, and exits cured and ready for cutting/pressing — all in one automated workflow.
Settings vary by powder type, film formulation, and ambient shop conditions. As a starting point, set IR temperature to approximately 140–160°C and conveyor speed to match your printer’s output rate. Always run test strips when changing powder lots or film types.
Yes — the STS S-20 ships free to the continental USA. It drop ships directly from STS Inks in Boca Raton, Florida. Call (512) 454-0505 for lead times.
