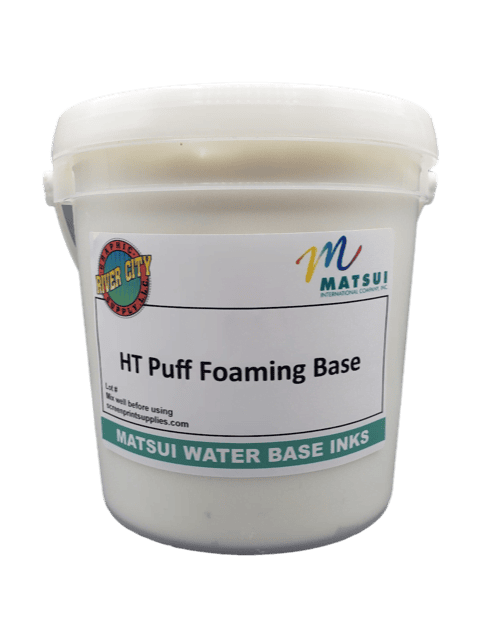

Matsui Puff Foaming Base HT | PVC-Free Water-Based 3D Puff Ink for Screen Printing
Matsui
Matsui Puff Foaming Base HT — Matsui Puff Foaming Base HT is a water-based, PVC-free foaming agent that expands when exposed to flash-cure heat — creating a raised, 3D tactile effect on the printed surface. It can be used standalone for clear puff effects or mixed with water-based inks to create pigmented puff prints. HT indicates high-temperature stability — it maintains proper expansion characteristics even in high-heat dryer environments.
🎯 Problem it solves: No 3D puff effect capability in water-based printing — the desire for raised, dimensional prints without PVC chemistry.
💊 Dosage: Use as a mixing base — mix with water-based inks to add puff effect. Or print standalone.
✓Use as a mixing base — mix with water-based inks to add puff effect. Or print standalone.
✓Matsui Acrylic Inks Compatible
✓PVC-Free
✓OEKO-TEX® Certified
🚚 FREE Shipping on orders over $200|📦 In-Stock: Usually ships same or next business day|🏪 Free In-Store Pickup · San Antonio, TX
Price range: $44.99 through $699.99
Description
Matsui Puff Foaming Base HT
Matsui Puff Foaming Base HT is a water-based, PVC-free foaming agent that expands when exposed to flash-cure heat — creating a raised, 3D tactile effect on the printed surface. It can be used standalone for clear puff effects or mixed with water-based inks to create pigmented puff prints. HT indicates high-temperature stability — it maintains proper expansion characteristics even in high-heat dryer environments.
What It Does
📦
Creates 3D Puff Effect
Expands significantly when the garment is flash-cured — creating a raised, tactile three-dimensional print surface. The expansion locks in during final cure.
🎨
Mixable with Colors
Mix with Matsui Alpha, Infinity, or other water-based inks to create pigmented puff prints. The color and the puff effect are in one layer.
🌿
PVC-Free
Unlike traditional puff inks which often contain PVC and phthalates, Puff HT delivers 3D effects through water-based chemistry — safe for OEKO-TEX certified production.
When to Use This Additive
For dimensional, raised print effects — collegiate-style lettering, logo highlights, textured designs. Flash at 160°F+ to initiate expansion, then final cure at 320°F.
💊 Dosage
Use as a mixing base — mix with water-based inks to add puff effect. Or print standalone.
✅ Compatible Inks
Can be used standalone for clear puff or mixed with Matsui water-based inks for colored puff. Works with standard water-based printing equipment.
⚠️ Limits
Requires flash curing to activate expansion. Total additive limit (15%) does not apply when using as a standalone ink — applies when mixing with other inks.
The Complete Matsui Additive Lineup — All 13
Every water-based printing problem has an additive that fixes it. Here is the full lineup with dosages and what each solves:
| Additive | Dosage | What It Solves |
|---|---|---|
| Quick Additive | 6–9% | All-in-one: open time + wash fastness + soft hand. Best starting point for most jobs. |
| Retarder MG | 1–5% | Prevents ink drying in screen. Extends open time on press. |
| Fixer WF-N | 1–5% | Improves wash fastness. Lowers cure temp to 300°F (150°C). Most common fixer. |
| Softener MG | 1–4% | Improves fabric penetration. Softer hand feel and better adhesion. |
| RV Additive | 1–3% | Reduces viscosity without weakening resin. Better flow and fabric penetration. |
| Thickener B | 0.25–1% | Increases viscosity. Controls halftone dot spread. Fine-detail work. |
| Fixer L | 1–3% | Lowers cure temp to 250°F. For electric dryers or heat-sensitive fabrics. |
| Fixer V | 2–3% | ⚠️ For PU binder inks ONLY (Soft-Tex 350 series). NOT interchangeable with Fixer WF-N. |
| Retarder SP-1 / Flow | Varies | Improves flow of thick inks without reducing viscosity. For high-viscosity bases. |
| Emacol R-600-E | Varies | Long-bodied thickener for halftone dot retention. Alternative to Thickener B. |
| Puff Foaming Base HT ← This Product | Varies | Creates 3D puff effect when flash-heated. Mix with any water-based ink. |
| Phantom Clear | Standalone | Disappears when dry. Reappears when wet (sweat). For activewear specialty prints. |
| Discharge Activator | 3–8% | ⚠️ REQUIRED for discharge mode. Enables chemistry on dark 100% cotton. 12-hr pot life. |
💡 Rule: Do not exceed 15% total additives in any ink batch. Complete additive guide with dosage charts, stacking rules, and FAQ →
Questions about which additive to use?
Call us at (512) 454-0505 Mon–Fri 9am–5pm CT
Technical Specifications
| Specification | Detail |
|---|---|
| Product Name | Matsui Puff Foaming Base HT |
| SKU | Matsui Puff HT |
| Type | PVC-Free Water-Based 3D Puff Ink for Screen Printing |
| Dosage | Use as a mixing base — mix with water-based inks to add puff effect. Or print standalone. |
| Problem Solved | No 3D puff effect capability in water-based printing — the desire for raised, dimensional prints without PVC chemistry. |
| Compatible Inks | Can be used standalone for clear puff or mixed with Matsui water-based inks for colored puff. Works with standard water-based printing equipment. |
| Limits | Requires flash curing to activate expansion. Total additive limit (15%) does not apply when using as a standalone ink — applies when mixing with other inks. |
| Available Sizes | Quart, Gallon, 5 Gallon |
| Formulation | PVC-free, OEKO-TEX® Standard 100 certified |
| Storage | 65°F to 95°F (18°C to 35°C). Avoid direct sunlight. |
| Cleanup | Water and mild soap/detergent |
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
How do I get the puff effect?
Print the Puff Base layer, then flash-cure at 160°F+ — this initiates expansion. The foam expands and locks in place during the final cure at 320°F (160°C). The higher the flash temperature and longer the dwell, the more expansion you will get.
Can I mix puff base with color inks?
Yes — mix Puff Base HT with any Matsui water-based ink to create a pigmented puff. The mixed ink will have the same dimensional effect with the added color.
Can I overprint on top of puff?
Yes — print the puff layer first, flash, then overprint with standard water-based ink for detailed art over a puff base. Or use puff as a top-layer effect for specific design elements.
Questions about which additive to use?
Call us at (512) 454-0505 Mon–Fri 9am–5pm CT
