Vastex E200 LED Exposure Unit 21″x28″ – Compact Tabletop Screen Exposure Unit

Vastex

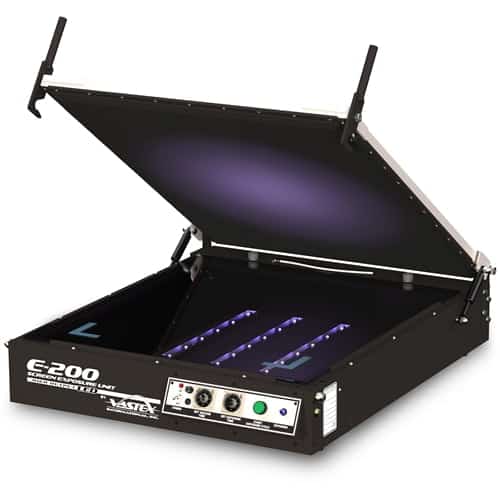

The Vastex E-200 (21×28) is a compact LED exposure unit with true vacuum draw-down — a lid with a vacuum pump pulls the film and screen into tight contact for razor-sharp stencils. Three 18″ LED bars expose a 15″×18″ image on screens up to 21″×28″, controlled by a one-touch angled panel. Exposes any emulsion as fast as metal halide at about 20% the power, with 50,000+ hour LEDs. 120V or 240V.

True vacuum draw-down
Lid + vacuum pump = sharp stencils

One-touch control panel
Angled, repeatable exposures

Three 18″ LED bars
Even light across a 15×18 image

Up to 21×28 screens
Compact tabletop footprint

Any emulsion
Plastisol, water-based & solvent

~20% power · 50,000+ hr
Cool, efficient, long-life LEDs

Genuine Vastex LED exposure — expose any emulsion at ~20% the power of metal halide. Not sure which unit fits your screens? See the comparison chart, or call 512-454-0505.

$2,746.00

Model

Vastex E-200 High Output LED Exposure Unit - 21"x28"- 120 Volt
Vastex E-200 High Output LED Exposure Unit - 21"x28" - 240 Volt

Clear

As low as $67 per month with ACG Equipment Financing

Description

Vastex E-200 (21×28) — Vacuum-Contact LED Exposure, Compact Footprint

Sharp stencils start with tight film-to-screen contact. The E-200 adds a true vacuum draw-down — a lid with a vacuum pump — that pulls your positive and mesh together for crisp detail and clean halftones, in a compact tabletop unit. One-touch controls make every burn repeatable, and long-life LEDs expose any emulsion fast while sipping power.

Why Printers Choose It

True Vacuum Draw-Down

A lid with a vacuum pump pulls film and screen into full contact for razor-sharp edges and clean halftones to 85 lpi.

One-Touch Repeatable Control

An angled one-touch panel makes setting and repeating exposures simple and consistent.

Even, Fast LED Light

Three 18″ LED bars light the full 15″×18″ image evenly, exposing as fast as metal halide.

Efficient & Compact

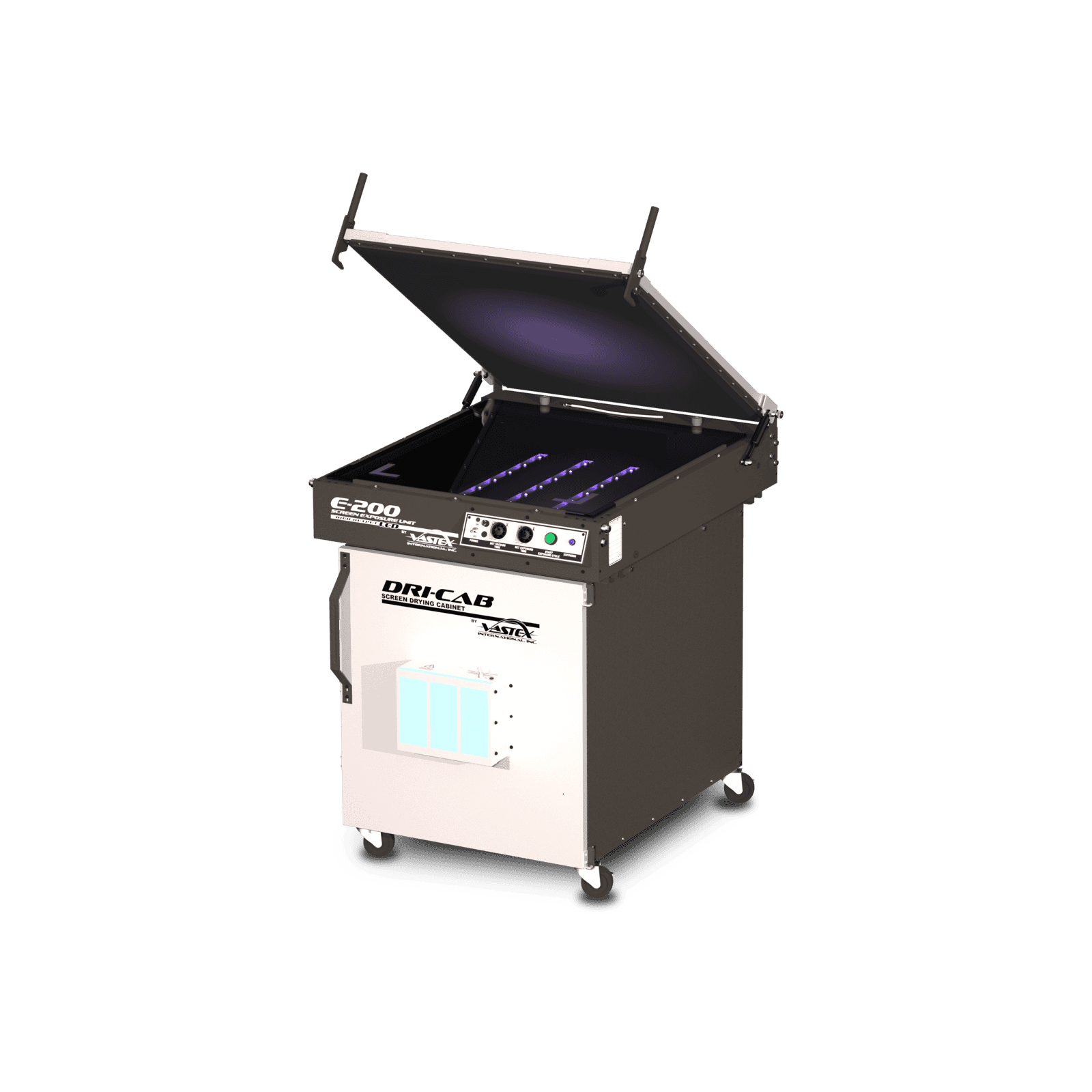

About 20% of metal-halide power, 50,000+ hour LEDs, and a compact footprint that can mount on a drying cabinet.

Compare Vastex LED Exposure Units

The Vastex LED line steps up in a clear ladder: the E-20 is the entry pressure-plate light box; the E-200 21×28 adds true vacuum draw-down for sharper stencils; the E-200 23×31 keeps that vacuum with bigger 30″ bars for larger screens; the E-2000 25×36 brings a touchscreen with presets and a fast ring-blower vacuum for production; and the E-2000 52×36 doubles the light bars to expose two 25×36 screens at once. Click any unit to view its page.

Unit	Max screen	Light bars	Draw-down	Controls	What’s different
E-20	20×24″	2 × 15″	Pressure pad	Analog timer	Entry light box — lowest cost, no vacuum	View →
E-200 21×28	21×28″	3 × 18″	Vacuum lid	One-touch	Adds true vacuum draw-down for sharper stencils	◀ You’re viewing this
E-200 23×31	23×31″	3 × 30″	Vacuum lid	One-touch	Same vacuum, bigger 30″ bars for larger screens	View →
E-2000 25×36	25×36″	6 × 30″ HO	Ring blower 4–6s	LCD + presets	Production: touchscreen presets + fast ring-blower vacuum	View →
E-2000 52×36	52×36″ (or 2×)	12 × 30″ HO	Ring blower 4–6s	LCD + presets	Highest output — exposes two 25×36 screens at once	View →

All expose any emulsion as fast as metal halide at ~20% the power, with 50,000+ hour LEDs and 85 lpi detail.

Choose your voltage

120V or 240V. Add a Vastex stand, utility cart, or Dri-Cab / Dri-Vault drying cabinet to build a complete screen room.

Bigger screens or more speed?

Running frames up to 23×31? See the E-200 23×31. Want presets and 4–6 second draw-down? Compare the E-2000.

Your exposure time is unique to your shop

There’s no single “correct” exposure time — it depends on your emulsion type and coating thickness, mesh count, the distance from the LEDs to the screen, your film density, and even humidity. Dial in yours with our exposure calculator and its built-in step test to find your exact time, then keep our emulsion troubleshooting guide handy to fix any exposure or stencil issues.

Why Buy From River City Supply?

Real screen printers. Real support. Genuine equipment.

Real printers on staff

Talk to people who run this gear — we’ll help you spec, install and dial it in. Call (512) 454-0505.

Genuine Vastex, full warranty

Authentic Vastex equipment backed by the manufacturer warranty, including 5-year LED lights.

Fast shipping + 1-hour pickup

Ships quick, and in-stock items are ready for in-store pickup within an hour in Central Texas.

Financing available

Spread the cost of your equipment with simple financing — ask us how.

Everything under one roof

Screens, emulsions, inks, presses and dryers — outfit your whole shop from one supplier.

Support after the sale

Family-run and here Monday–Friday, 9–5, long after your order ships.

Call (512) 454-0505

Not sure which exposure unit fits?

Tell us your screen sizes and how many you burn a day — we’ll match you to the right Vastex unit and screen-room setup.

Call 512-454-0505

Build your screen room

Pair your exposure unit with emulsions, screens & mesh and drying — all from one supplier.

Shop Prepress

Technical Specifications

Vastex E-200 21×28 LED Exposure Unit — Technical Specifications

Specification	Detail
Model	Vastex E-200 (E200-2128)
Type	Compact LED exposure unit with vacuum
Max screen O.D.	21″ × 28″ (53 × 71 cm)
Image / exposure area	15″ × 18″ (38 × 46 cm)
Light bars	Three 18″ LED (VLB-15)
Hold-down	Lid with vacuum pump
Controls	One-touch angled control panel
Power	120V or 240V
Resolution	Fine detail & halftones to 85 lpi
Emulsions	Any — plastisol, water-based, solvent
LED life	50,000+ hours
Warranty	2-year defects · 5-year LED lights
Shipping	Free in-store pickup (1-hr on stock items)

Compare Vastex LED Exposure Units

Unit	Max screen	Light bars	Draw-down	Controls	What’s different
E-20	20×24″	2 × 15″	Pressure pad	Analog timer	Entry light box — lowest cost, no vacuum	View →
E-200 21×28	21×28″	3 × 18″	Vacuum lid	One-touch	Adds true vacuum draw-down for sharper stencils	◀ You’re viewing this
E-200 23×31	23×31″	3 × 30″	Vacuum lid	One-touch	Same vacuum, bigger 30″ bars for larger screens	View →
E-2000 25×36	25×36″	6 × 30″ HO	Ring blower 4–6s	LCD + presets	Production: touchscreen presets + fast ring-blower vacuum	View →
E-2000 52×36	52×36″ (or 2×)	12 × 30″ HO	Ring blower 4–6s	LCD + presets	Highest output — exposes two 25×36 screens at once	View →

All expose any emulsion as fast as metal halide at ~20% the power, with 50,000+ hour LEDs and 85 lpi detail.

Related & Compare

E-20
LED exposure · 20×24″E-200 23×31
LED exposure · 23×31″E-2000 25×36
LED exposure · 25×36″E-2000 52×36
LED exposure · 52×36″ (or 2×)All Exposure Units
Browse the full category Emulsions & Stencil
What you’ll coat & burn

Technical Sheets / Safety Data Sheets / Documents

Vastex e200 Manual

Vastex E200 Series

FREQUENTLY ASKED QUESTIONS

Vastex E-200 21×28 LED Exposure Unit — Frequently Asked Questions

What is the Vastex E-200 (21×28)?

A compact LED exposure unit with a vacuum lid that draws film and screen into tight contact for sharp stencils, sized for screens up to 21″×28″.

Why does vacuum draw-down matter?

Tight film-to-screen contact is what gives you crisp edges and clean halftones. The vacuum lid removes the air gap that a simple pressure pad can leave.

How is it different from the E-20?

The E-20 uses a pressure plate and exposes up to 20×24. The E-200 adds a true vacuum lid and a one-touch panel for sharper, more repeatable burns.

What about the 23×31 model?

The E-200 23×31 is the same idea with three 30″ bars for larger screens up to 23×31.

What emulsions can it expose?

Any emulsion, and it’s resistant to plastisol, water-based and solvent inks.

120V or 240V?

Both are available — pick to match your shop’s outlets. The correct cord is supplied.

How do I find the right exposure time for my screens?

Every shop is different — exposure time depends on your emulsion and coating thickness, mesh count, the distance from the LEDs to the screen, film density and even humidity. Run a step test with our exposure calculator to nail your exact time, and keep our emulsion troubleshooting guide handy to dial it in and fix any issues.
