Saati Hi-Dro ECO HD Panel 25″×36″ (6-Pack) – Thin Thread Plasma-Treated Mesh for Large Format Water-Based & Halftone Production

Nortech

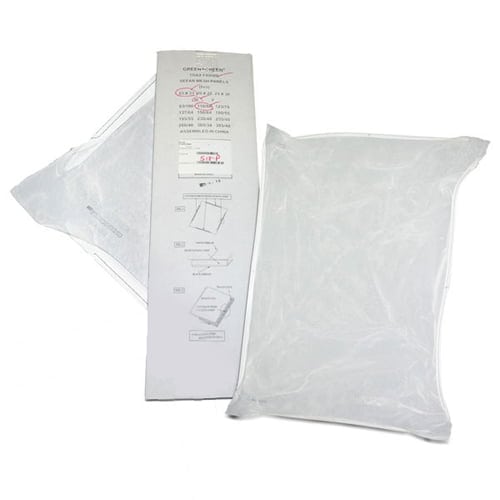

Nortech Eco Panels White

The Saati Hi-Dro ECO HD Panel 25″×36″ (6-Pack) brings Saati’s thin-thread, plasma-treated Hi-Dro mesh to the largest standard ECO frame size — the Nortech ECO HD Frame 25″×36″. For large-format production shops running water-based inks, discharge printing, or high-detail halftone work at scale, Hi-Dro’s wider mesh openings and lower squeegee pressure requirements deliver better print quality across a larger print area than standard thread mesh can achieve. Each panel is pre-woven into a plastic locking strip for direct installation — no adhesive, no degreasing required before coating.

💧Hi-Dro Thin Thread — Large Format Performance
📐25″×36″ — Fits ECO HD Frame 25×36
⚡Plasma Treated — No Degreasing Required
🎯Sharper Halftones at Large Format Scale
📦6 Panels Per Pack
♻️100% Recyclable

📦 What’s Included

Six (6) Saati Hi-Dro mesh panels cut to 25″×36″, pre-woven into plastic locking strips for the Nortech ECO HD Frame 25″×36″. Requires Nortech Stretching Tool for installation.

⚠️ Drop Ship Item: Ships directly from Nortech Graphics in Arkansas. Shipping times vary. Questions? Contact us at [email protected] or at (512) 454-0505.

🚚Ships direct from Nortech · Free shipping over $200 · (512) 454-0505

Price range: $112.99 through $145.99

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)
SKU: N/A Category: Tags: , , , , , , , , ,

Description

Hi-Dro Performance at Large Format Scale

Running a 25×36 frame means printing across a large span where every variable — tension, squeegee pressure, ink release — has more room to become inconsistent. Hi-Dro’s thinner thread and wider mesh openings give you a lower, more consistent pressure threshold across that entire print area, cleaner ink release on snap-off, and the ability to run water-based and discharge inks through large-format screens without clogging or drying issues.

🎬 Watch: ECO HD Frame Stretching & Panel Installation

See how these large-format panels install into the ECO HD Frame 25″×36″ using the locking strip system and stretching tool.

Why Hi-Dro Matters Even More at 25×36

📐 Large Area — More Consistent Pressure Matters

On a 25×36 screen, squeegee pressure inconsistency across the print area is magnified. Hi-Dro’s lower pressure threshold means the ink clears across the full span more evenly — reducing the risk of the pressure-gradient ink deposit variations that plague large-format printing with standard mesh.

💧 Water-Based at Large Format Scale

Water-based and discharge inks are prone to drying in the screen mesh during large-format printing. Hi-Dro’s plasma treatment reduces the tendency of water-based inks to dry in the screen, and the wider mesh openings let the ink flow through with less resistance — critical for production-speed large-format water-based printing.

🔄 ECO HD Frame System

Pre-woven into the locking strip for the ECO HD Frame 25×36. Install with the stretching tool, verify with the tension meter, and coat directly — no degreasing step required.

Available Mesh Counts — Hi-Dro 25×36

Mesh Count Color Thread Dia. Open Area Best For
110 Hi-Dro ⬜ White 64 µm ~60% Discharge whites, heavy water-based
157 Hi-Dro 🟨 Yellow 48 µm 46% All-around water-based, halftones, plastisol
230 Hi-Dro 🟨 Yellow 40 µm 38% High-detail halftones, 4-color process at large format
305 Hi-Dro 🟨 Yellow 31 µm ~36% Ultra-fine photographic detail — handle with extra care

Saati Hi-Dro vs. Hi-Tex — Full Comparison for Large Format ECO HD Panels

Both Hi-Dro and Hi-Tex mesh types are available as ECO HD panels for the ECO HD Frame 25×36. Most high-performance large-format shops stock both — Hi-Dro for water-based and halftone work, Hi-Tex for heavy plastisol production.

Feature / Factor 💧 Hi-Dro (This Product) 🔴 Hi-Tex
Thread Diameter (157/158 count) 48 µm — Thinner 64 µm — Thicker
Open Area (157/158 count) 46% — More Open ~38% — Less Open
Squeegee Pressure Needed Lower — consistent across full 25×36 span Higher — more force required
Water-Based Performance Excellent — purpose-built Good — requires degreasing first
Plastisol Performance Excellent — softer hand result Excellent — heavy deposit workhorse
Halftone Performance Excellent — less dot clipping Good — thicker threads clip fine dots
Surface Treatment Plasma treated — coat immediately None — must degrease before use
Tear Resistance Handle with care — thinner thread More durable — thicker threads
Print Hand Feel Softer hand — brighter color Heavier deposit — standard hand
Best For Water-based, discharge, halftones, simulated process, soft-hand plastisol at large format scale High-volume plastisol, heavy underbases, thick-deposit large-format production

The bottom line: Most large-format shops stock both. Hi-Dro for water-based, discharge, and halftone work. Hi-Tex for heavy-deposit plastisol. The ECO HD locking strip system makes swapping between the two fast and practical.

Complete Your 25×36 ECO HD Setup

📐 Nortech ECO HD Frame 25×36 →

The ultra-heavy-duty large format frame these panels are cut for.

🔧 Nortech ECO Stretching Tool →

Required for installation. Apply even tension across all four sides of the 25×36 frame.

📊 Nortech Tension Meter →

Especially important on a 25×36 span — verify even tension across the full frame width.

(512) 454-0505  ·  [email protected]  ·  Same-day shipping before 3:30 PM CT  ·  Free shipping over $200

Technical Specifications

Technical Specifications — Saati Hi-Dro ECO HD Panel 25″×36″ (6-Pack)

Drop Ship via Nortech Graphics, Arkansas · Made in the USA · Drop Ship via Nortech Graphics, Arkansas

Mesh Type Saati Hi-Dro — high modulus, low elongation monofilament polyester with plasma surface treatment (DBD)
Frame Compatibility Nortech ECO HD Frame 25″×36″ — locking strip system
Pack Quantity 6 panels per pack
Available Mesh Counts 110 (White) · 157 (Yellow) · 230 (Yellow) · 305 (Yellow)
Surface Treatment Proprietary plasma treatment (DBD) — no degreasing required
Degreasing Required No — coat directly after installation
Ink Compatibility Water-based, discharge, HSA, and plastisol inks — purpose-built for water-based
Required Tool Nortech ECO Stretching Tool (sold separately)
Tension Verification Nortech Tension Meter (sold separately)
Handling Note Thin thread — more fragile than Hi-Tex. Handle with care.

Technical Sheets / Safety Data Sheets / Documents

Saati Hi-Dro Guide

FREQUENTLY ASKED QUESTIONS

What frame do the Hi-Dro ECO HD Panels 25×36 fit?

These panels fit only the Nortech ECO HD Frame 25″×36″. They do not fit 23×31 frames or standard ECO Frames. Match panel size to frame size.

Why use Hi-Dro over Hi-Tex for large format printing?

Across a 25×36 span, pressure consistency is harder to maintain. Hi-Dro’s lower pressure threshold means ink clears more evenly. For water-based and discharge printing, Hi-Dro is the superior choice — plasma-treated, no degreasing, excellent antistatic properties.

Where does this ship from?

Drop ship from Nortech Graphics, Arkansas. 800-743-6473 · (512) 454-0505.
