STS Inks DTF Ink Cartridge – 500ml Direct-to-Film Ink for VJ-628D & XPJ-1682D Printers (CMYK & White)
STS Inks
STS DTF Ink Cartridges (500ml) are USA-manufactured, professional-grade direct-to-film inks for the STS VJ-628D (24″) and XPJ-1682D (64″) Mutoh-based DTF printers. Available in CMYK and White. STS degassing technology eliminates micro-bubbles for clean, consistent jetting. Encapsulated resin + nano-pigment for high color density and printhead safety. Backed by the STS printhead warranty (registration required). Drop ships fresh from STS in Florida.
Price range: $55.71 through $605.68
Description

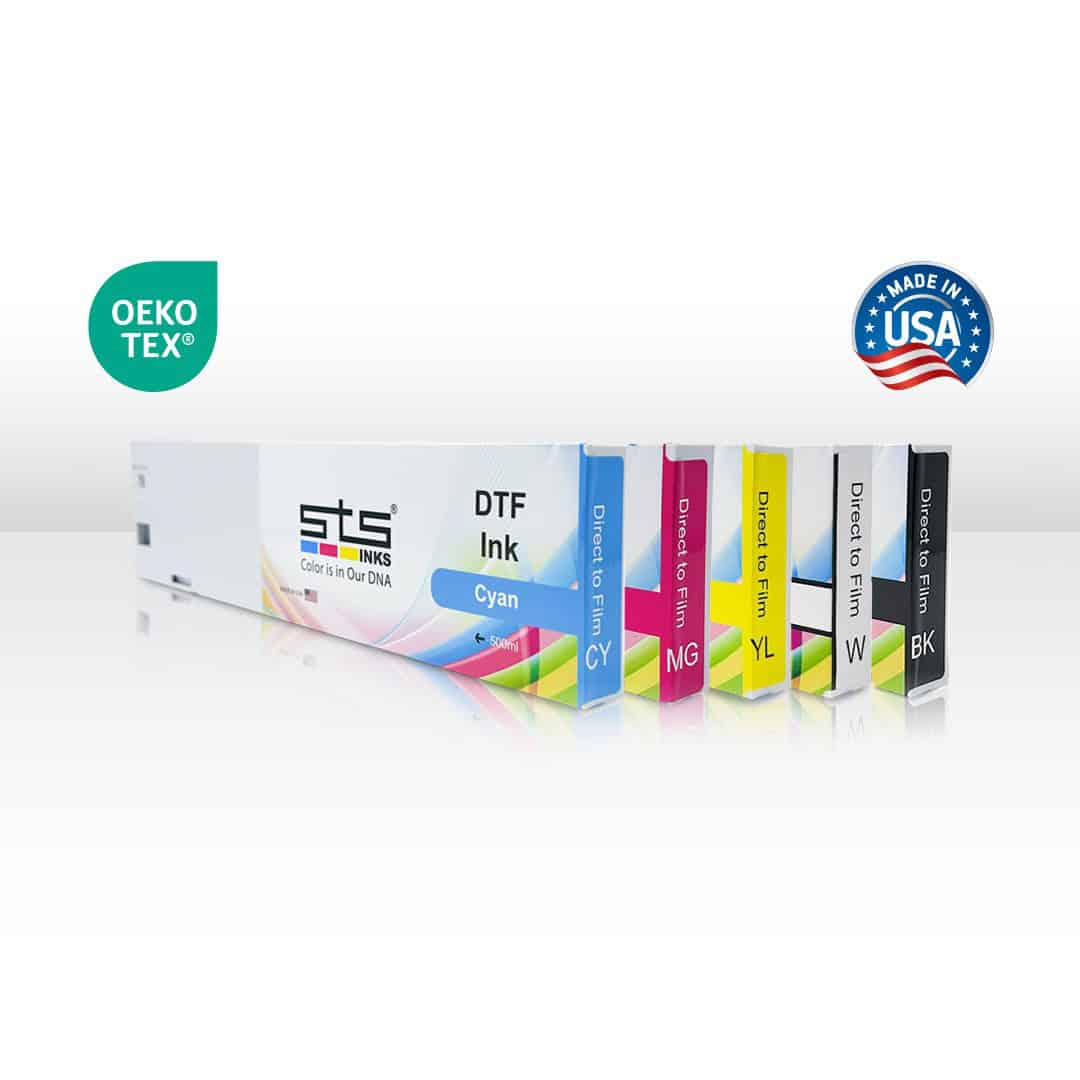

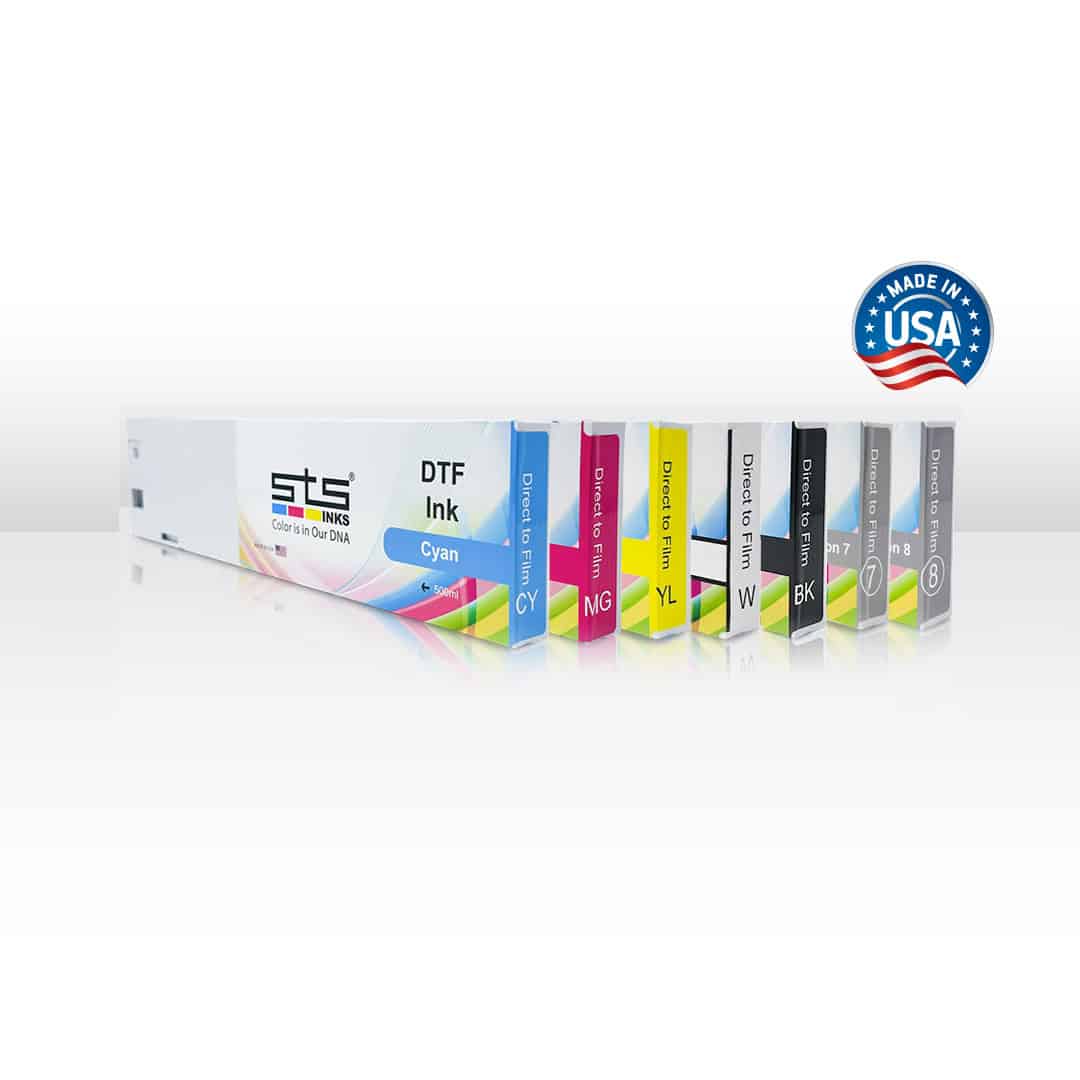

STS DTF Ink 500ml Cartridge — For VJ-628D & XPJ-1682D Printers
STS DTF Ink Cartridges are USA-manufactured, professional-grade direct-to-film inks formulated specifically for the STS VJ-628D and XPJ-1682D Mutoh-based DTF printers. These are NOT the same as STS XPD2 cartridges used in the XPD-924D — confirm your printer model before ordering. Each 500ml cartridge uses STS’s advanced degassing technology to eliminate micro-bubbles, paired with encapsulated resin and nano-pigment chemistry that delivers high color density, a wide gamut, and printhead-safe stable jetting for production environments.
Important: Confirm Your Printer Model
They are NOT compatible with the STS XPD-924D. The XPD-924D uses STS XPD2 cartridges which are a different format entirely. If you own an XPD-924D, see the STS XPD2 500ml Ink or STS 1-Liter DTF Ink pages instead.
Printer Compatibility
| Printer Model | Ink Code | Format | Notes |
|---|---|---|---|
| STS VJ-628D | STS.DTF.500 | 500ml cartridge | 24″ Mutoh-based DTF printer |
| STS XPJ-1682D | STS.DTF.500 | 500ml cartridge | 64″ dual-head production DTF printer |
| STS XPD-924D | XPD2 format | Different cartridge | NOT compatible — XPD-924D uses STS XPD2 cartridges |
Key Features
STS uses a proprietary degassing process to remove dissolved gases and micro-bubbles from the ink before packaging. Micro-bubbles in ink channels cause intermittent jetting failures, banding, and printhead stress that shortens head life. Degassed ink jets cleanly and consistently.
Encapsulated resin with nano-pigment technology delivers high color density and a wide color gamut. Vibrant, saturated CMYK output and an opaque, film-building white for bright results on both light and dark garments.
The encapsulated resin chemistry protects printhead nozzles from pigment particle wear. Combined with the STS printhead warranty (registration required), this ink system is built for long-term production reliability.
Prints made with STS DTF inks maintain vibrant color and strong adhesion through repeated wash and dry cycles when properly cured with compatible STS TPU powder.
Manufactured in the USA with batch-level color consistency control. ICC profiles are available for supported printers to help dial in accurate color reproduction.
Each cartridge carries a 1-year shelf life from manufacture date. Drop shipped fresh from STS in Florida — not warehouse-aged stock.
Also Available for the XPD-924D
OEM cartridges for the STS XPD-924D 24″ printer. Different format — do not interchange.
High-capacity 1-liter format for the XPD-924D — fewer cartridge changes on high-volume runs.
Technical Specifications
Technical Specifications
| Specification | Detail |
|---|---|
| Product | STS DTF Ink Cartridge 500ml |
| SKU | STS.DTF.500 (CMYK); STS.DTF.500.W (White) |
| Volume | 500ml per cartridge |
| Available Channels | Black (K), Cyan (C), Magenta (M), Yellow (Y), White (W) |
| Compatible Printers | STS VJ-628D, STS XPJ-1682D — NOT for XPD-924D |
| Technology | Encapsulated resin + nano pigment |
| Special Feature | STS degassing technology — micro-bubble free |
| Color Consistency | Batch-controlled for consistent color reproduction |
| Shelf Life | 1 year from manufacture date |
| Warranty | STS printhead warranty — registration required |
| ICC Profiles | Available for supported printers |
| Origin | Made in USA — Boca Raton, FL area |
| Fulfillment | Drop ships fresh from STS |
| Returns | No returns on ink products |
Technical Sheets / Safety Data Sheets / Documents
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions — STS DTF Ink Cartridge 500ml
No. The STS XPD-924D uses STS XPD2 cartridges which are a completely different format. These 500ml cartridges (STS.DTF.500) are only for the STS VJ-628D and XPJ-1682D. If you own an XPD-924D, see the STS XPD2 500ml Ink or STS 1-Liter DTF Ink product pages.
Dissolved gases in liquid ink can form micro-bubbles in printhead channels, causing intermittent jetting failures, banding, and accelerated printhead wear. STS removes these gases before packaging using a proprietary degassing process, so the ink arrives printhead-ready with stable, consistent jetting behavior.
Yes. The STS printhead warranty requires registration. Contact STS directly at their Florida facility or through River City Supply to confirm the current registration process and warranty terms.
Yes. STS provides ICC profiles for supported printers to help calibrate color output. Contact STS support or River City Supply for access to the current ICC profile for your specific printer model and RIP software.
White DTF ink contains heavier pigment particles that can settle over time. Store white ink upright. Before installing, gently agitate the cartridge. Follow your printer’s recommended white ink circulation and purging schedule to prevent settling in the ink lines and printhead.
