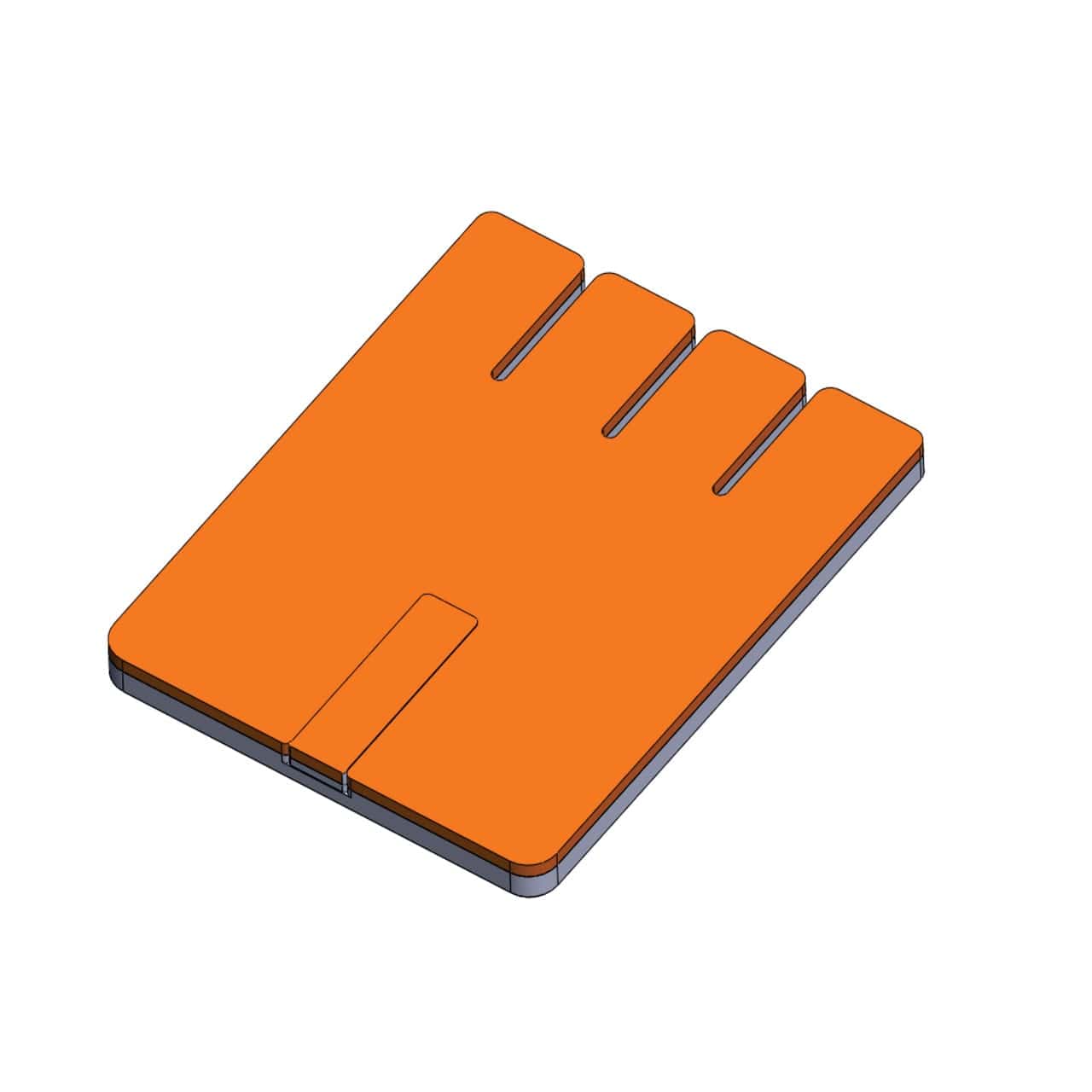

Action Engineering Stahls’ 4UP Sleeve & Polo Combo Platen – Multi-Sleeve & Placket Heat Press Platen

Action Engineering

Action Engineering Stahls’ 4UP Sleeve & Polo Combo Platen – Multi-Sleeve & Placket Heat Press Platen
Action Engineering Stahls’ 4UP Sleeve & Polo Combo Platen – Multi-Sleeve & Placket Heat Press Platen

Action Engineering Stahls’ 4UP Sleeve & Polo Combo Platen is a production-focused heat press platen engineered to increase efficiency when printing sleeves and polo shirt plackets. Designed for decorators who handle team uniforms, corporate apparel, and high-volume branding, this platen allows multiple sleeve prints in one setup while also providing a dedicated slot for polo placket applications.

When applying DTF transfers, heat transfer vinyl (HTV), plastisol transfers, or sublimation logos, narrow garment areas like sleeves and polo plackets require precise isolation and even pressure. This platen eliminates seam interference and uneven surfaces, ensuring consistent adhesion and professional-quality results.

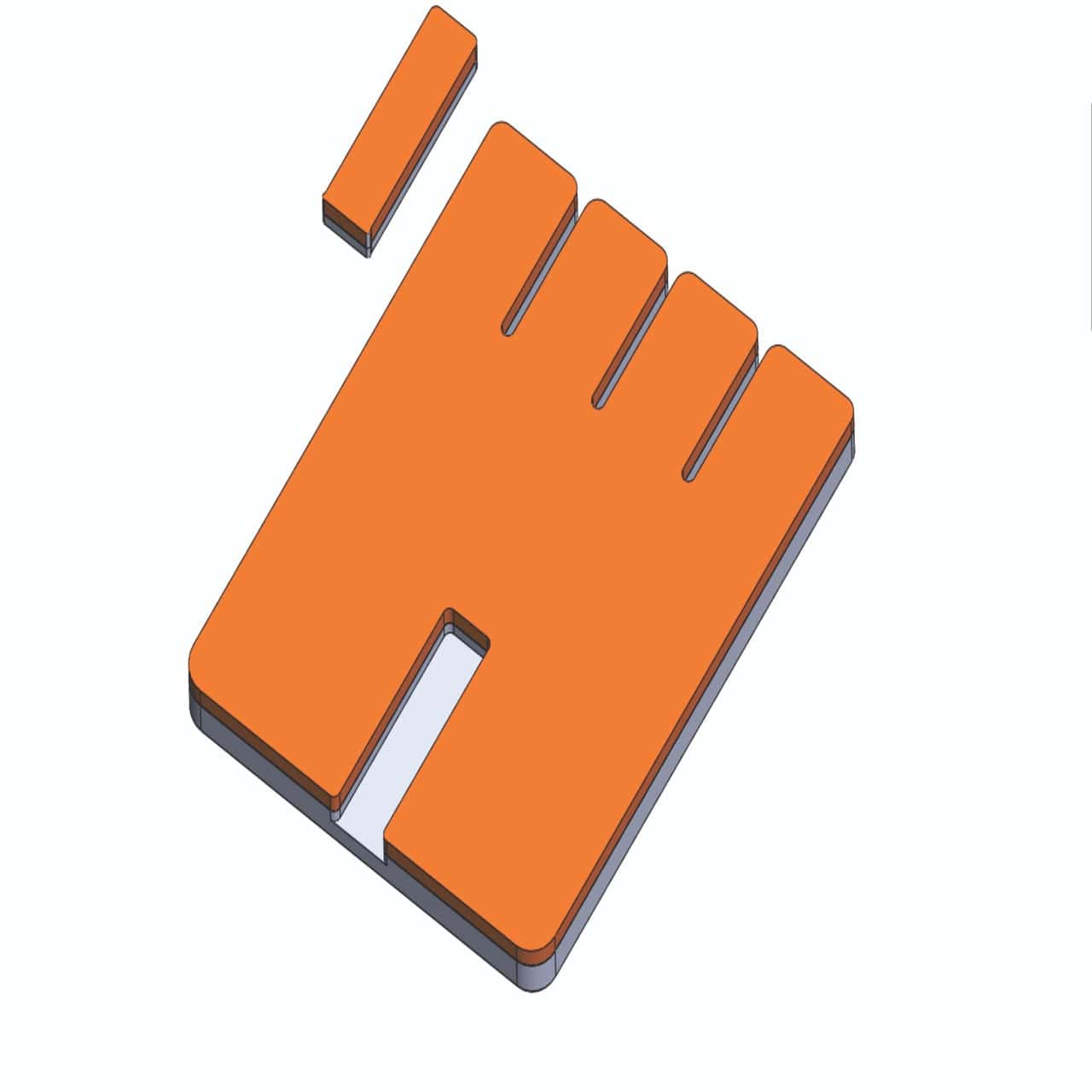

The 4UP configuration allows you to print up to four short sleeves at once, dramatically reducing production time compared to standard single-sleeve platens. Flip the platen to access the built-in polo slot, specifically designed to isolate plackets for clean, centered prints without crushing buttons or seams.

If your shop regularly decorates sleeves and polos, this platen is a major productivity upgrade.

$295.00

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)
SKU: ACT HPSLVPOLO Categories: , Tags: , , , , , , , , ,

Description

Stahls’ 4UP – Sleeve & Polo Combo Platen – Key Features & Benefits:

  • Four sleeve platforms (3.75″ x 5″ each) – Print multiple short sleeves simultaneously for faster production
  • Removable/flip polo slot (2″ x 7″) – Designed for precise polo placket printing
  • Optimized for high-volume production – Reduces setup time and increases throughput
  • Isolates narrow garment areas – Prevents seams and buttons from affecting pressure
  • Improves DTF and HTV adhesion – Ensures even heat and consistent transfer results
  • Durable ¾″ aluminum construction – Built for commercial production environments
  • ⅜″ silicone rubber surface – Provides stable, even heat distribution
  • Professional-grade design – Ideal for uniform shops and contract decorators

Ideal For:

  • Team uniform sleeve logos
  • Corporate polo shirt branding
  • DTF sleeve transfers
  • HTV small-area applications
  • Retail and promotional apparel decoration
  • High-volume garment production

Technical Specifications:

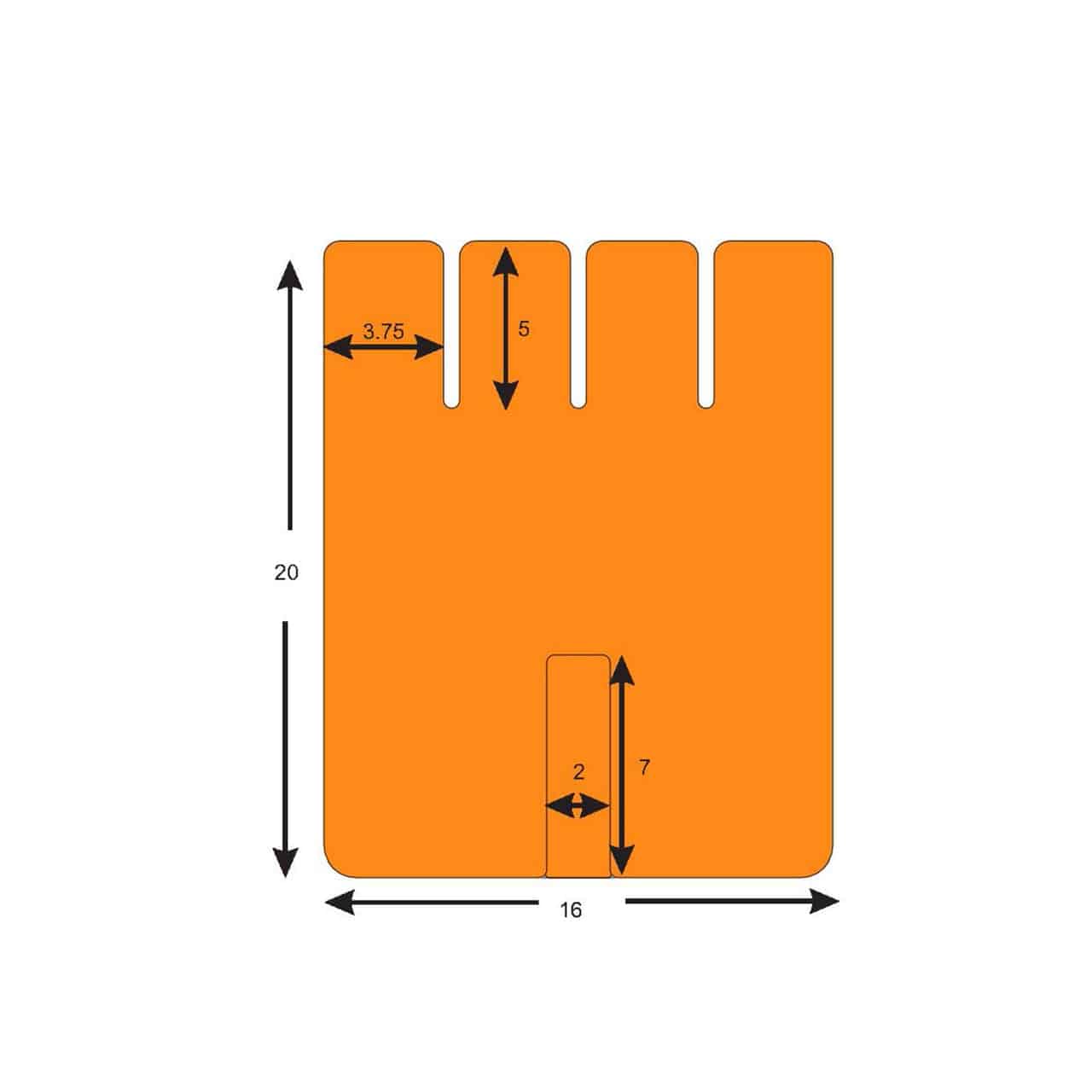

  • Sleeve Platform Size: 3.75″ x 5″ (4 positions)
  • Polo Placket Slot: 2″ x 7″
  • Construction: ¾″ aluminum
  • Surface: ⅜″ silicone rubber
  • Designed For: Sleeves, polo plackets, narrow garment areas

Note: This product drop ships directly from Action Engineering and is made to order. Please allow additional processing and shipping time.
