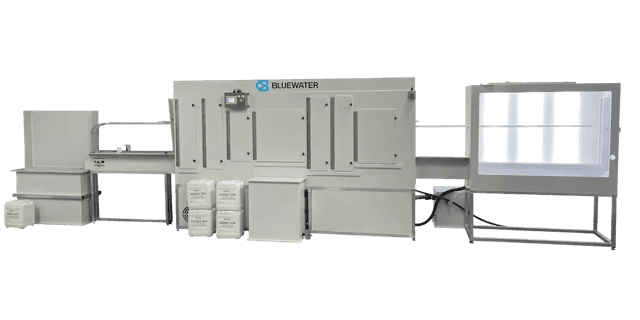

Bluewater R-2536S Inline Reclaim Machine – Automated Screen Reclaiming to Save Time & Labor

Bluewater Labs

The Bluewater R-2536S Inline Reclaim Machine is a mid-capacity automated screen reclaim system designed for screen printing shops that want to eliminate manual reclaim labor while maintaining consistent, professional results. By automating the removal of ink and emulsion, the R-2536S helps reduce labor costs, speed up turnaround times, and free employees to focus on other production tasks.

Capable of reclaiming up to 25 screens per hour—or 200 screens in a standard 8-hour shift—this inline reclaim machine delivers an ideal balance of throughput and footprint. Once screens are loaded, the system operates hands-free, allowing operators to multitask instead of standing at a washout booth.

The R-2536S effectively removes plastisol, water-based, solvent inks, and emulsions, ensuring screens are thoroughly cleaned and ready for immediate recoating. With multiple infeed and outfeed configuration options, the machine adapts easily to different screen sizes, shop layouts, and reclaim workflows.

$96,275.00

Description

Bluewater R-2536S Inline Reclaim Machine Key Features & Benefits for Screen Printers:

  • Automated inline screen reclaiming reduces manual labor
  • Processes up to 25 screens per hour (up to 200 screens per 8-hour shift)
  • Cuts labor costs by eliminating hands-on reclaim work
  • Hands-free operation allows staff to multitask
  • Precision cleaning removes ink and emulsion consistently
  • Handles multiple ink systems
    • Plastisol inks
    • Water-based inks
    • Solvent inks
  • Customizable configurations
    • Infeed lengths: 54″ or 72″
    • Outfeed lengths: 47″ or 94″
  • Optional upgrades available
    • Infeed soak tank (adds 44″)
    • Outfeed booth (adds 48″)
  • Heavy-duty construction designed for daily production use

Technical Highlights:

  • Machine Length: 120″
  • Air Requirements: 8 CFM @ 100 PSI
  • Water Connection: 1″ NPT
  • Drain Connection: 3/4″ or 1 1/4″ NPT utility pump
  • Electrical: 208/230V, 3-phase, 60A, 50/60Hz

Ideal For:

  • Screen printing shops seeking reclaim automation
  • Operations looking to reduce reclaim labor costs
  • Mid- to high-volume screen rooms
  • Shops needing consistent reclaim results with minimal oversight

The Bluewater R-2536S Inline Reclaim Machine is a smart automation upgrade for screen printers who want faster reclaim cycles, lower labor demands, and a more efficient screen room—without stepping up to full high-volume reclaim systems.

Technical Specifications

Technical Specifications:

  • Body Dimensions: Width options of 24″ or 36″ with recirculation tank, Length 120.0″, Height 75.0″
  • Screens Per Hour: Processes up to 25 screens per hour

Machine Requirements:

  • Air: Requires 8 cfm at 100 psi
  • Electrical: 208/230V, 3-phase, 60A, 50/60Hz
  • Water: Standard 1″ NPT fitting
  • Drain: 3/4″ or 1 1/4″ NPT utility pump
  • Max Frame Size: Accommodates screens up to 25″ x 36″
  • Minimum Machine Length: 18’6″

Machine Options:

  • Infeed Length Options: Choose from 54″ or 72″
  • Outfeed Length: Options include 47″ or 94″
  • Optional Upgrades:
    • Infeed Soak Tank: Adds 44.0″ to length
    • Outfeed Booth: Adds 48.0″ to length
