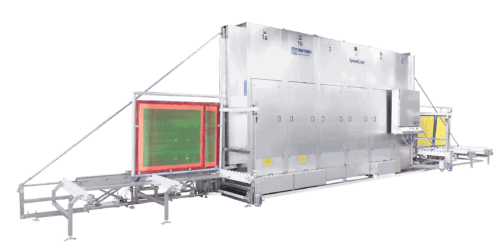

Zentner Speedline Modular Automatic Screen Wash & Reclaim System – Scalable Automation for High-Volume Screen Printing

Zentner

Zentner Speedline Modular Automatic Screen Wash & Reclaim System – Scalable Automation for High-Volume Screen Printing
Zentner Speedline
Zentner Speedline
Zentner Speedline
Zentner Speedline Modular Automatic Screen Wash & Reclaim System – Scalable Automation for High-Volume Screen Printing
Zentner Speedline
Zentner Speedline
Zentner Speedline

The Zentner Speedline Modular Automatic Screen Wash & Reclaim System is a fully automated, industrial-grade screen reclaiming solution engineered for professional screen printing operations that demand maximum efficiency, consistency, and scalability. Designed with modular flexibility in mind, the Speedline allows shops to start with a core system and expand throughput over time by simply adding modules—protecting your original investment as production demands grow.

Each Speedline system is built from high-grade, rust-free stainless steel (1.4301) and uses brush-free, non-contact cleaning technology, ensuring optimized reclaim results with minimal wear, low maintenance, and reduced chemical usage. This advanced automation dramatically reduces labor costs while delivering consistent, repeatable screen cleaning performance.

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)
Request A Quote
As low as $0 per month with ACG Equipment Financing
Category: Tags: , , , , , , , , ,

Description

Modular, Expandable Screen Reclaim Automation

The standard Zentner Speedline configuration consists of a conveyor-based system combining five or more independently controlled modules, designed to handle the complete reclaim process from start to finish:

  • Loading
  • Washing
  • Dwell
  • Rinsing
  • Decoating
  • Finishing
  • Off-loading

Each module operates as a self-sufficient unit, allowing printers to activate or deactivate individual processes depending on job requirements. The electronically adjustable conveyor speed gives precise control over dwell time and processing intensity—ideal for handling different ink systems, emulsions, and production volumes.

As production needs increase, additional modules can be added at any time, making the Speedline one of the most flexible reclaim platforms available.

Zentner Speedline Modular Automatic Screen Wash & Reclaim System Key Features & Benefits for Screen Printers:

  • Fully automated screen wash & reclaim system
  • Modular construction allows future line expansion at any time
  • Brush-free, non-contact cleaning for consistent results and minimal wear
  • Reduced chemical and water consumption for daily cost savings
  • Low-maintenance stainless steel construction built for industrial use
  • Independently controlled modules for maximum process flexibility
  • Electronically adjustable conveyor speed for precise reclaim control
  • Compatible with environmentally friendly reclaim chemicals
  • Designed for high-volume production environments

Optional Upgrades & System Enhancements

The Zentner Speedline can be expanded with advanced automation and filtration options, including:

  • InkLine Filtration System – Filters ink waste from reclaim water
  • StripLine Filtration System – Dedicated filtration for emulsion removal
  • Fully automatic loading magazines
  • Fully automatic off-loading magazines

These options further reduce labor requirements, improve water quality management, and maximize throughput—making the Speedline ideal for large contract printers and fully automated screen rooms.

Built for Long-Term Growth

The Zentner Speedline is not just a reclaim system—it’s a long-term automation platform. Its modular architecture ensures that as your shop grows, your reclaim system grows with it, eliminating the need for full system replacement and extending the operational life of your investment.

Ideal For:

  • High-volume screen printing shops
  • Contract printers and production facilities
  • Operations looking to eliminate manual reclaim labor
  • Shops planning future automation and scalability
  • Printers focused on environmental responsibility and efficiency

Technical Specifications

Functional description:

  1. Place the used screen printing stencil on the loading module.
  2. The ink-coated screen is transported through the wash module. Moving jet arms wash off the ink on both sides. The circulating cleaning agent is filtered and flows back to the supply tank.
  3. In the dwell module, excess cleaning agent flows back to the tank of the wash module. The remaining cleaning agent prepares the screen for the final removal.
  4. The rinse module removes any residue and remaining screen filler using high-pressure water from moving jet arms.
  5. In the de-coating module, the screens are sprayed on both sides at considerably high-pressure with de-coating agent. The result is an optimally deep effect and reduced ghost images. The chemicals used are filtered and returned to the cycle.
  6. The finish module processes the stencil on both sides using high-pressure water from moving jet arms, completely removing all template residue.
    The clean screen is issued at the offloading module.
  7. The unit is delivered with all the necessary documentation and CE mark. Special sizes on request.

Designed & Manufactured in Germany

Technical Sheets / Safety Data Sheets / Documents

Zentner Speedline Brochure
