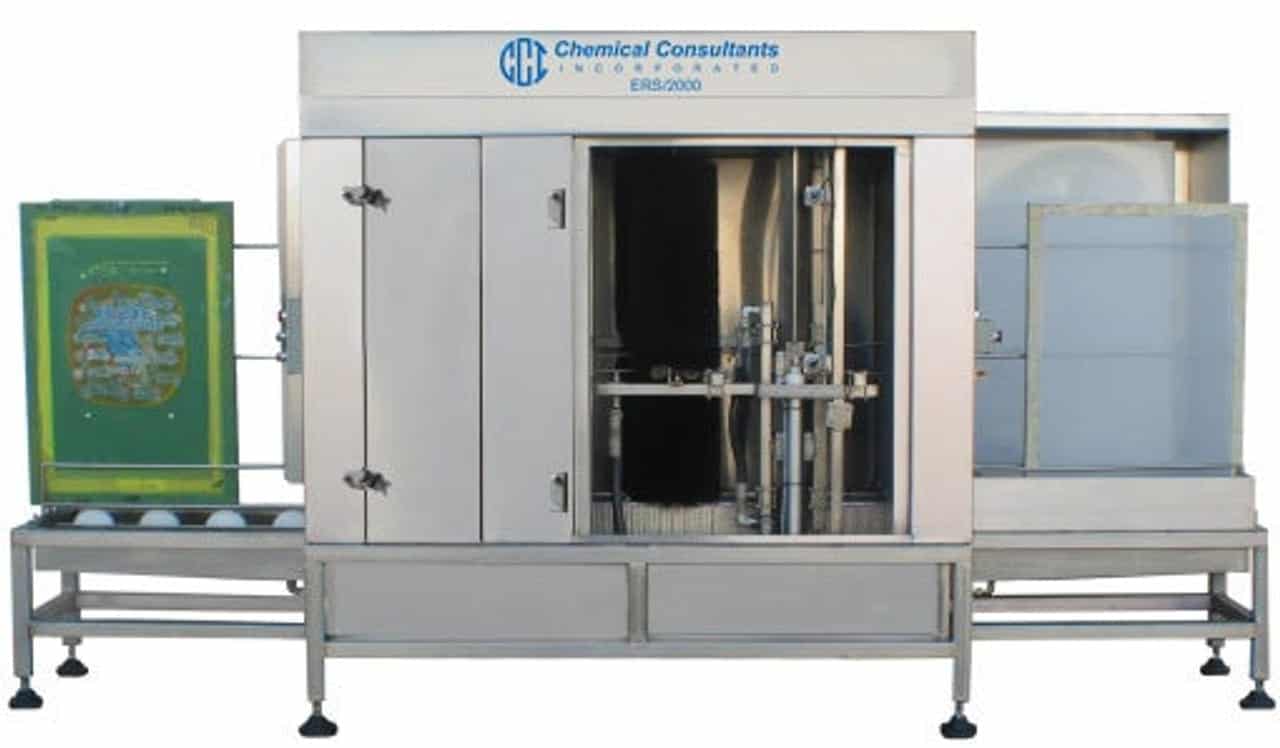

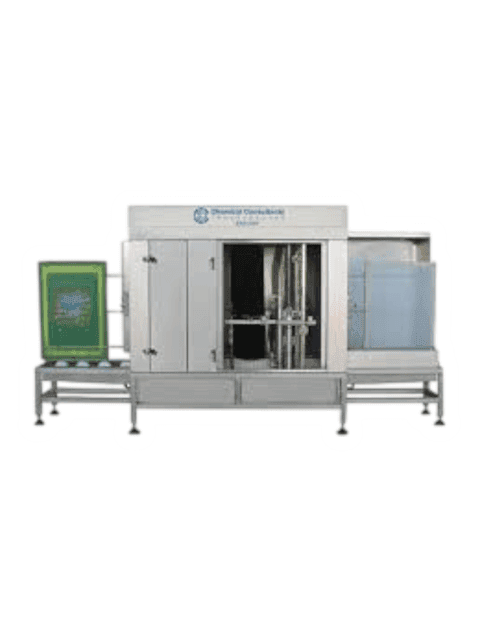

CCI ERS-2000 Emulsion Remover System – High-Speed Automated Screen Reclaiming

Name: CCI ERS-2000 Emulsion Remover System – High-Speed Automated Screen Reclaiming
SKU: CCI ERS2000
Availability: InStock

CCI

Revolutionize Your Emulsion Reclaim Process with Fully Automated Efficiency

The CCI ERS-2000 Emulsion Remover System is a cutting-edge, fully automated screen reclaiming solution designed to remove emulsion quickly and efficiently with minimal labor. This system eliminates manual reclaiming, significantly reduces chemical usage, and ensures consistent, high-quality results for screen printing operations. With a continuous-feed conveyor system, adjustable reclaim speed, and advanced safety features, the ERS-2000 is the ultimate solution for high-volume screen printing shops looking to optimize productivity.

Model

ERS / 1000 - 20” Height Capacity
ERS / 2000 - 40” Height Capacity
ERS / 3000 - 60” Height Capacity
ERS / 4000 - 90” Height Capacity

Clear

--- GLOBAL RULE LOCATIONS ---
Array
(
    [0] => stdClass Object
        (
            [post_id] => 1714
            [meta_key] => _pricing_rules
        )

    [1] => stdClass Object
        (
            [post_id] => 2853
            [meta_key] => _pricing_rules
        )

    [2] => stdClass Object
        (
            [post_id] => 2854
            [meta_key] => _pricing_rules
        )

    [3] => stdClass Object
        (
            [post_id] => 2884
            [meta_key] => _pricing_rules
        )

    [4] => stdClass Object
        (
            [post_id] => 2937
            [meta_key] => _pricing_rules
        )

    [5] => stdClass Object
        (
            [post_id] => 2941
            [meta_key] => _pricing_rules
        )

    [6] => stdClass Object
        (
            [post_id] => 2944
            [meta_key] => _pricing_rules
        )

    [7] => stdClass Object
        (
            [post_id] => 2955
            [meta_key] => _pricing_rules
        )

    [8] => stdClass Object
        (
            [post_id] => 2956
            [meta_key] => _pricing_rules
        )

    [9] => stdClass Object
        (
            [post_id] => 2957
            [meta_key] => _pricing_rules
        )

    [10] => stdClass Object
        (
            [post_id] => 2958
            [meta_key] => _pricing_rules
        )

    [11] => stdClass Object
        (
            [post_id] => 2959
            [meta_key] => _pricing_rules
        )

    [12] => stdClass Object
        (
            [post_id] => 2960
            [meta_key] => _pricing_rules
        )

    [13] => stdClass Object
        (
            [post_id] => 2961
            [meta_key] => _pricing_rules
        )

    [14] => stdClass Object
        (
            [post_id] => 2962
            [meta_key] => _pricing_rules
        )

    [15] => stdClass Object
        (
            [post_id] => 2963
            [meta_key] => _pricing_rules
        )

    [16] => stdClass Object
        (
            [post_id] => 2964
            [meta_key] => _pricing_rules
        )

    [17] => stdClass Object
        (
            [post_id] => 2965
            [meta_key] => _pricing_rules
        )

    [18] => stdClass Object
        (
            [post_id] => 2966
            [meta_key] => _pricing_rules
        )

    [19] => stdClass Object
        (
            [post_id] => 2967
            [meta_key] => _pricing_rules
        )

    [20] => stdClass Object
        (
            [post_id] => 2968
            [meta_key] => _pricing_rules
        )

    [21] => stdClass Object
        (
            [post_id] => 2977
            [meta_key] => _pricing_rules
        )

    [22] => stdClass Object
        (
            [post_id] => 3114
            [meta_key] => _pricing_rules
        )

    [23] => stdClass Object
        (
            [post_id] => 4638
            [meta_key] => _pricing_rules
        )

    [24] => stdClass Object
        (
            [post_id] => 4639
            [meta_key] => _pricing_rules
        )

    [25] => stdClass Object
        (
            [post_id] => 4667
            [meta_key] => _pricing_rules
        )

    [26] => stdClass Object
        (
            [post_id] => 3690
            [meta_key] => _pricing_rules
        )

    [27] => stdClass Object
        (
            [post_id] => 3692
            [meta_key] => _pricing_rules
        )

    [28] => stdClass Object
        (
            [post_id] => 3731
            [meta_key] => _pricing_rules
        )

    [29] => stdClass Object
        (
            [post_id] => 3752
            [meta_key] => _pricing_rules
        )

    [30] => stdClass Object
        (
            [post_id] => 3762
            [meta_key] => _pricing_rules
        )

    [31] => stdClass Object
        (
            [post_id] => 3792
            [meta_key] => _pricing_rules
        )

    [32] => stdClass Object
        (
            [post_id] => 3852
            [meta_key] => _pricing_rules
        )

    [33] => stdClass Object
        (
            [post_id] => 3980
            [meta_key] => _pricing_rules
        )

    [34] => stdClass Object
        (
            [post_id] => 4013
            [meta_key] => _pricing_rules
        )

    [35] => stdClass Object
        (
            [post_id] => 4020
            [meta_key] => _pricing_rules
        )

    [36] => stdClass Object
        (
            [post_id] => 4022
            [meta_key] => _pricing_rules
        )

    [37] => stdClass Object
        (
            [post_id] => 4044
            [meta_key] => _pricing_rules
        )

    [38] => stdClass Object
        (
            [post_id] => 4205
            [meta_key] => _pricing_rules
        )

    [39] => stdClass Object
        (
            [post_id] => 4270
            [meta_key] => _pricing_rules
        )

    [40] => stdClass Object
        (
            [post_id] => 4272
            [meta_key] => _pricing_rules
        )

    [41] => stdClass Object
        (
            [post_id] => 4620
            [meta_key] => _pricing_rules
        )

    [42] => stdClass Object
        (
            [post_id] => 4651
            [meta_key] => _pricing_rules
        )

    [43] => stdClass Object
        (
            [post_id] => 4673
            [meta_key] => _pricing_rules
        )

    [44] => stdClass Object
        (
            [post_id] => 4946
            [meta_key] => _pricing_rules
        )

    [45] => stdClass Object
        (
            [post_id] => 5355
            [meta_key] => _pricing_rules
        )

    [46] => stdClass Object
        (
            [post_id] => 5390
            [meta_key] => _pricing_rules
        )

    [47] => stdClass Object
        (
            [post_id] => 5398
            [meta_key] => _pricing_rules
        )

    [48] => stdClass Object
        (
            [post_id] => 5407
            [meta_key] => _pricing_rules
        )

    [49] => stdClass Object
        (
            [post_id] => 5445
            [meta_key] => _pricing_rules
        )

)

Request A Quote

As low as $0 per month with

SKU: CCI ERS2000 Category: Screen Printing Washout Booths and Automated Cleaning Equipment

Description

CCI ERS-2000 Emulsion Remover System Key Features & Benefits

Heavy-Duty Stainless Steel Construction – Built for long-term durability and resistance to harsh chemicals.
Reclaims Over 600 Screens Per Shift – Handles high production demands with ease.
Accepts Multiple Screen Sizes – No time-consuming adjustments or racks needed.
Adjustable Reclaim Speed (1-8 ft/min) – Customizable speed to meet shop-specific needs.
2nd Pass De-Haze Feature – Ensures deep cleaning and stencil-free screens.
Continuous-Feed Conveyor System – Automates reclaiming for seamless workflow.
User-Friendly Touch Screen LCD Display – Intuitive controls for easy operation.
Dual Rotary Brushes (Adjustable RPM) – Ensures thorough removal of emulsion.
Reciprocating Washing Assemblies – Maximizes cleaning efficiency.
Adjustable High-Pressure Water (300-2700 PSI) – Provides powerful rinsing capabilities.
Flood Rinse Section – Completes the cleaning process with a final rinse.
Proprietary Chemical Application System – Reduces chemical waste and enhances reclaiming efficiency.
Low Maintenance Design – Minimizes downtime and maximizes production.

Advanced Safety Features

OSHA Compliant – Meets industry safety standards.
Eliminates Employee Chemical Exposure – Fully enclosed reclaiming process for a safer work environment.
Emergency Stop Switches – Enhances operator safety.
Clutch Safety System (Conveyor) – Prevents potential hazards during operation.
No External Moving Parts – Reduces the risk of workplace accidents.
Over-Run Switch – Prevents screen pile-up and ensures smooth operation.

📦 Note: This product drop ships directly from the manufacturer. Please allow additional processing and shipping time.

✅ Upgrade your screen reclaiming process with the CCI ERS-2000 – the ultimate solution for efficiency, safety, and cost savings.

Technical Specifications

CCI ERS-2000 Emulsion Remover System – Technical Specifications

Available Models & Screen Height Capacities

ERS / 1000 – 20” Height Capacity
ERS / 2000 – 40” Height Capacity
ERS / 3000 – 60” Height Capacity
ERS / 4000 – 90” Height Capacity

Performance & Operation

Screen Reclaiming Capacity: 600+ screens per shift
Adjustable Reclaim Speed: 1-8 feet per minute
Brush System: Dual rotary brushes with adjustable RPM
High-Pressure Water System: 300-2700 PSI
Reciprocating Washing Assemblies: Ensures deep cleaning and emulsion removal
Flood Rinse Section: Provides a thorough rinse for complete stencil removal
2nd Pass De-Haze Feature: Allows for additional deep cleaning

Construction & Design

Material: Heavy-duty stainless steel construction
Continuous-Feed Conveyor System: For uninterrupted processing
User Interface: Touch screen LCD display for easy operation
Closed-Loop Chemical Recirculation: Reduces chemical waste and ensures efficiency

Safety Features

OSHA Compliant: Meets industry safety standards
Emergency Stop Switches: Enhances operator safety
Clutch Safety System (Conveyor): Prevents operational hazards
No External Moving Parts: Minimizes workplace accidents
Over-Run Switch: Prevents screen pile-up

Power & Utility Requirements

Power Supply: 230V, 3 Phase, 80A breaker (63 FLA)
Water Supply: 3/4” female pipe connection, 10 GPM minimum, 40 PSI minimum
Air Supply: 1/4” female pipe connection, 1/2” at 100 PSI, 15 CFM required
Drain Requirements: 3” male pipe connection, 3” floor drain or pit required

Optional Add-Ons & Customization

Remote Communication Link / Modem: Enables remote monitoring and system updates
Light / Washout Booth (Exit Table): Enhances post-reclaim inspection and drying
Inline Dryer: Speeds up the drying process for increased efficiency

📦 Note: This product drop ships directly from the manufacturer. Please allow additional processing and shipping time.

✅ For high-efficiency, fully automated screen reclaiming, the CCI ERS-2000 is the ultimate solution for professional screen printing operations.
