ROQ ROQdry ECO Quartz Flash Dryer – Automatic Precision Curing for ROQ Presses

Name: ROQ ROQdry ECO Quartz Flash Dryer – Automatic Precision Curing for ROQ Presses - River City Supply
SKU: ROQ Flash
Price: 1.00 USD
Availability: BackOrder

ROQ

The ROQ ROQdry ECO Quartz Flash Dryer is a fully automatic flash-cure unit engineered to work seamlessly with ROQ automatic screen printing presses. Its compact head sits under the print heads and syncs directly with the press — no proximity sensors needed — flashing every garment as the pallet indexes. Fast medium-wavelength quartz lamps plus dual radiant & convection heat gel plastisol and cure water-based inks with selectable heat zones and an air-cooled design for stable, high-speed production. Six models from 8″×8″ to 31″×43″.

Automatic ROQ integration
Syncs with the press — no proximity sensors

Medium-wave quartz lamps
Rapid warm-up, fast flashing

Dual heat transfer
Radiant + convection curing

Selectable heat zones
Flash only the area you need

Air-cooled for speed
Stable operation on long runs

Six sizes · 3–25.5 kVA
8″×8″ up to 31″×43″

Genuine ROQ equipment — configured to your press & power supply. Six models from 8″×8″ to 31″×43″. Not sure which ECO fits your ROQ press? Call 512-454-0505.

SKU: ROQ Flash Categories: ROQ Automatic Screen Printing Presses, Screen Printing Equipment, Screen Printing Flash Dryers Tags: automatic flash dryer for screen printing, automatic quartz flash dryer, compact flash dryer for automatic presses, electric quartz flash dryer, energy efficient flash dryer, garment screen printing flash dryer, high efficiency flash dryer, precision flash curing unit, ROQ flash dryer, ROQ flash dryer equipment, ROQ ROQdry ECO specifications, ROQdry ECO quartz flash dryer, screen printing flash cure system, screen printing flash dryer for ROQ presses

Description

ROQ ROQdry ECO — Automatic Quartz Flash, Built for ROQ Presses

Flashing on an automatic press shouldn’t be a bottleneck. The ROQdry ECO integrates directly with your ROQ press and fires automatically as each pallet indexes underneath — no proximity sensors, no manual timing. Medium-wavelength quartz lamps warm up fast and combine radiant and convection heat to gel plastisol and cure water-based inks, while selectable heat zones and an air-cooled body keep it precise and stable at full production speed.

Why Printers Choose the ROQdry ECO

Automatic ROQ Integration

Wires into your ROQ automatic press and flashes in sync with the index — no add-on proximity sensors, no guesswork, perfectly timed cures every cycle.

Fast Medium-Wave Quartz Lamps

Special medium-wavelength quartz lamps reach temperature almost instantly for rapid flashing and consistent results across the whole area.

Dual Heat Transfer

Combines radiant and convection heat to gel plastisol and drive moisture out of water-based inks — versatile across ink systems.

Selectable Heating Zones

Switch on only the lamp zones you need to match the print, saving energy and protecting the garment outside the image area.

Air-Cooled & Stable

An air-cooled design keeps the unit running cool and consistent through long, high-speed production runs.

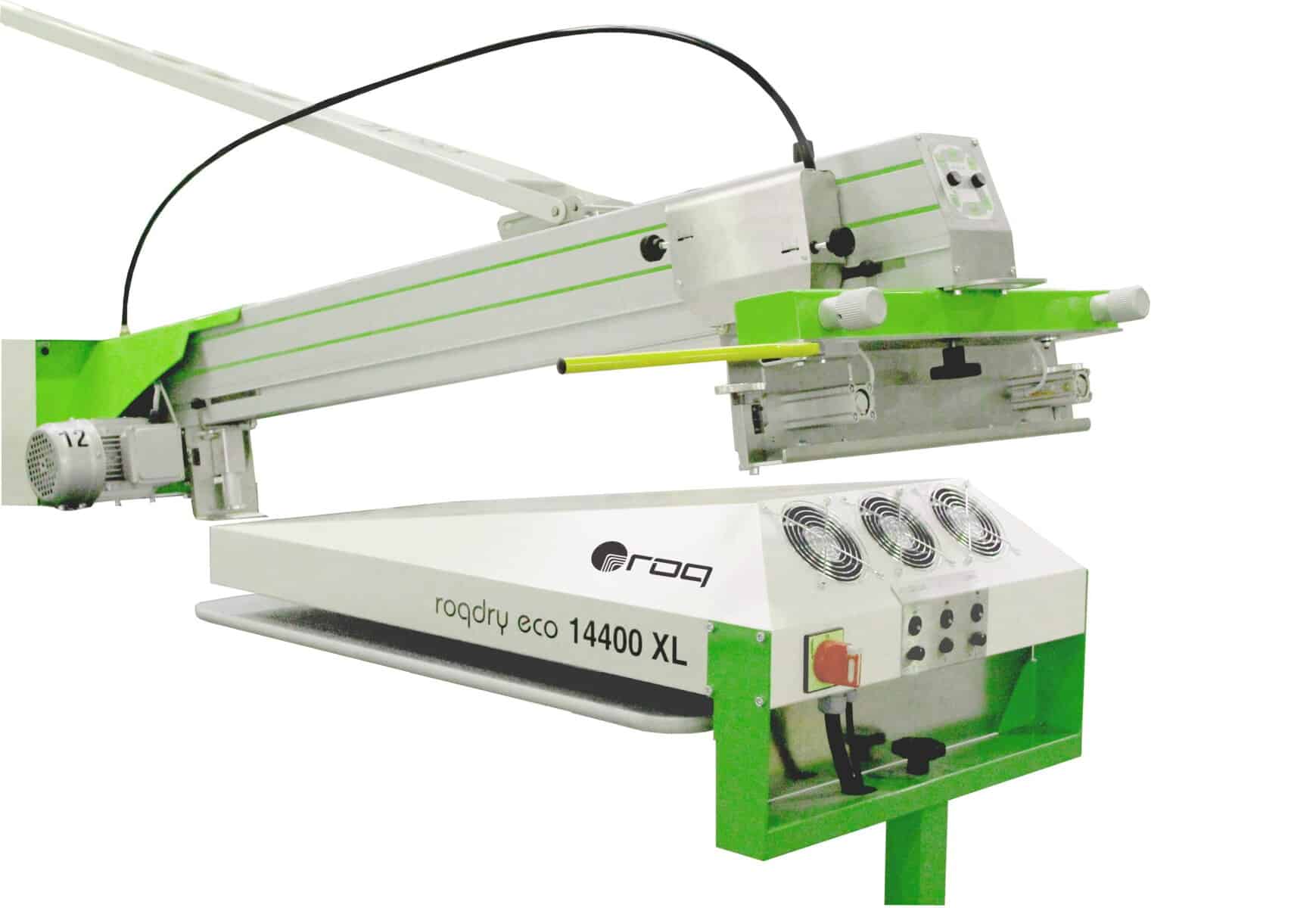

Fits Under the Print Heads

A compact profile tucks neatly under the ROQ print heads so it flashes on-press without stealing a station or floor space.

How It Works

Mount the ROQdry ECO in a flash position on your ROQ press and connect it to the machine. Set your time, temperature and active heat zones on the controls. As the press indexes, each pallet passes under the ECO and is flashed automatically — plastisol gels between colors and water-based inks are driven toward a cure — with no operator input and no separate sensor to trip. The result is fast, repeatable flashing that keeps pace with your ROQ.

ROQdry ECO Model Lineup

Six models cover everything from small left-chest prints to oversized all-over graphics. Match the drying area to your ROQ pallet and print size:

Model	Drying area	(mm)	Power	Quartz lamps
ROQdry ECO 3000 S	8″ × 8″	200 × 200 mm	3 kVA	6 × 500 W

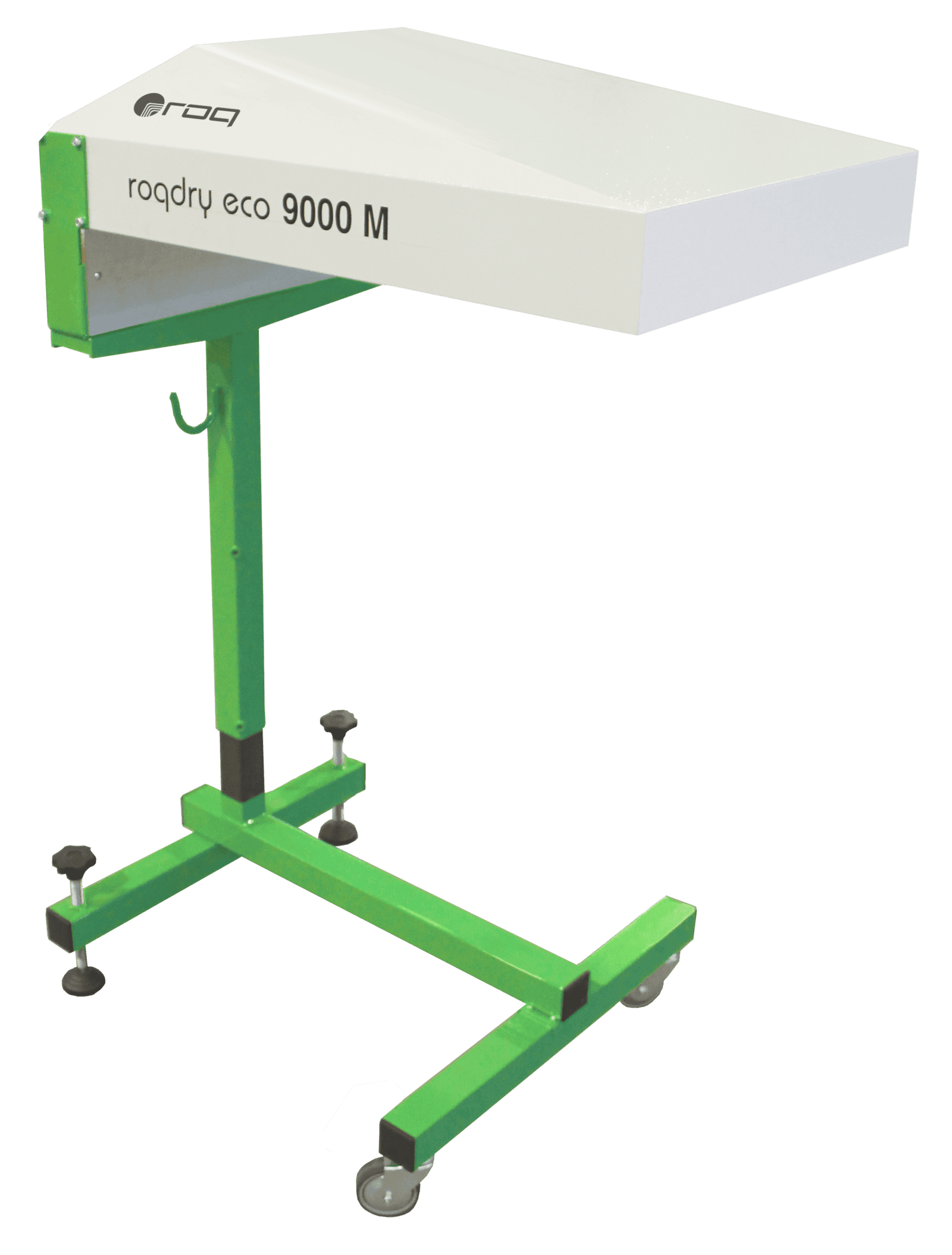

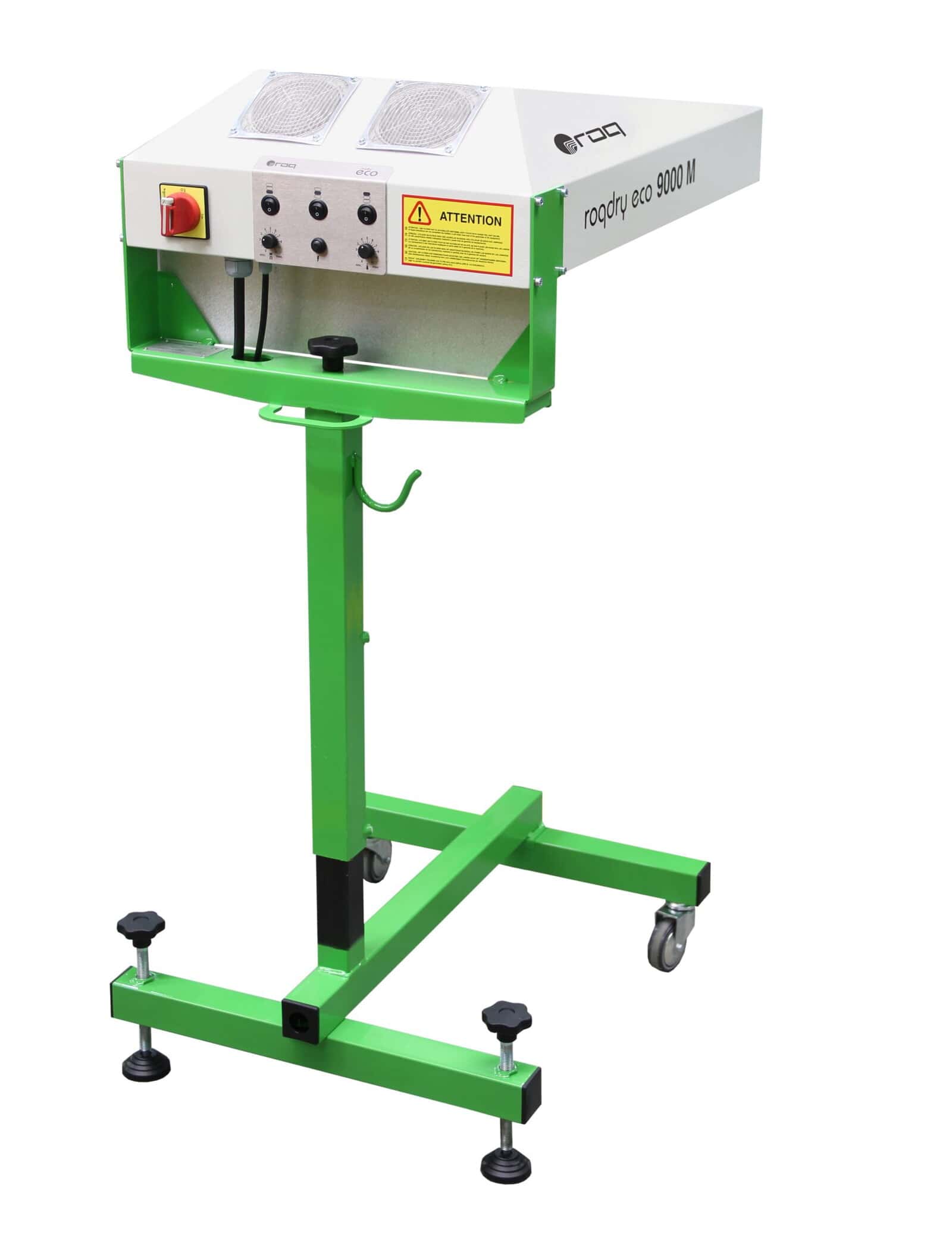

ROQdry ECO 9000 M	16″ × 20″	400 × 500 mm	9 kVA	9 × 1000 W
ROQdry ECO 14400 XL	20″ × 28″	500 × 700 mm	14.4 kVA	12 × 1200 W
ROQdry ECO 18000 XL+	24″ × 31″	600 × 800 mm	18 kVA	15 × 1200 W
ROQdry ECO 20400 2XL	28″ × 39″	700 × 1000 mm	20.4 kVA	24 × 850 W

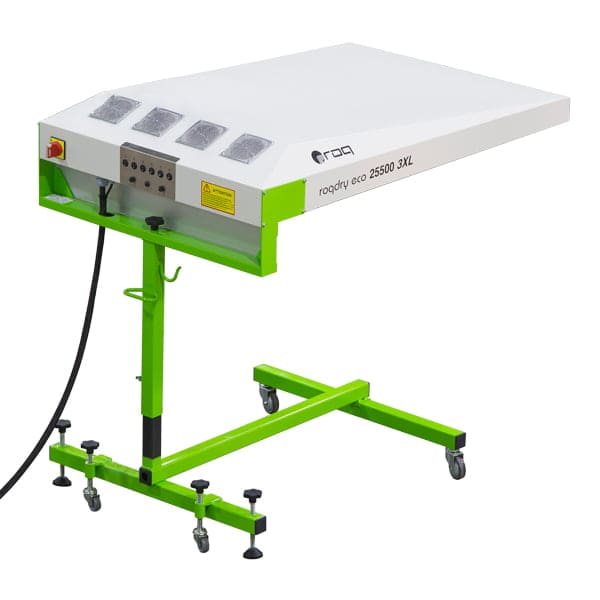

ROQdry ECO 25500 3XL	31″ × 43″	800 × 1100 mm	25.5 kVA	30 × 850 W

All models run on 1×230V, 3×230V or 3×400V (32A/63A plug). Match the ECO drying area to your ROQ pallet/print size.

Which model do I need?

Match the ECO drying area to your largest print. The 3000 S (8″×8″) suits small prints and compact presses; the 9000 M–18000 XL+ cover most jersey and tee work; the 20400 2XL and 25500 3XL handle oversized and all-over prints. We’ll confirm the right fit for your press.

ECO vs. Evolution

The ECO delivers automatic quartz flashing at a great value. Need closed-loop temperature control? The ROQ Dry Evolution with Smart Probe adds a temperature-sensing probe for even tighter cure control on demanding jobs.

Works With Your ROQ Press & Inks

Integrates with ROQ automatic screen printing presses — round and oval platforms.

Flashes plastisol and water-based inks with adjustable time, temperature and heat zones.

Runs on 1-phase or 3-phase power (1×230V, 3×230V or 3×400V) to suit your shop.

Compare other flash cure units or browse all screen printing equipment.

Spec the right ECO for your press

Tell us your ROQ press model, print sizes and shop power and we’ll configure the correct ROQdry ECO — model, voltage and mounting.

Call 512-454-0505

Explore ROQ equipment

See ROQ presses, dryers and accessories built to run together.

Shop ROQ

Technical Specifications

ROQ ROQdry ECO — Technical Specifications

Specification	Detail
Product	ROQ ROQdry ECO Quartz Flash Dryer
Manufacturer	ROQ (S.Roque / ROQ International)
Type	Fully automatic quartz flash cure unit for ROQ presses
Heating technology	Medium-wavelength quartz lamps; dual radiant + convection heat
Press integration	Automatic sync with ROQ automatic presses — no proximity sensors required
Heat zones	Selectable heating zones for custom flash areas
Cooling	Air-cooled for stable high-speed operation
Controls	Adjustable time and temperature
Models	Six: 3000 S, 9000 M, 14400 XL, 18000 XL+, 20400 2XL, 25500 3XL
Drying area range	8″×8″ (200×200 mm) to 31″×43″ (800×1100 mm)
Power range	3 kVA to 25.5 kVA
Quartz lamps	6 to 30 per unit (model dependent)
Electrical	1×230V, 3×230V or 3×400V (32A / 63A plug)
Inks	Plastisol and water-based
Mounting	Compact — fits under ROQ print heads
Warranty	ROQ limited warranty

Model Lineup & Sizes

Model	Drying area	(mm)	Power	Quartz lamps
ROQdry ECO 3000 S	8″ × 8″	200 × 200 mm	3 kVA	6 × 500 W
ROQdry ECO 9000 M	16″ × 20″	400 × 500 mm	9 kVA	9 × 1000 W
ROQdry ECO 14400 XL	20″ × 28″	500 × 700 mm	14.4 kVA	12 × 1200 W
ROQdry ECO 18000 XL+	24″ × 31″	600 × 800 mm	18 kVA	15 × 1200 W
ROQdry ECO 20400 2XL	28″ × 39″	700 × 1000 mm	20.4 kVA	24 × 850 W
ROQdry ECO 25500 3XL	31″ × 43″	800 × 1100 mm	25.5 kVA	30 × 850 W

All models run on 1×230V, 3×230V or 3×400V (32A/63A plug). Match the ECO drying area to your ROQ pallet/print size.

Related & Compare

ROQ Dry Evolution
Adds Smart Probe temp control ROQ Presses & Equipment
Automatic screen printing presses All Flash Dryers
Compare flash cure units Screen Printing Inks
Plastisol & water-based Screen Printing Equipment
Browse everything

Technical Sheets / Safety Data Sheets / Documents

ROQdry ECO Flash Brochure

FREQUENTLY ASKED QUESTIONS

ROQ ROQdry ECO — Frequently Asked Questions

What is the ROQ ROQdry ECO?

It’s a fully automatic quartz flash-cure unit engineered for ROQ automatic screen printing presses. It mounts in a flash position, syncs with the press, and flashes each garment automatically as the pallet indexes underneath.

Which presses does it work with?

It’s designed to integrate with ROQ automatic presses (round and oval platforms). Its compact head fits under the print heads and connects directly to the machine.

Does it need proximity sensors?

No. The ECO integrates with the ROQ press electronically and fires in sync with the index — there are no add-on proximity sensors to mount or trip.

What inks can it cure?

It flashes plastisol between colors and helps cure water-based inks, using medium-wavelength quartz lamps and dual radiant + convection heat with adjustable time and temperature.

What are the selectable heat zones?

You can switch on only the lamp zones that match your print area, so you flash just where the ink is — saving energy and protecting the rest of the garment.

Which model/size should I choose?

Match the drying area to your largest print: 3000 S (8″×8″) for small prints, 9000 M through 18000 XL+ for most tee and jersey work, and 20400 2XL / 25500 3XL for oversized and all-over prints. See the model table above.

What power supply does it need?

Models run on 1×230V, 3×230V or 3×400V (32A or 63A plug), from 3 kVA up to 25.5 kVA depending on size. We’ll confirm the right configuration for your shop.

How is the ECO different from the ROQ Dry Evolution?

The ECO is the automatic quartz flash at a great value. The ROQ Dry Evolution adds a Smart Probe that senses temperature for closed-loop cure control on more demanding jobs.

Let’s spec your ROQdry ECO.

Tell us your ROQ press, print sizes and shop power and we’ll match the right ECO model and voltage — and compare it to the Evolution if you want Smart Probe control. Message us on Tidio, email, or call.
