Geo Knight DK20SPT Twin Heat Press | 16×20 Dual-Station Automatic Swing-Away

Geo Knight

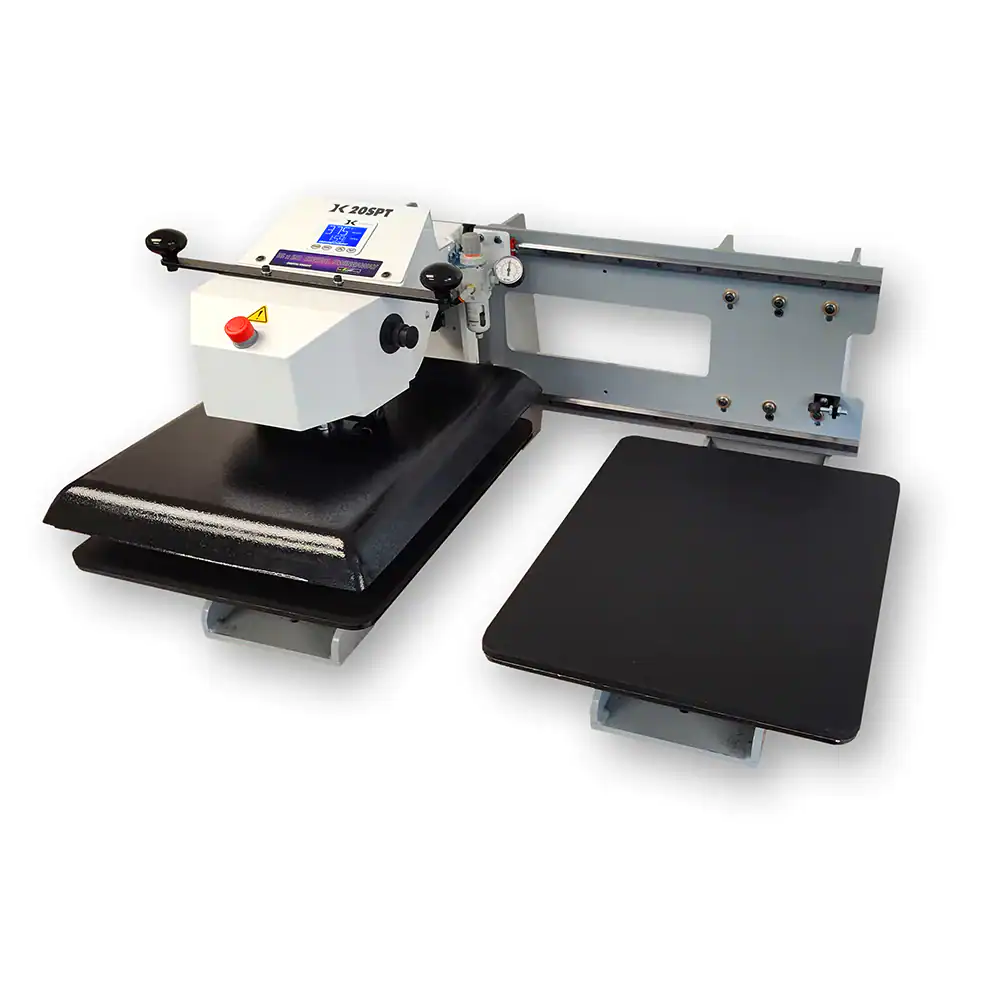

Geo Knight DK20SPT Digital Knight 16x20 TWIN Air-Op Swing-Away Heat Press

The Geo Knight DK20SPT 16×20 Twin Air-Op Swing-Away Heat Press – The DK20SPT takes everything great about the DK20SP and doubles your throughput with a dual-shuttle twin-station framework. Load and unload one side while the other side presses – dramatically cutting operator and platen idle time for demanding, high-volume production runs.

Twin Dual-Station

Load one side while the other presses

16″ x 20″ Platen

Full-front designs at high volume

Air-Operated Automatic

Push-button pressing, up to 3,000 lbs

32-600°F Digital

70 presets, dual pre-press timer

Typically in stock and ready to ship. Need us to confirm inventory before ordering? Message us on the chat, call (512) 454-0505, or email [email protected].

Questions before you buy? Call (512) 454-0505 • Equipment financing available • Free lifetime Geo Knight tech support

$4,950.00

Category: Automatic Heat Presses Tags: 16x20 twin swing away, automatic heat press, DK20SPT, DK20SPT heat press, DTF heat press, dual station heat press, Geo Knight DK20SPT, geoknight twin press, high production heat press, twin heat press

Description

Geo Knight DK20SPT 16×20 Twin Air-Op Swing-Away Heat Press

The DK20SPT takes everything great about the DK20SP and doubles your throughput with a dual-shuttle twin-station framework. Load and unload one side while the other side presses – dramatically cutting operator and platen idle time for demanding, high-volume production runs.

Twin Dual-Station Layout

Load and unload one side while the other presses – big cuts to idle time and big gains in throughput.

3,000 lbs of Force

Full 16×20 pressing power for HTV, DTF, plastisol, and sublimation at volume.

TWIN All-Thread Loading

Slide garments over each lower table for fast, clean, repeatable positioning.

Digital Knight Control

Same proven electronics as the DK20SP – 70 presets, dual pre-press timer, cycle tracking.

Why Shops Choose the DK20SPT

Double your output

The dual-shuttle design keeps the heat platen working while you load, so it is rarely idle.

One operator, more shirts

A single operator can keep both stations moving for serious production gains.

Proven DK20SP platform

All the reliability of the DK20SP with a twin-station framework on top.

Bridges manual and high-production

The step between heavy-duty manual presses and full factory shuttle machines.

See It in Action

Key Features

TWIN All-Thread table loading design

Fully digital temperature control, 32°-600°F range

Automatic digital timer and dual pre-press timer

Air regulator and gauge, 20-100 PSI (compressor required)

Total applied force up to 3,000 lbs max

Accommodates materials up to 2″ thick

Teflon-coated 3/4″ thick heat platen

70 programmable presets

Records number of pressing cycles

User-selectable end-of-cycle alarms

Solid steel welded framework

Interchangeable tables

SuperCoil-Microwinding heater technology

Temperature accuracy +/-2°F, switchable °C/°F

Warranty & Support

FREE Lifetime Tech Support

Talk to a real Geo Knight tech for the life of the press.

Lifetime Heat Platen Warranty

The heat platen is covered for life.

5-Year Frame / 3-Year Controller

Long coverage on the parts that matter most.

1-Year Parts Warranty

Full parts coverage in year one.

Equipment financing available – as low as about $120/month through our financing partner. Section 179 tax advantages may apply. See financing options.

Pairs Great With

Build out your production line and keep it running:

All Heat Presses Automatic Heat Presses Geo Knight DK20SP (Single)Geo Knight 394-TS (Shuttle)Geo Knight DK25SP (20×25)Heat Transfer Vinyl

Sizing up your next press?

Tell us your production volume, garments, and shop power and we will help you spec the right press. Message us on Tidio or call (512) 454-0505.

Call (512) 454-0505

Technical Specifications

Technical Specifications
Product	Geo Knight DK20SPT Twin Air-Op Swing-Away
Brand	Geo Knight (Digital Knight)
SKU	GEO DK20SPT
Platen Size	16″ x 20″ (twin station)
Operation	Air-operated automatic, dual-shuttle twin station
Max Force	3,000 lbs
Temperature Range	32°-600°F
Air Compressor Required (min)	7 gal, 1 cfm, 100 psi, 1/4″ line
Presets	70 programmable
Material Thickness	Up to 2″
Heat Platen	Teflon-coated 3/4″ thick
Weight	270 lbs
Electrical	1800W / 15A / 120V (+$35 for 220V international)
Shipping Dimensions	32″ D x 40″ W x 24″ H
Warranty	Lifetime platen, 5-yr frame, 3-yr controller, 1-yr parts, free lifetime tech support
Fulfillment	Typically in stock – message us on chat, call, or email to confirm inventory

Specs per Geo Knight. An air compressor is required for all air-operated presses. Need help confirming power or air for your shop? Call (512) 454-0505.

Technical Sheets / Safety Data Sheets / Documents

FREQUENTLY ASKED QUESTIONS

What makes the DK20SPT different from the DK20SP?

The DK20SPT is the twin-station version. It adds a second shuttling table so you can load and unload one side while the other presses, roughly doubling throughput for one operator.

How much air does it need?

A minimum 7-gallon compressor rated 1 cfm at 100 psi with a 1/4″ line. It runs on the standard 20-100 PSI range.

Is it one operator or two?

One operator can run both stations – loading the idle side while the active side presses keeps production moving continuously.

What can it press?

HTV, DTF, plastisol transfers, and sublimation on the 16×20 platen, plus substrates up to 2″ thick.

How does it ship?

This item is typically in stock and ready to ship. If you would like us to confirm inventory before ordering, message us on the chat, call (512) 454-0505, or email [email protected].

Still have a question?

We know Geo Knight presses inside and out and can help you spec the right one.

Call (512) 454-0505
