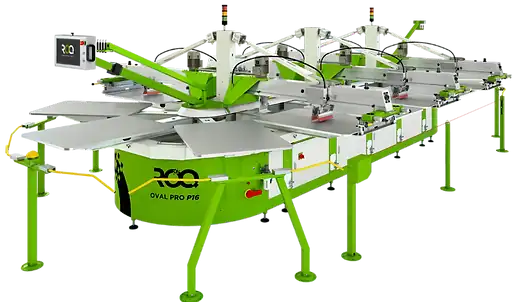

⬭ Oval Format — Fundamentally Different From a Carousel

A ROQ Oval gives you two open stations after each print head — for flash placement, cool-down zones, secondary-job staging, or simultaneous-job workflows. A traditional carousel forces every pallet through every station. The oval opens up workflow possibilities that are geometrically impossible on a carousel.

🤝 Hybrid-Ready — Most Efficient Digital Integration

Adding a ROQ Hybrid digital print module to the Oval takes only one print position — versus multiple positions on a carousel press. That means you lose less screen printing capacity when adding digital capability. For shops planning a hybrid screen + digital workflow, the Oval is the most capital-efficient platform in the ROQ lineup.

💧 Water-Based Optimized — Open Stations Enable Cool-Down

Water-based and discharge inks often need flash-and-cool cycles between colors. The Oval’s open stations after each print head make it natively suited to water-based workflows — where a carousel may need double-flashing or slower belt speeds.

🏭 Run Multiple Jobs Simultaneously

Because the Oval geometry doesn’t force every pallet through every station, your operators can run two or three separate jobs on the same press at the same time — using different print heads for different jobs and different pallets for different runs. Shops running multi-brand contract work find this dramatically reduces setup-to-print ratios.

📐 Massive Configuration Range — 16 to 56 Pallets, 1 to 20 Colors

Configure for anywhere from moderate multi-color production up to all-over prints with 56 extra-wide pallets and 6–26 integrated flash cure connection ports. Expand at any time — the Oval is the only scalable ROQ press that grows in both length and capability.

🎯 ±0.001″ Index Precision — Servo Motors + Laser Alignment

ROQ’s linked drive system uses servo motors to index the press, combined with laser alignment, to hold the most precise registration in the market at ±0.001″ (±0.025mm) pallet accuracy. Same registration spec as the flagship ECO, on an oval footprint.

🎛️ Central 10″–15″ Polychromatic Touchscreen

Streamline your workflow with an intuitive full-color touch interface for global machine controls, diagnostics, and job setup. Every peripheral (Flash, FLOCK, FOIL) controls through the central console for unified operation.

🔺 Aluminum Honeycomb Pallets

Durable, lightweight, and ultra-flat — these pallets ensure precise, repeatable prints across large production runs. The no-warp design dissipates flash heat and stays dimensionally stable.

⚙️ Electric Squeegees with AC Variator

Smooth, adjustable print stroke speed for optimal ink deposit and performance. Per-head control means different ink systems (plastisol + water-based) can run at different speeds on the same press.

🖥️ Independent Print Head Control Panels

Each print head has its own control panel for flood/print speed, stroke, squeegee angle, and lift — giving operators granular per-station optimization without touching the central console.

🔩 Pneumatic Screen Holder — U-Clamp or Pin System

Compatible with both U-clamp and pin-system screen holders to accommodate your shop’s existing screen preferences. No need to re-mesh or re-tension your existing screens to match a new press.

⚡ Quick Access High-Lift Heads

Raise individual print heads for easy cleaning, screen changes, or setup without interrupting the full press. Keep production running on the other heads.

🎯 Micro Registration with Vernier Scale

Fine-tune screen alignment to pinpoint precision on every pass. Built-in vernier scale makes dialing in tight registration jobs straightforward and repeatable.

💨 Integrated Flash Cure Compatibility

Designed to support under-head flash units directly integrated into the press workflow — save floor space and maintain production flow. Six to 26 flash cure connection ports depending on configuration.

🏛️ 15+ Years of Oval-Press Market Leadership

ROQ is the global leader in oval screen printing machines with 15+ years of oval-specific engineering refinement. The Oval Run descends from the original ROQ Oval platform that redefined what oval presses could do in the industry.

Print Heads (1–20)

6–10 print heads is typical. With 2 open stations per print head, fewer heads often still deliver high throughput.

Pallets (16–56)

More pallets = longer press + more simultaneous-job capability. 56-pallet configurations enable extra-wide all-over prints.

Print Area

23″×32″ (600×800mm) to 33″×35″ (850×900mm). Wider pallets = larger prints but physically longer press.

Modules & Hybrid

ROQ Hybrid digital · Flash dryers (6–26 connection ports) · ROQ FLOCK · ROQ FOIL · Laser markers · Under-head flash placement.
